Window hardware replacement

Question

Hi I need to replace all the hardware for these windows

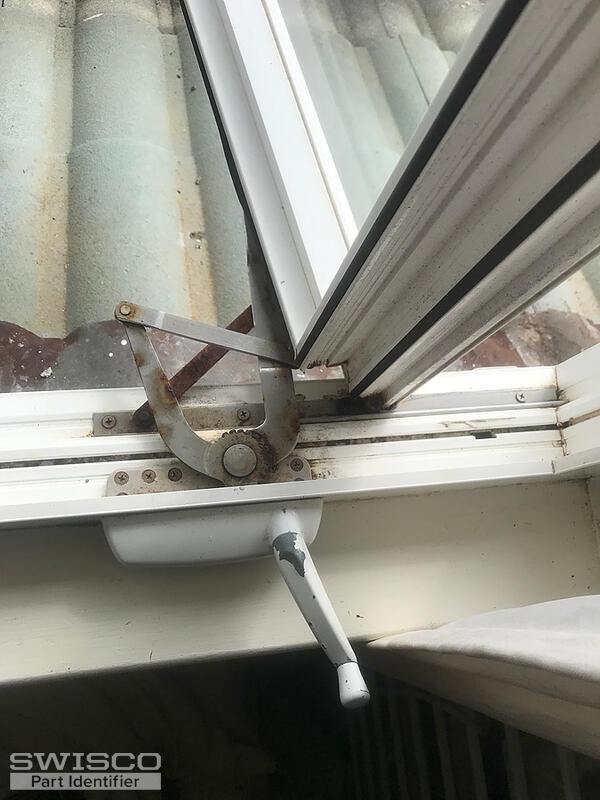

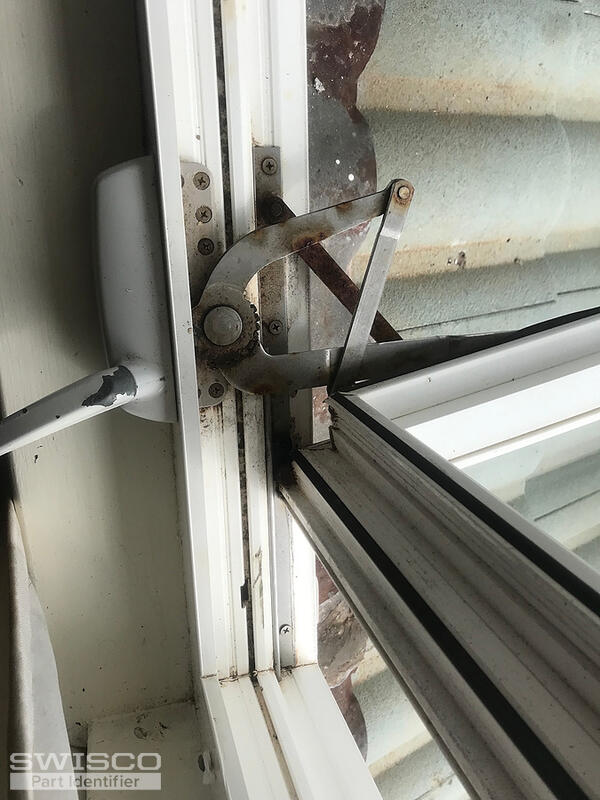

See the photos attached, thank you!

I am in Hawaii and will be ordering sets for 3 windows to start.

Best, Denma

Bob · Accepted Answer

Thanks for posting. See either the 39-253LB & 39-253RB, or the 39-438B & 49-439B. The only difference between these two sets of operators is the appendage at the end of the straight arm. See the video below for an explanation.

For new covers and handles, see either the 39-375 and 39-376, or the 39-451 and 39-452, depending on the style you prefer. For your window hinges, see if the 36-004-10 10" set matches what you have. Let me know if you have further questions.

DImensions for 36-004-10
