Window identity

A contractor from Villas nj says:
April 20, 2018

I believe this is patriot window, not 100 0/0 sure please help identify this product to order I have 57 double hung windows to service thank you I was talking with Tim on the phone please reference this email to him

Thank you Peter

Thumbnail of the uploaded file named 21728F9C-25B2-4619-AE6F-14AAC25B19CF.jpeg
Thumbnail of the uploaded file named 49987E52-D326-4DC5-8698-C9BE55DE4439.jpeg
Thumbnail of the uploaded file named 48F20627-C0BC-47D1-847E-EC5C7E9F0EEC.jpeg

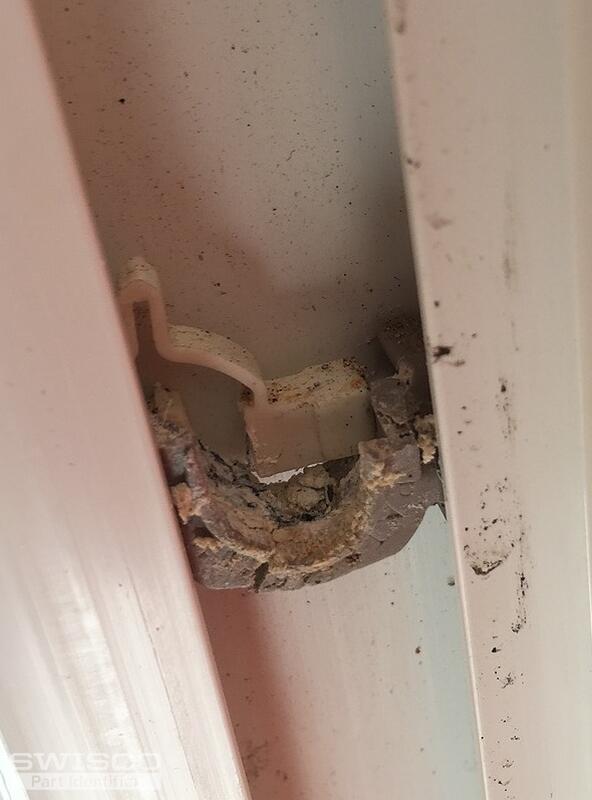

Thumbnail of the uploaded file named C06B752F-8FCF-48FA-AF24-EF572D83087C.jpeg
Profile picture of Paul
Paul from SWISCO responded:
April 25, 2018

Based on your photos, I believe our Series 795 channel balance could work for you. Keep in mind this comes with a 1-1/4" wide shoe and screws to the window frame at the top. The pivot bar looks to be our 26-360.

Unfortunately, that keeper is nowhere to be found. I've seen it a few times in the past but my research indicates that the mold is lost. I couldn't find anyone who still has this. The closest keeper is our 90-257, though I cannot guarantee it will work for you.Please compare it with your parts and see what you think.
12" Series 795 Channel Balance
12" Series 795 Channel Balance
S795-12
$12.05
Tilt Sash Pivot Bar, 2-1/2"
Tilt Sash Pivot Bar, 2-1/2"
26-360
$1.97
Face Mount Keeper, 7/16"
Face Mount Keeper, 7/16"
90-257
$1.93
