Window latch, balances, sash clips

Question

Good morning,

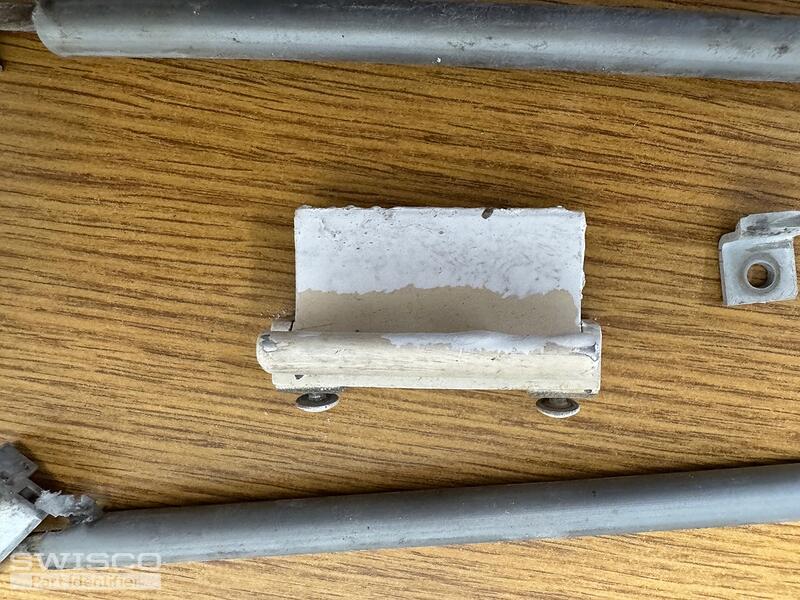

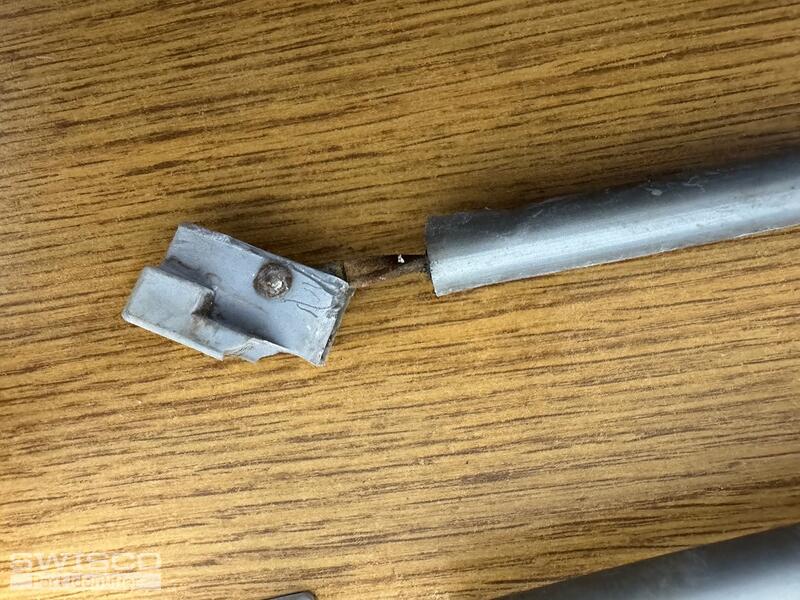

I need help identifying the attached for replacement.
3/8 tube 17 inches long
Window lock aprox 1 5/8 center to center on the screw holes Need screw too

Paul · Accepted Answer

Hello, thank you for posting,

You are showing an old Air Control window, that goes back to the 1960's. Air Control made changes on the balance system. For the bottom sash clips, they went with the 17-014 & 17-015. For the 17" balance, they used S301-17 with the 15-012 nylon shoe, that will lock into the bottom sash clips.

To attach the balance shoe to the sash, first raise the sash and with the 75-005 tool hook it to the bottom hole of the spiral and give it about three or four clockwise turns before locking the shoe to the bottom clip. We believe the other clip you are showing is the 67-029. As for the lock, take a look at the 90-012. The distance between the screw holes are 1-3/4",please recheck yours. The lock doesn't come with screws, so for the screws we recommend taking one of the original screws to your local hardware store to match it.

Compare dimensions and let us know if you have any additional questions!
