Window latch replacement

Home Owner from edgewood, nm

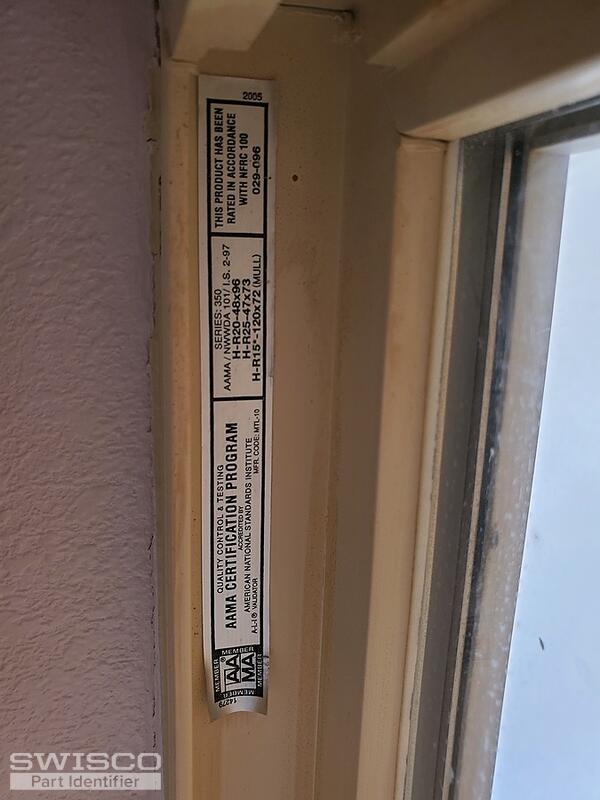

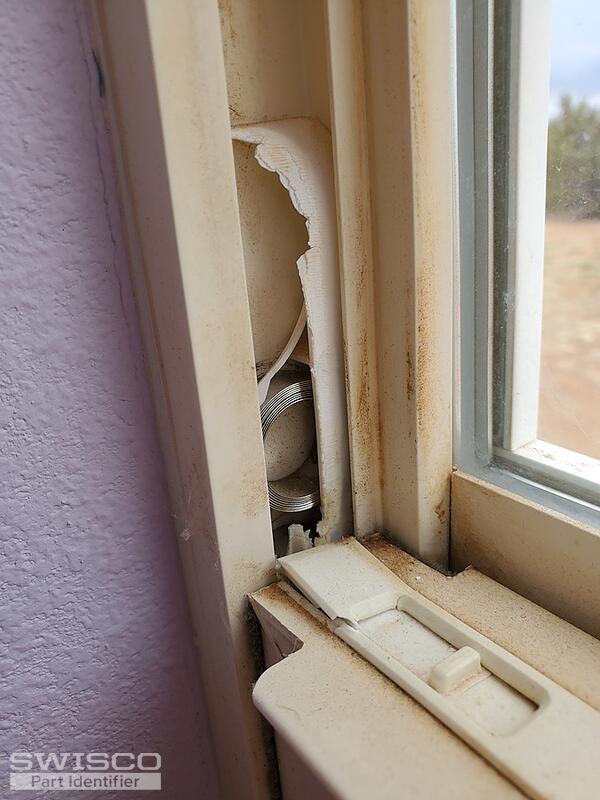

I am looking for replacement parts for the attached images. I am unable to remove them at this point due to not having anything to replace them. Please list potential parts and associated numbers so I can order. Thank you, Sean Starkweather
5 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Start by taking a look at our 26-243 and 26-244 tilt latches and compare our dimensions to yours to see if this matches what you need. As for your coil balance, I'm afraid we'll need to see the pivot shoe removed from your window to compare to our inventory. If we can identify the pivot shoe, that will tell us the coils and accessories that you'll need. Let me know if that's something you can get for us.

Home Owner from edgewood, nm

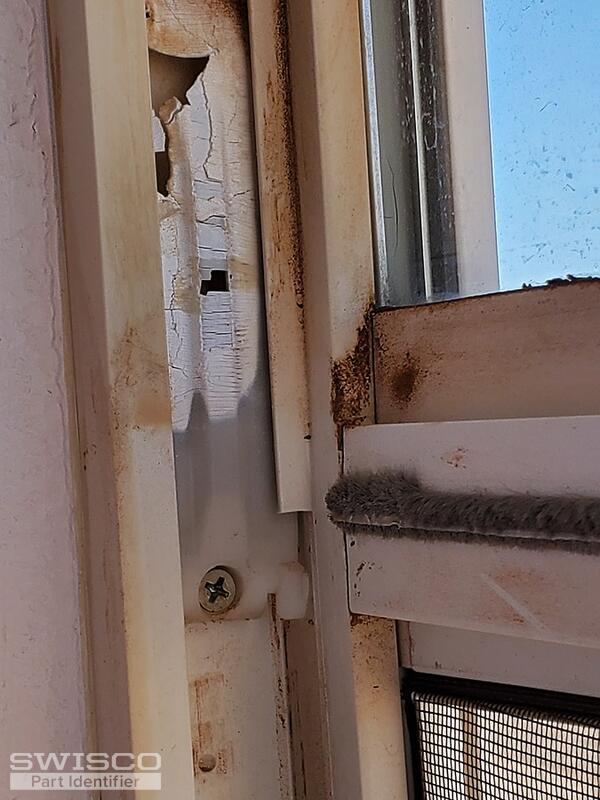

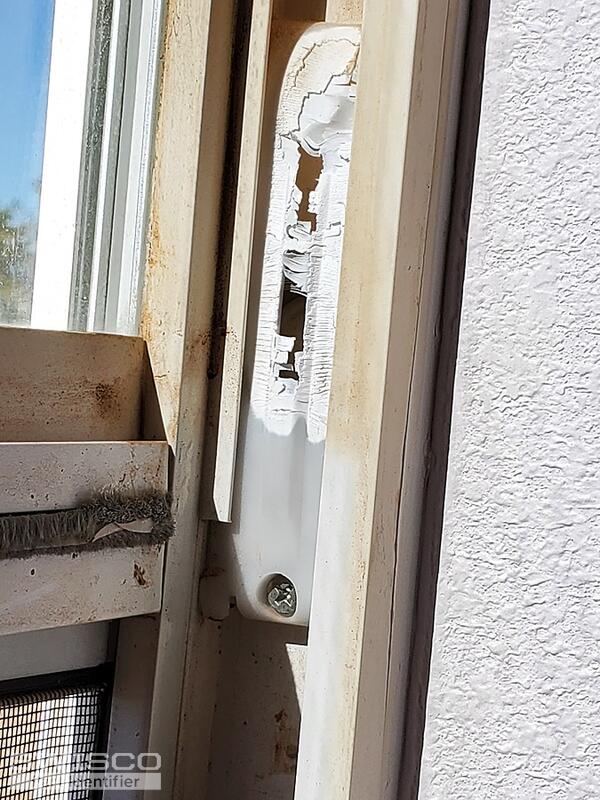

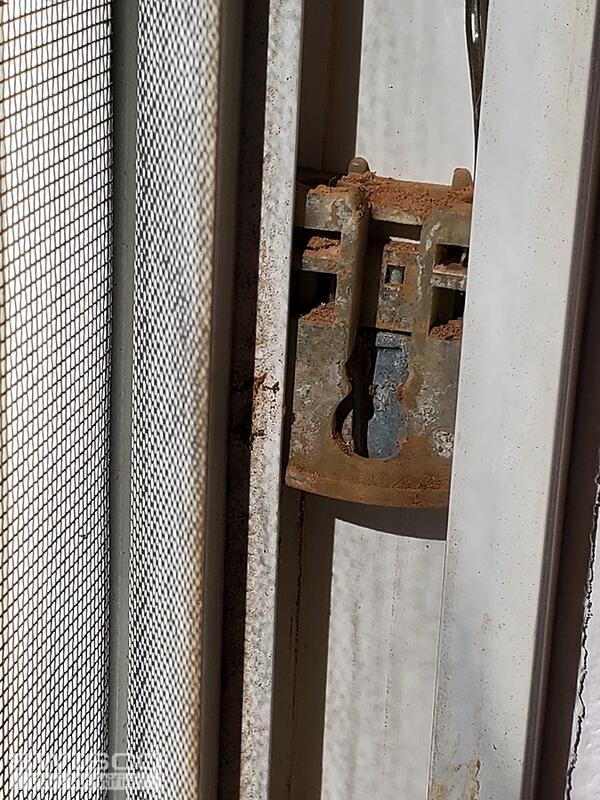

Hope this helps identify what I need. Thanks
4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

It looks like you might have our 15-199 pivot shoe, which uses the Series 160 or Series 165 coil springs depending on the width of your coils, but I can't be sure with it still installed. You'll need to remove yours from the window to see if our dimensions match up to the original hardware.

Home Owner from edgewood, nm

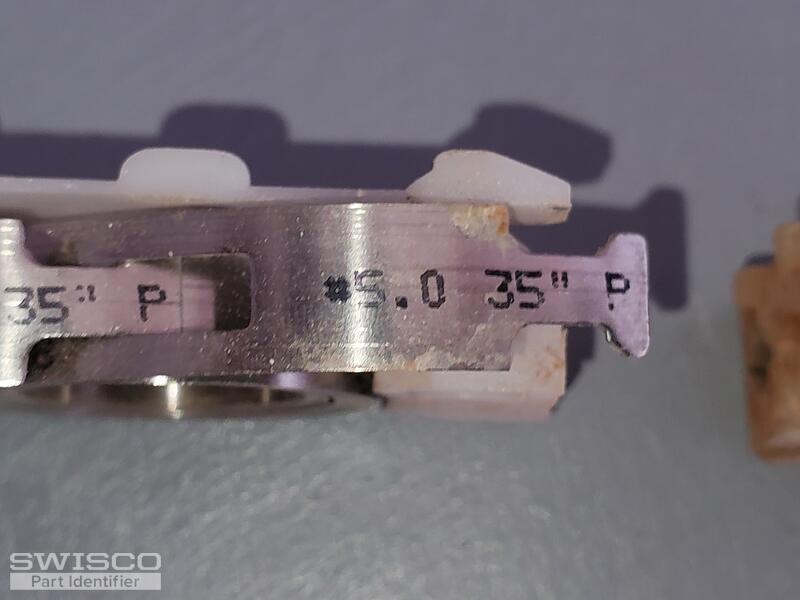

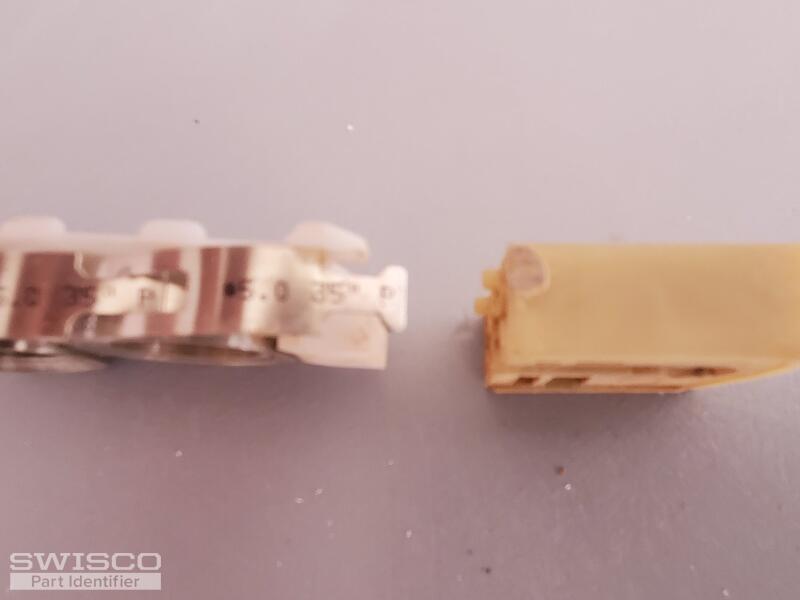

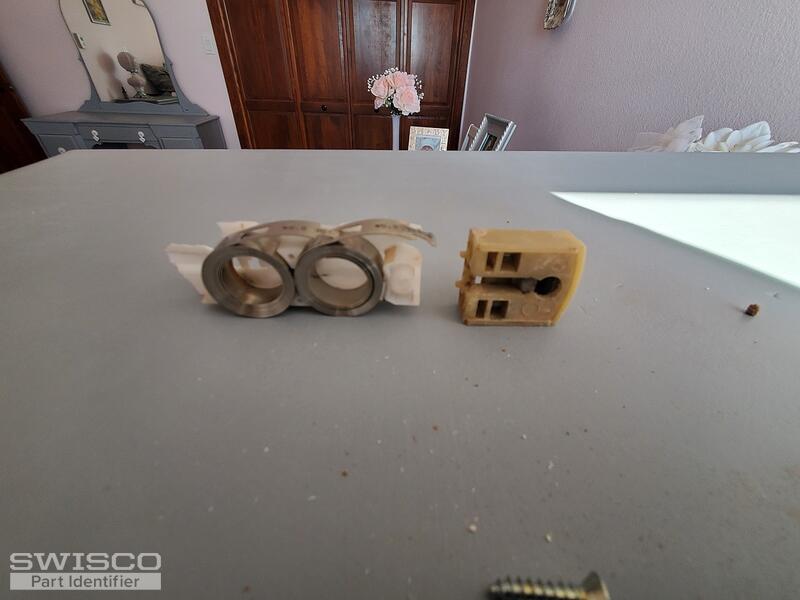

Here are photos of the pivot shoe and coil springs. Please confirm what parts I need. Thank you
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Our previous suggestion remains the same. You'll just need to compare our dimensions to your original hardware to confirm that the parts listed are what you need.
