Window lift

Landlord from Lakeland Florida

Jul 16, 2025 2:35 pm

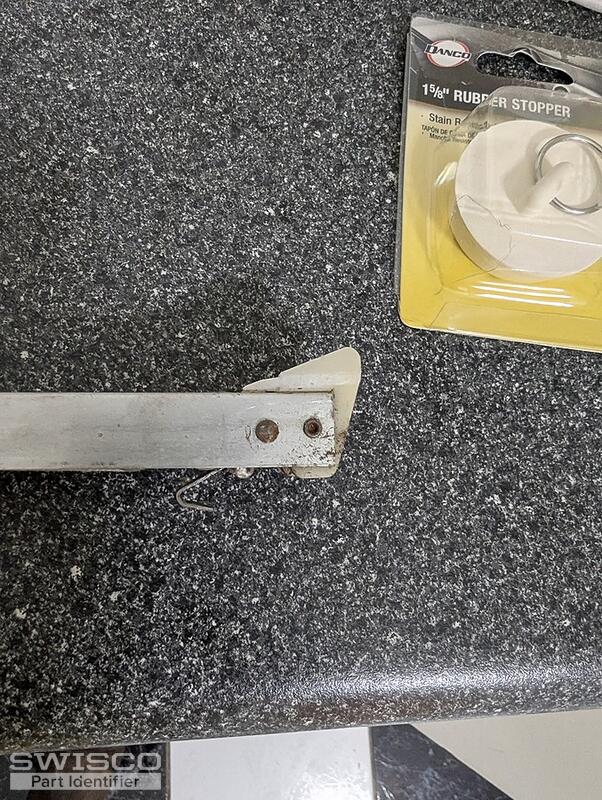

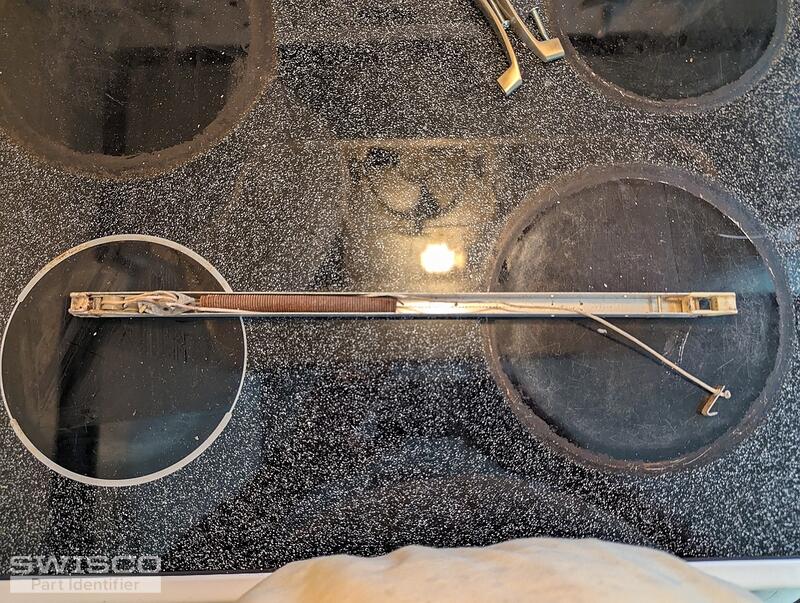

I have a lift where metal chanel is 17 inches long. The white plastic bottom is 1 1/8 wide. The metal chanel is 5/8 inch tall and 9/16 wide. There is 18c stamped on metal channel. The window has iph2-159-8 written on it.

5 user uploaded images

4 Replies

Tom from SWISCO

Jul 22, 2025 12:01 pm

Thanks for your photos. If your shoe is 1-1/8" deep then I recommend the Series 390 channel balance. This has a 19-002 top and 15-001 bottom, so as long as those match up then you should be good to go.

The only thing I'm not certain about is the length. With a stamp of 18C, the metal channel should be 19" long, not 17". Can you verify that?

Landlord from Lakeland Florida

Jul 23, 2025 3:14 pm

yes its 17 inches. I checked another larger window which was stamped 22C but 23 inches long. The wieght of the window that is 17 inches is 13 lbs.

Tom from SWISCO

Jul 24, 2025 10:11 am

Thanks for verifying! That is a bit odd but not totally unprecedented. If I had to guess, I'd say that the installers bought the wrong size balance by mistake and simply cut it down during installation. It happens from time to time.

So what I'd recommend is going with the 17" long S390-17, but with the 1630 stamp option. This carries 12 through 14 pounds, which should be perfect for a 13 pound sash weight.
