Window load balancer

Hello,

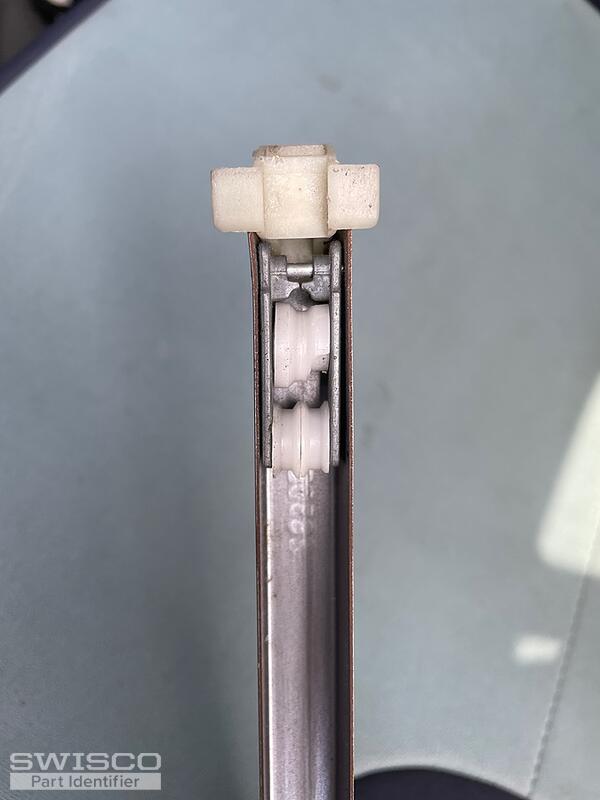

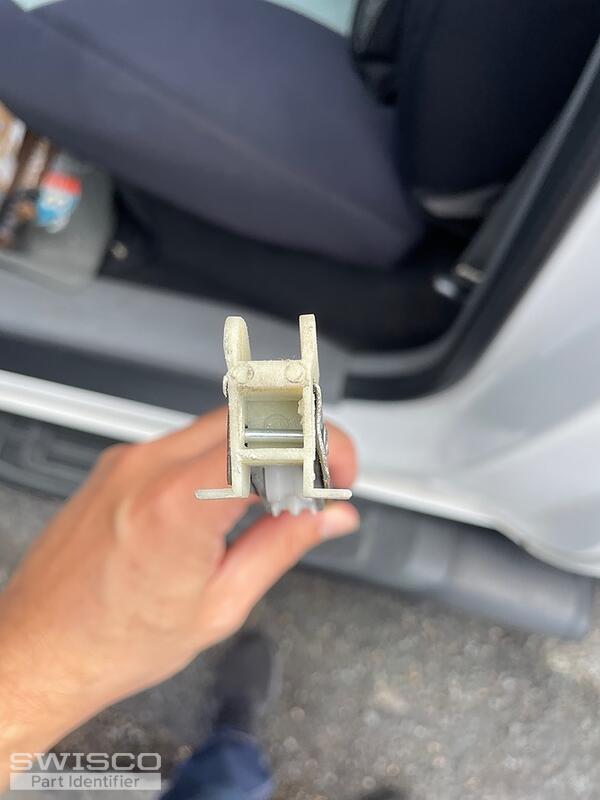

I can see that your top balance fitting has wings but I can't quite make out if the bottom fitting does as well. If you could show us a photo of the bottom fitting from another angle to confirm, that will help us narrow down your options.

As for the take-out clip, take a look and compare the specifications of the 16-002 to yours. Thank you.

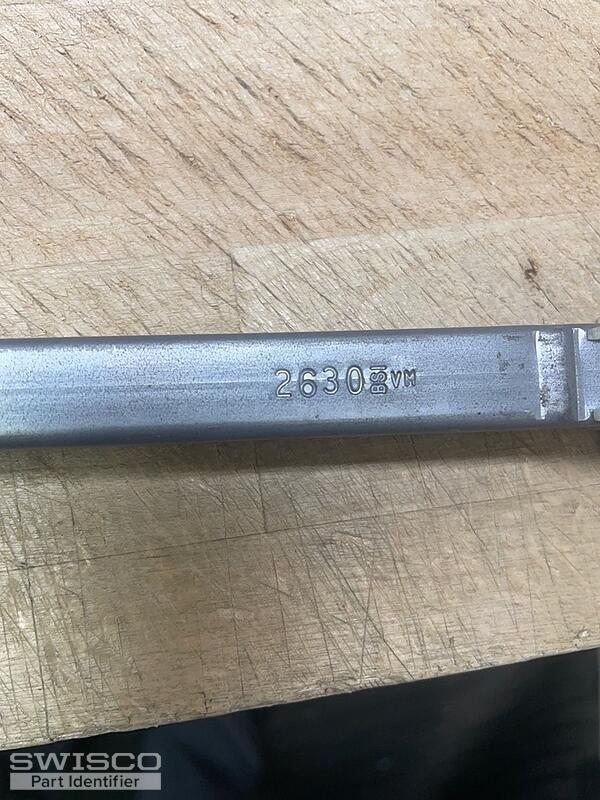

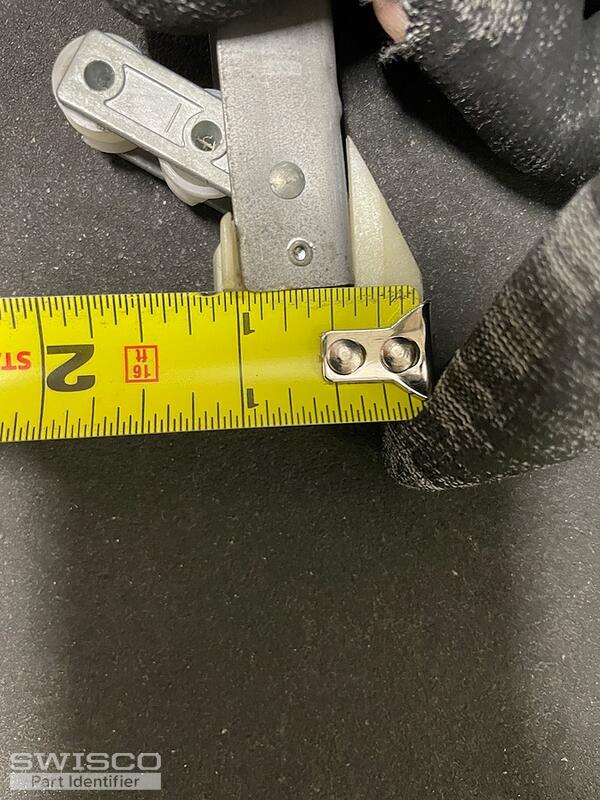

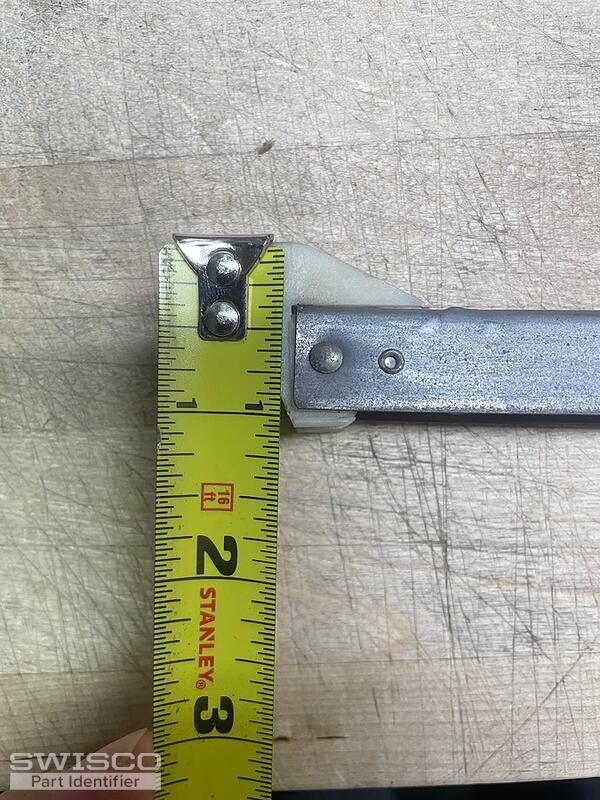

Thanks for getting back to us. With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2630 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Great, then you would go with the S385-27 channel balance with a 2630 strength option.
