Window operators

A handy person from Boston says:
Hello,

I need the full system to replace the window operators. Windows are not closing completely.

I need two; one left and one right. The pictures are only showing the window opening for the left.

Best,
Samar
Thumbnail of the uploaded file named IMG-4575.jpg
Thumbnail of the uploaded file named IMG-4576.jpg
Thumbnail of the uploaded file named IMG-4577.jpg

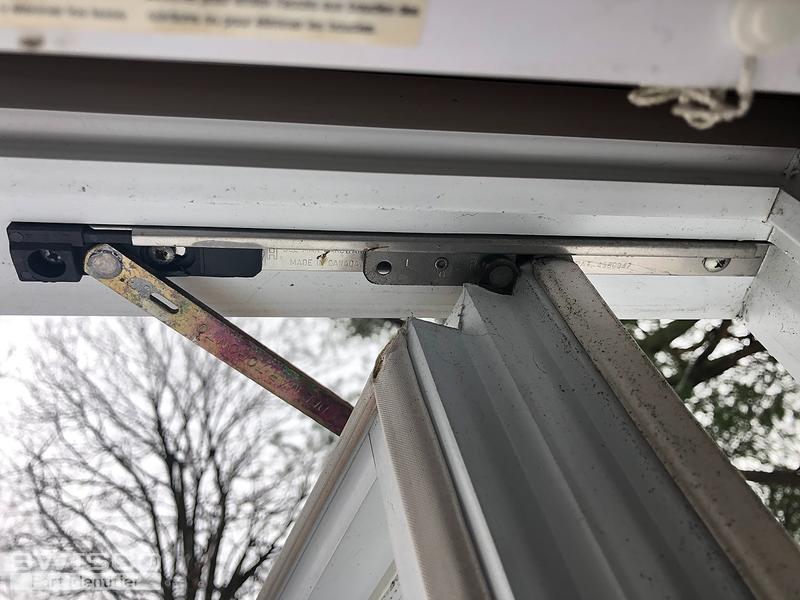

Thumbnail of the uploaded file named IMG-4578.jpg

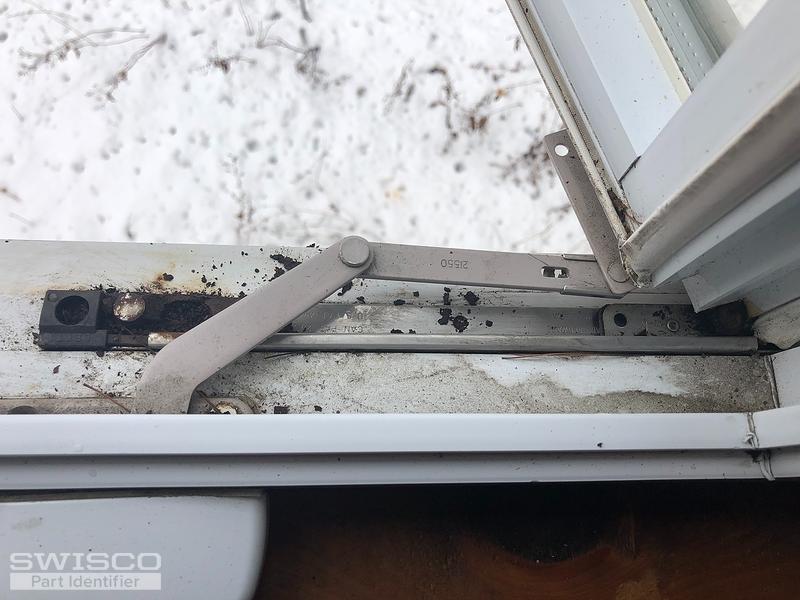

Thumbnail of the uploaded file named IMG-4579.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hey Samar. Check out our 39-317 and 39-318 Split-Arm Operators. Compare the dimensions and let me know if these match your old hardware. For a new crank handle, see our 39-114L. Note that if you remove your old operators, it might be wise to see if the window still has trouble closing. You can do this by manually pushing and pulling the window. If it still can't shut, you probably need new hinges. See our 36-004-10; compare dimensions to confirm they're what you need.

A home owner from New York says:
Looking for foldable equivalent to the split arm 39-317 and 39-318. I will provide picture of what I'm looking for. Thank you

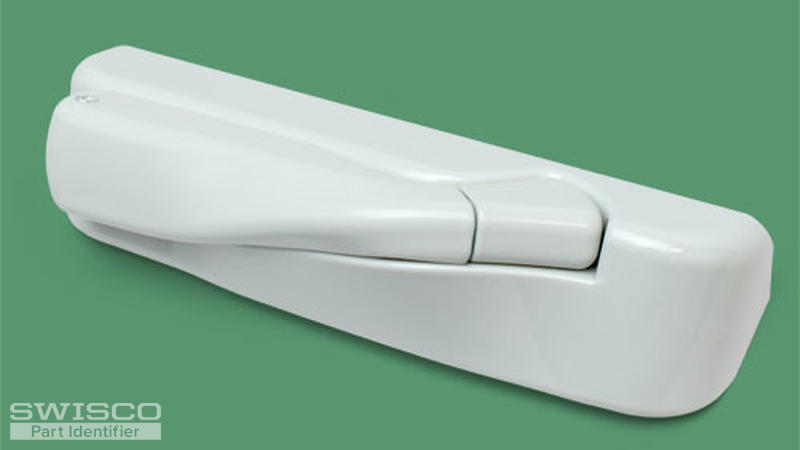

Thumbnail of the uploaded file named 39-376.jpg
Profile picture of Bob
Bob from SWISCO responded:

I am afraid the cover that comes built into the 39-137 and 39-318 is not removable. Your best option here would be the 39-205 Folding Handle, which doesn't 'nest' into a cover, but still can fold downward. Take a look and let me know what you think.
