I think this is your 11/4 T lock balance cam open shoe. Dimensions are the same as shown on the picture. Want to confirm I have the correct part. Here is a picture of my part with some identification numbers.
Also I do you have any directions on how to change these on the Windows?

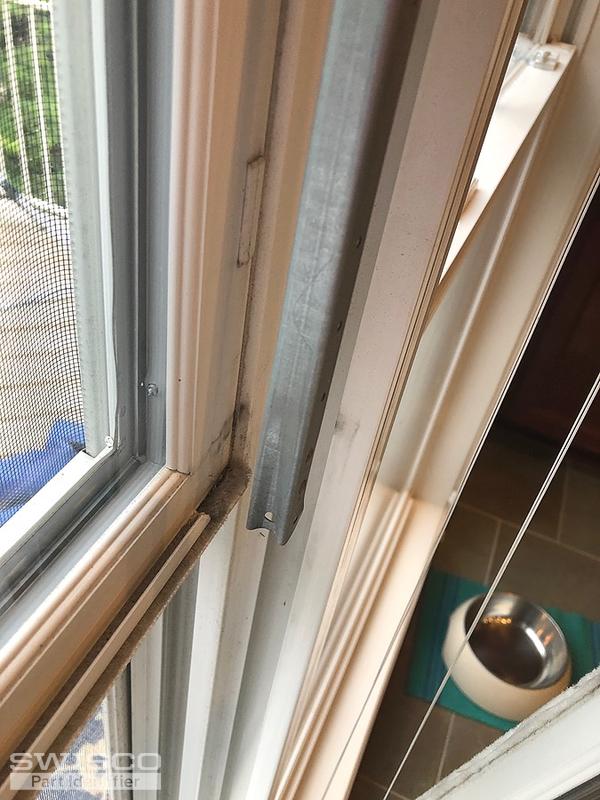

My metal bars that attach to the T Lock are also in a picture.
Thank you.
Window part. T lock balance cam open shoe
Handy Person from Virginia
May 17, 2020 6:59 pm
4 user uploaded images
5 Replies
Casey from SWISCO
May 20, 2020 7:27 am
Hello,
Unfortunately, our replacement T-lock shoes will not work in place of yours because of the groove in your shoe where it attaches to the metal balance channel. I recommend replacing your balances with our S795 channel balances. You'll just need to determine the length of your metal channel and the stamp number to choose the correct spring strength. Thank you!
Casey from SWISCO
May 21, 2020 2:58 pm
Good question. 36C is the spring strength option that you'll choose for your replacement balances but make sure to measure your metal channel to confirm the length you need.
Handy Person from Virginia
May 21, 2020 3:36 pm
ON the existing balance I see a 36C stamp in the metal. Does this mean 36" and C grade for the spring.
