Window part

A handy person from Atlanta, GA says:
May 17, 2021

Hi.

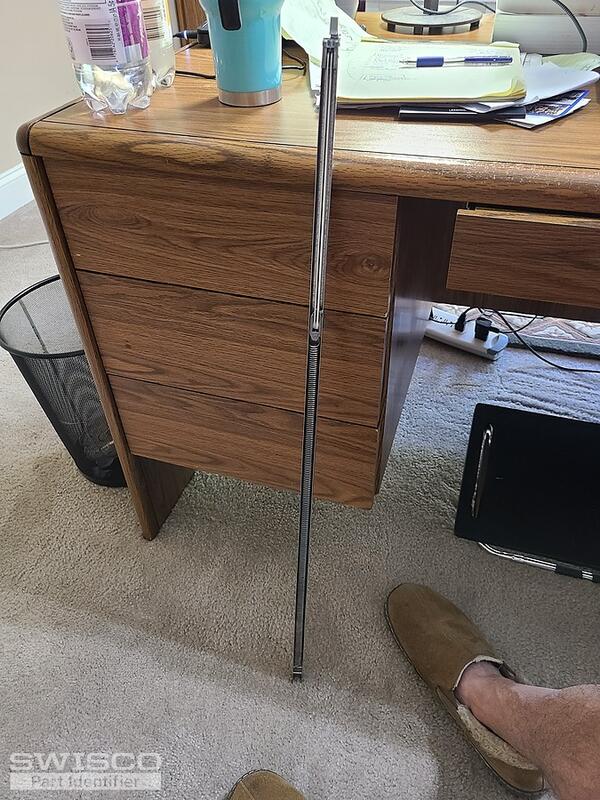

Looking to buy 2 of these. They are 33" long. Not sure of what to order.

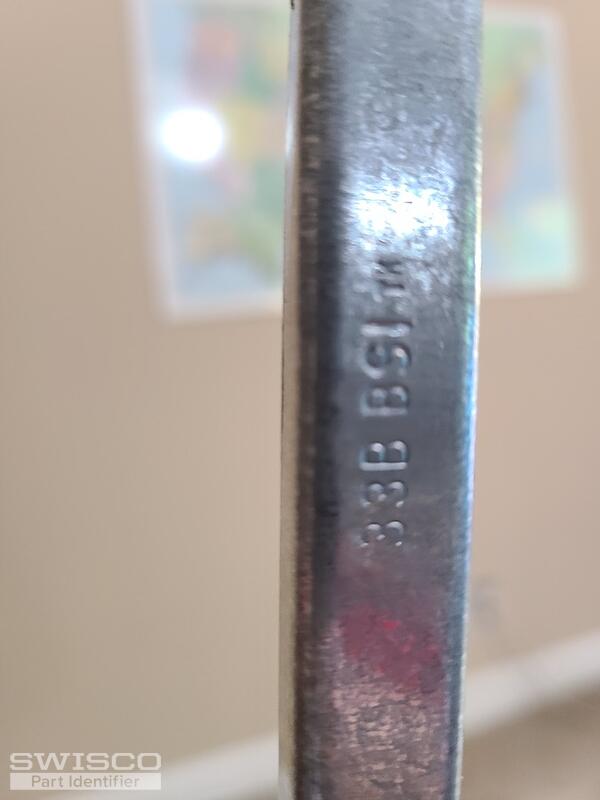

I typed in the part number 33b bsi on your site and it took me to the plastic part at the bottom that slides in...Yes... Will order them as well. But need the entire metal spring unit.

Thank you,

Rob

Thumbnail of the uploaded file named 1621256499506390118212368900243.jpg
Thumbnail of the uploaded file named 16212565331594909657254422216027.jpg
Thumbnail of the uploaded file named 16212565519651728859772448130085.jpg
Thumbnail of the uploaded file named 1621256576410575745840677955213.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 20, 2021

Hello!

The bottom fitting is missing on your 33" channel balance. May we see it so we can determine what balance series you have?

A handy person from Atlanta, GA says:
May 20, 2021
Thank you so much for responding, Paul.

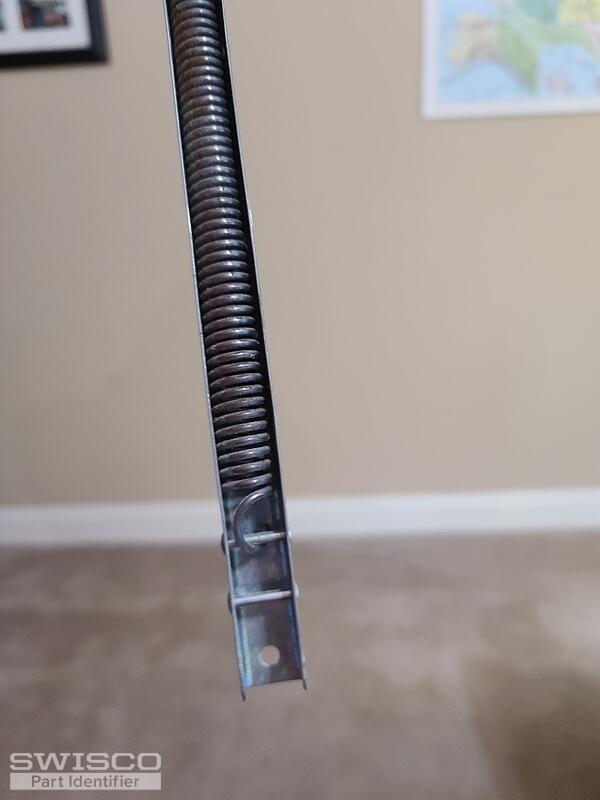

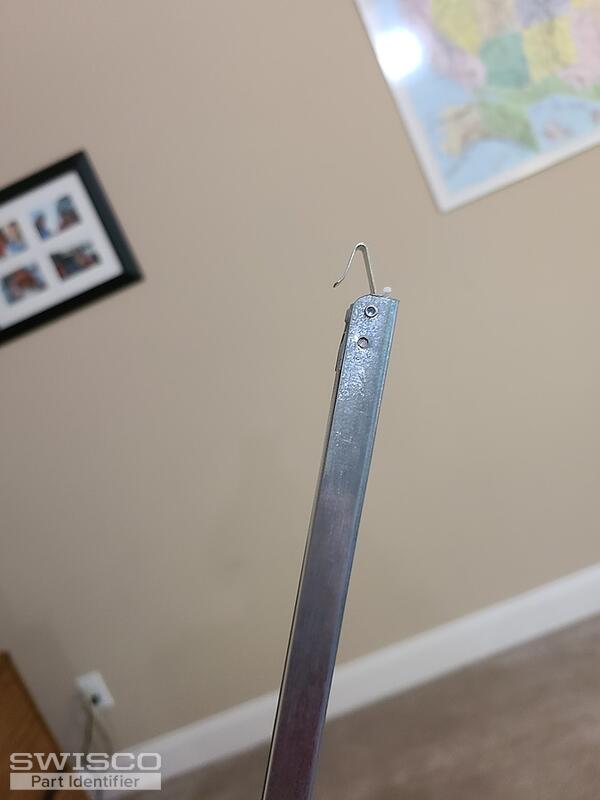

For the 33" metal component, I need the metal hook on the end of it. When online, I don't see that component. Need help with identying that to order.

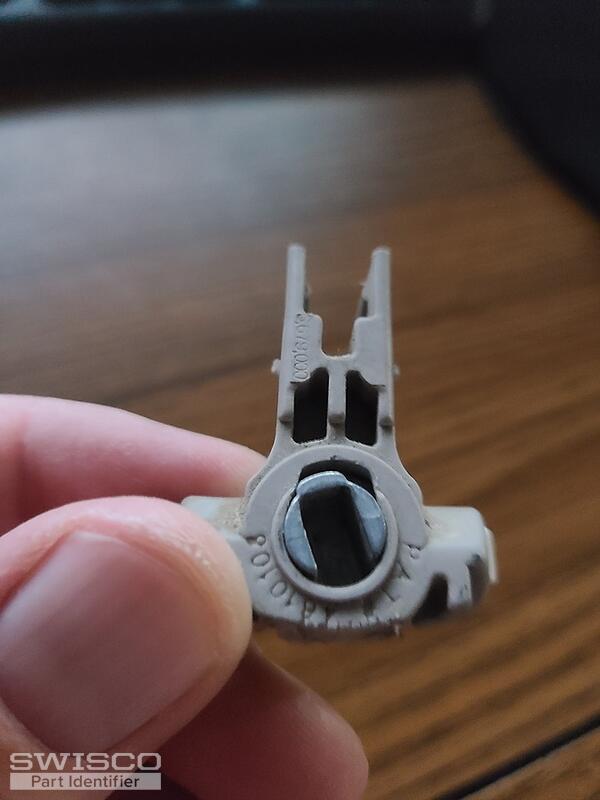

Attached is a picture of the plastic bottom fitting.
A handy person from Atlanta, GA says:
May 20, 2021
Here is a better picture. I need both the past part and the 33" metal.
Thumbnail of the uploaded file named 16215569478702399857062725292363.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 21, 2021

We can supply you with the S795-33 channel balance with a 1-1/4" wide T-lock shoe, like the one you show. Our Series 795 balance is screwed at the top instead of hooked on like yours. You'll also need the 26-200 screw plug and 33-090 screw to attach the new balance.

Balance Screw Plug
Balance Screw Plug
26-200
$0.49
33" Series 795 Channel Balance
33" Series 795 Channel Balance
S795-33
$14.52
#8 x 3/4" Philips Pan Head SS Screw
#8 x 3/4" Philips Pan Head SS Screw
33-090
$0.27
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
