Hi,

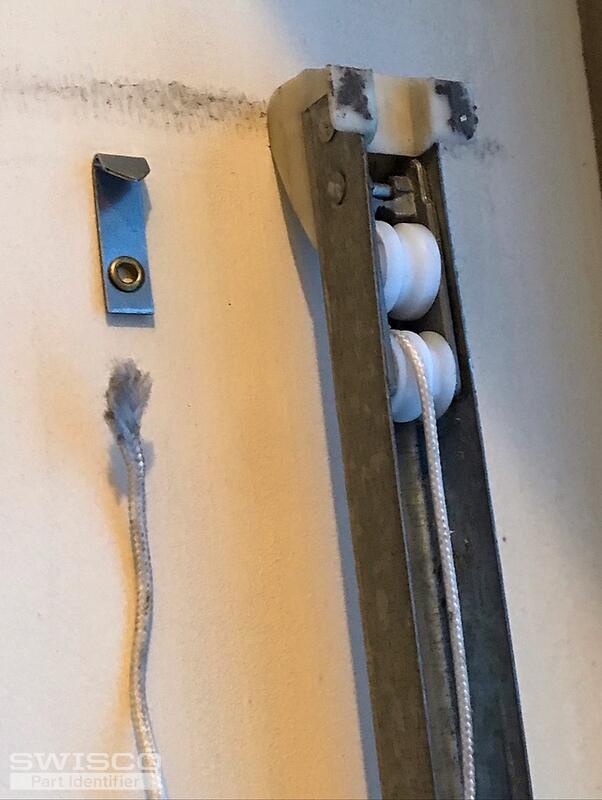

One of my window part rope snapped but I'm not sure what this part is called. It would be great if I could find out where I can get the replacement of this part.

Thanks!
Diana

4 user uploaded images

6 Replies

Casey from SWISCO

Aug 1, 2022 2:17 pm

Hello,

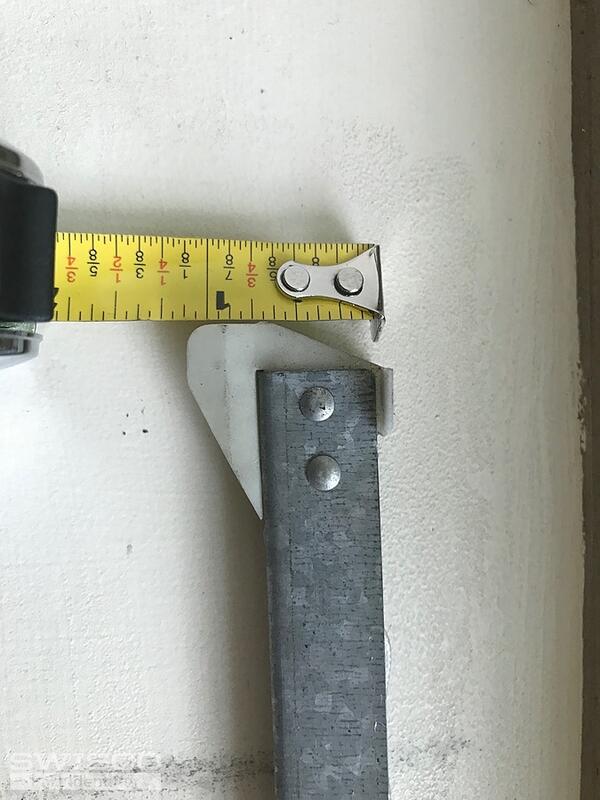

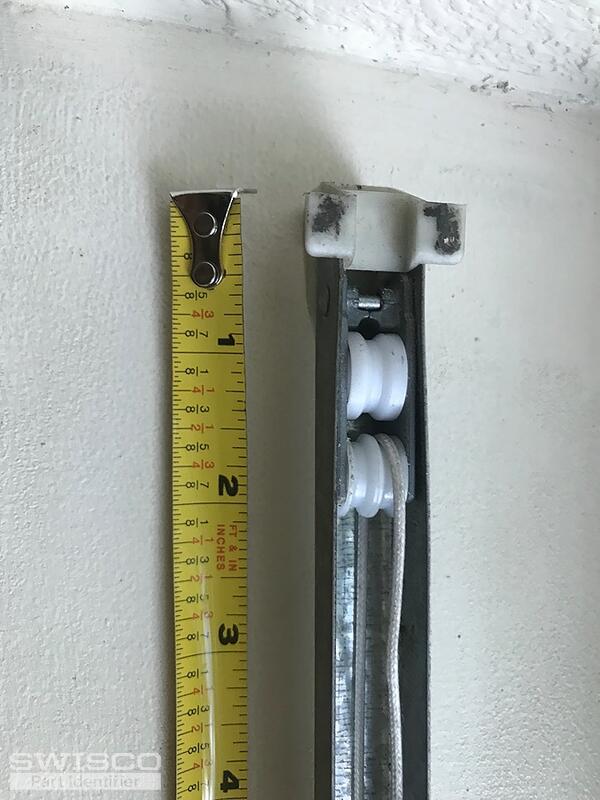

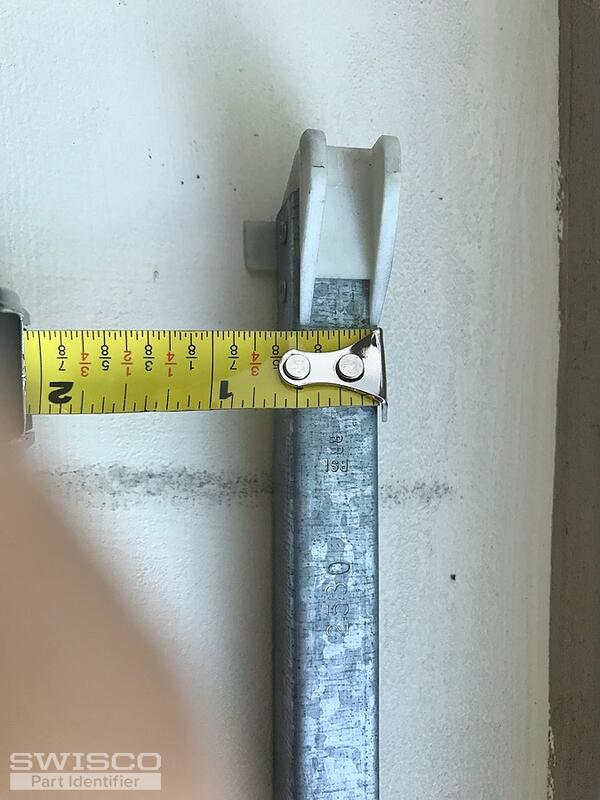

With this combination of attachments, you could have either an S380-26 or S385-26 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2530 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Oregon

Jan 7, 2023 6:55 pm

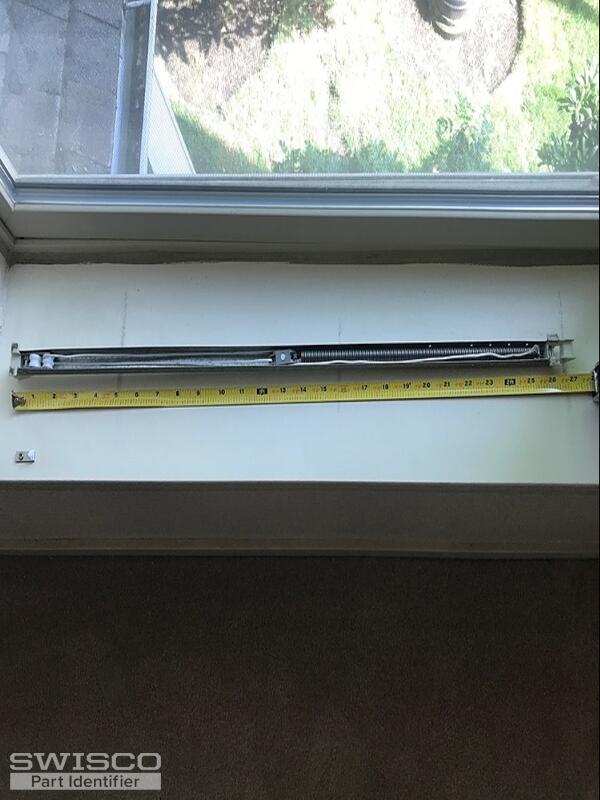

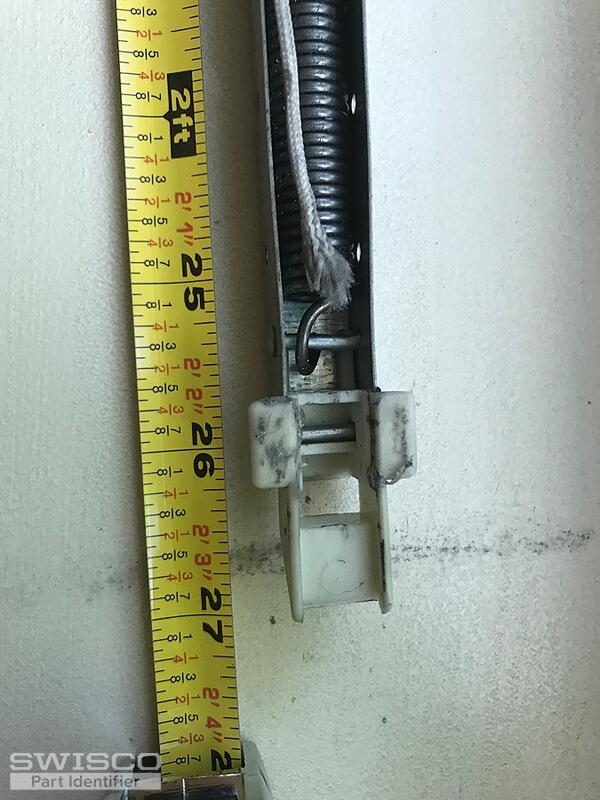

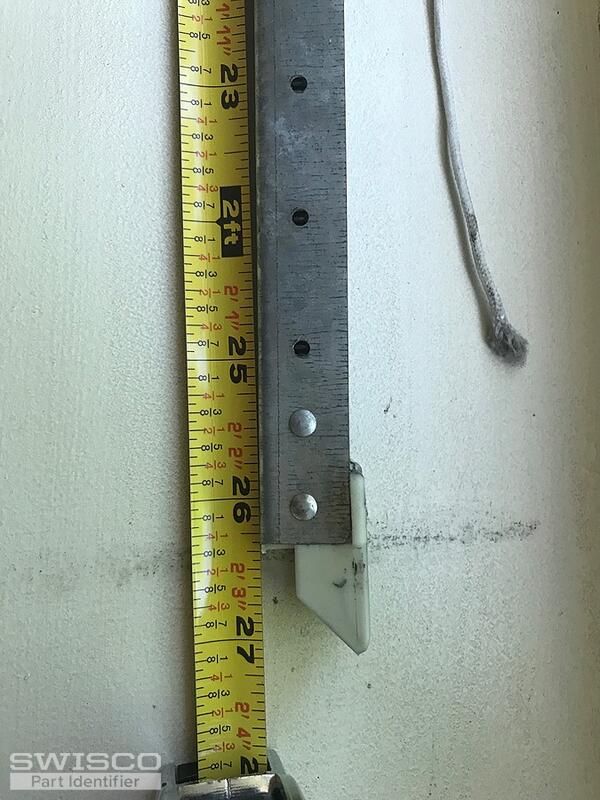

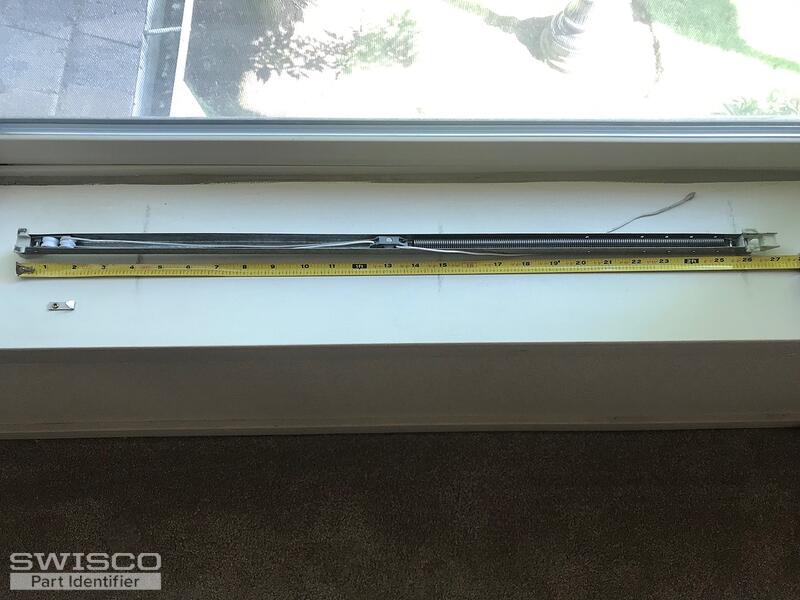

Up and down opening. The string of the part snapped so it could not hold the window up anymore. Need to change out this two parts. 27in as shown on the photo.

5 user uploaded images

Casey from SWISCO

Jan 9, 2023 2:43 pm

Hello,

It looks like you may be showing the same balance assembly from your last post in September. Please note that the length should only include the metal channel, not including the end attachments.

Take a look and compare the S380 and S385 channel balances that we recommended in our original response to yours. Thanks for posting.

Home Owner from Oregon

Jan 9, 2023 7:32 pm

Hi,
Sorry I've only seen this reply in my email now. I've ordered 2 of the parts I need!
Thank you for your help!

Casey from SWISCO

Jan 10, 2023 7:57 am

Great, please let us know if you need anything else.
