Contractor from Frederick md

Apr 4, 2026 12:23 pm

Spiral window balance attaches to this part and slides in track for window.

1 user uploaded image

7 Replies

Bob from SWISCO

Apr 6, 2026 1:13 am

Hey there. This is called a pivot shoe. Can you tell us the width and thickness of this shoe? That's the best way of narrowing down what you seek.

Contractor from Frederick md

Apr 6, 2026 7:23 am

Hi and thank you for responding back.

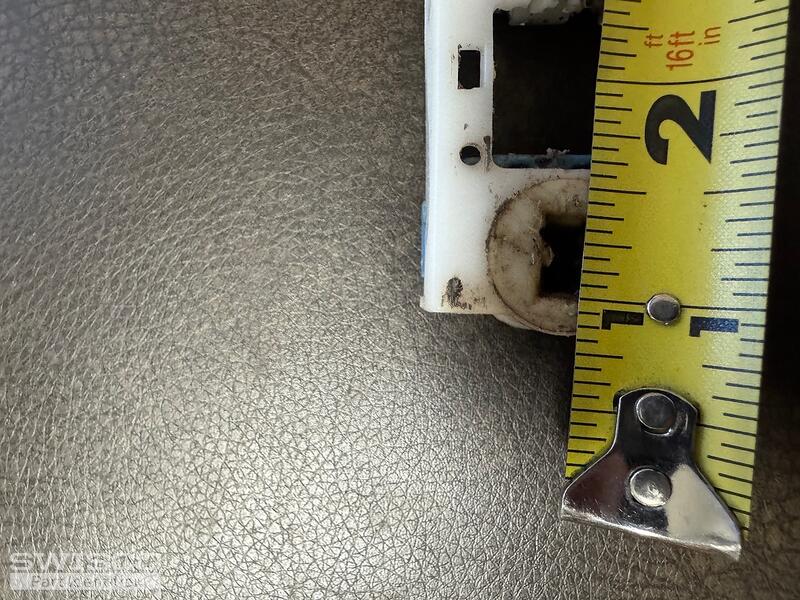

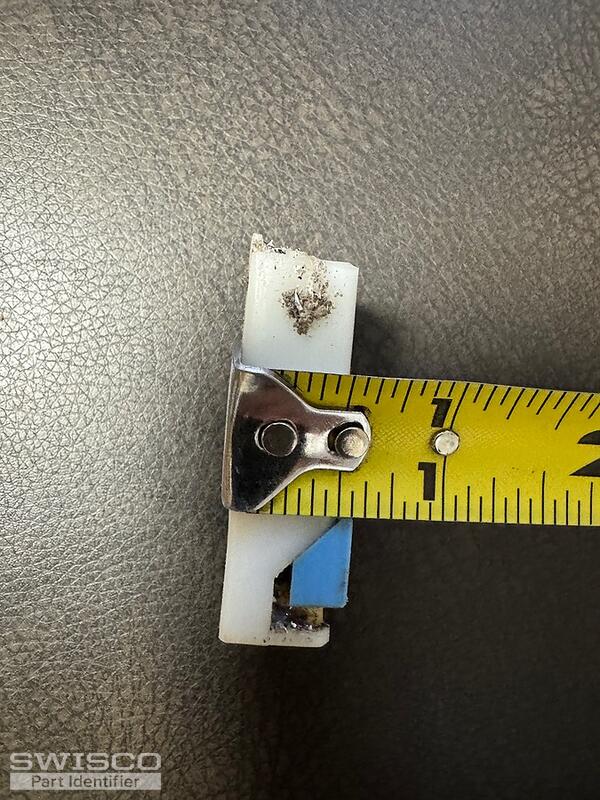

It is 1 1/4" wide
1/2" thick
2" tall
where the window sash goes into the pivot part is 3/8" wide
I sent pictures of the measurements attached.
Thank you for your help.

4 user uploaded images

Contractor from Frederick md

Apr 6, 2026 8:45 am

Hi did you get my response to your question about the size and the pictures that were attached? If not I can resend them.

Bob from SWISCO

Apr 6, 2026 3:26 pm

Thanks for the measurements. Those dimensions match our 15-046 Pivot Shoe. Take a look and see what you think!

Alternate image for 15-046

Contractor from Frederick md

Apr 6, 2026 4:10 pm

It looks close but the pivot part for the window on the one you suggested is 5/16" wide and the one I have is more like 3/8" wide as shown in the picture I sent. Do you have one that is 3/8" at that pivot point? The other measurements match up to the part you suggested. Thanks again for your help.

Bob from SWISCO

Apr 8, 2026 2:55 pm

Thanks for your patience. We don't have another version of this shoe with a different sized cam. I suspect the it won't be an issue--but to be safe, can you show me the pivot bar that works with this shoe, preferably removed from the window if possible? If I can identify the pivot bar and confirm it works with the 15-046, then you should be good to go.
