Window part assistance

A quick learner says:
I'm not sure what this part is called but I need to order left and right replacements.
Thumbnail of the uploaded file named A9DCA559-5767-48BF-AF23-8F09C65971AB.jpeg
Thumbnail of the uploaded file named 5A7981F4-F60E-46BF-BAC8-09DFF37AA065.jpeg
Thumbnail of the uploaded file named 7A057394-498F-49AC-898D-C6AD3ACEA388.jpeg
Thumbnail of the uploaded file named 5C922E61-2849-44F1-B945-2A018048B590.jpeg
Profile picture of Tom
Tom from SWISCO responded:

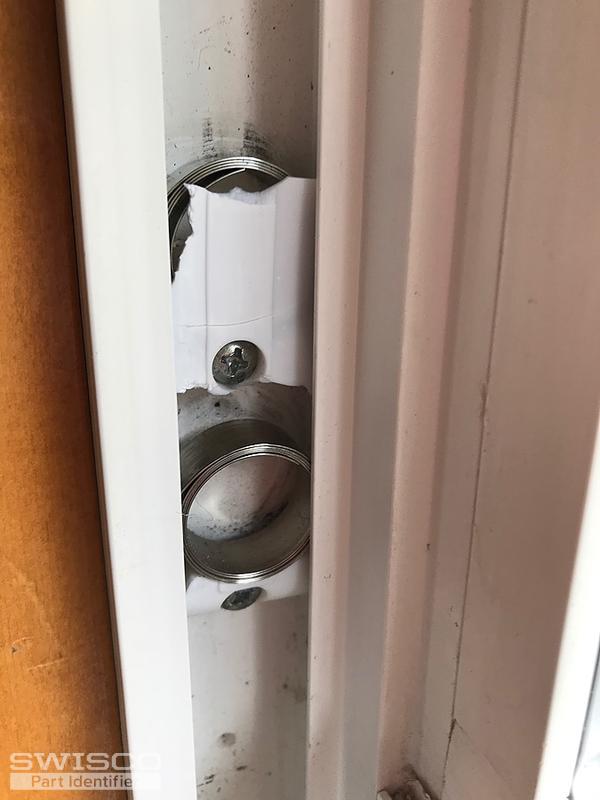

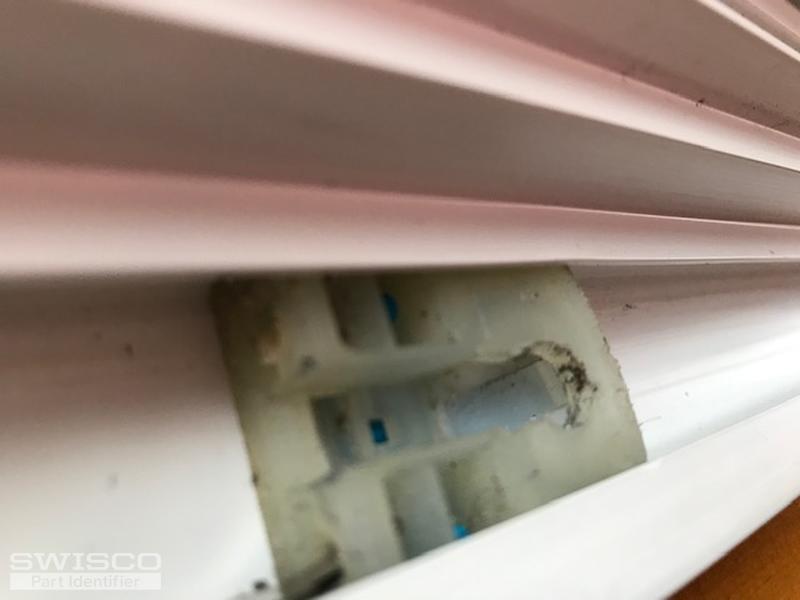

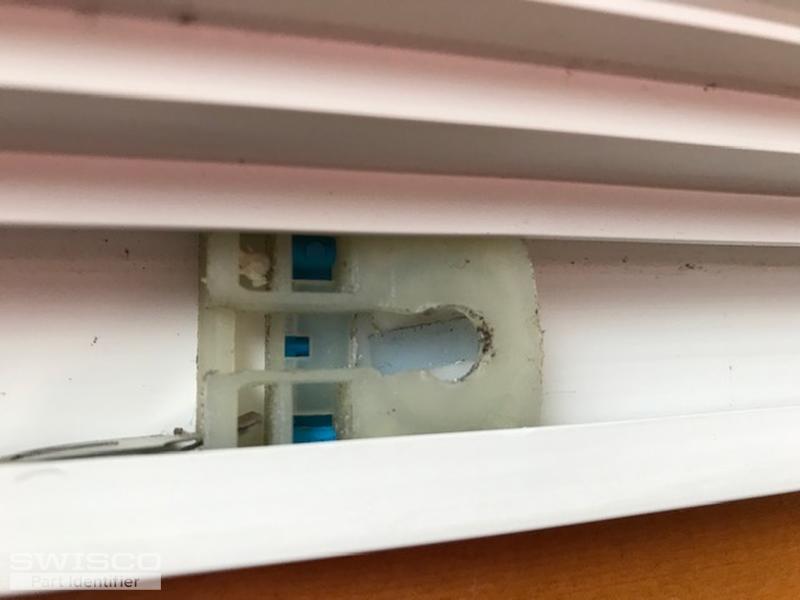

This is called a coil balance. It looks like you need new springs and a new cover. We can help, but I will also need to see a picture of the pivot shoe; this is a square or rectangular piece of plastic that the spring screw to; it should be below what you're showing me now. Please also tell me how thick the spring is.

A quick learner says:

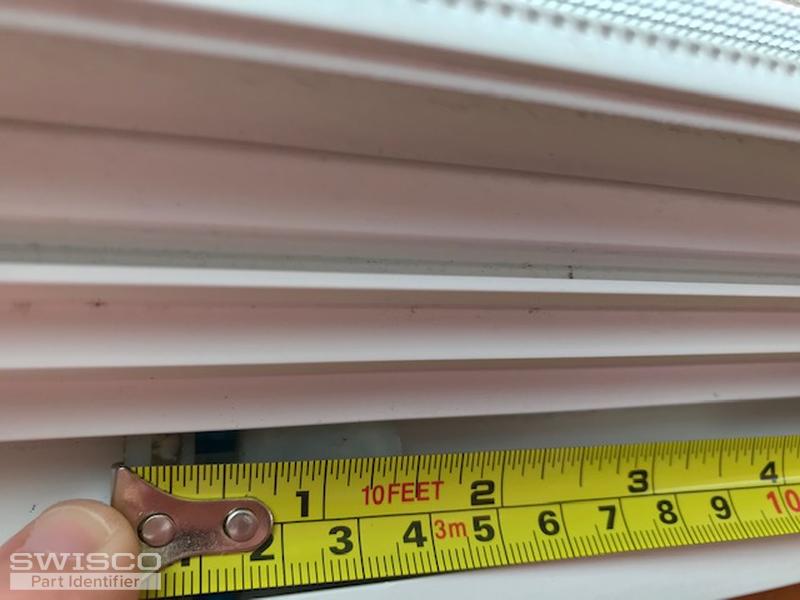

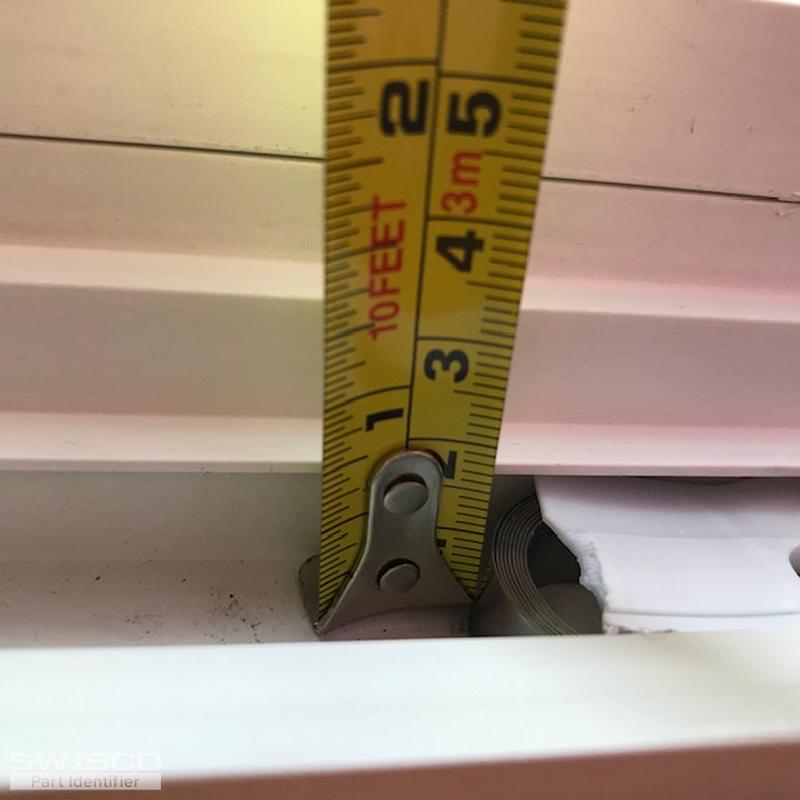

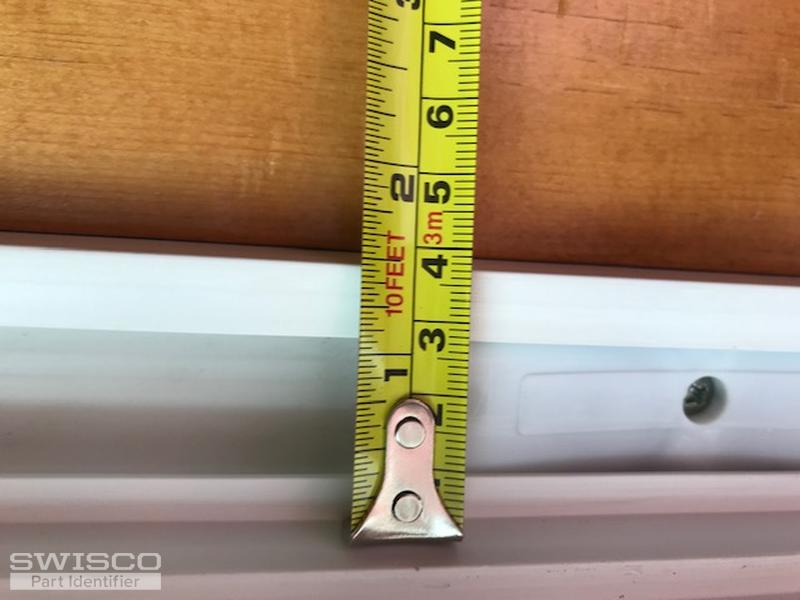

Hi. I hope these photos help identify the coil balance needed. The spring is 3/8". Thank you.
Thumbnail of the uploaded file named IMG_0805.jpg
Thumbnail of the uploaded file named IMG_0802.jpg
Thumbnail of the uploaded file named IMG_0800.jpg
Thumbnail of the uploaded file named IMG_0796.jpg
Thumbnail of the uploaded file named IMG_0795.jpg
Profile picture of Tom
Tom from SWISCO responded:

Perfect, thank you! Since your spring is 3/8" thick, and based on the style of the shoe you have here, I recommend the Series 165. You will need the stamp printed on the old spring to choose the best option.

I also recommend the 15-204 cover. This is designed to hold two Series 165 springs.

A quick learner says:
Tom I appreciate your prompt response and assistance! I'm a fan! Swisco is awesome!

Patti
Profile picture of Tom
Tom from SWISCO responded:

Thank you! You're very kind to say so. Please let me know if you ever had any other questions. We're always here to help.
