Window parts

Contractor from PA
I'm looking for window parts
4 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hey there!

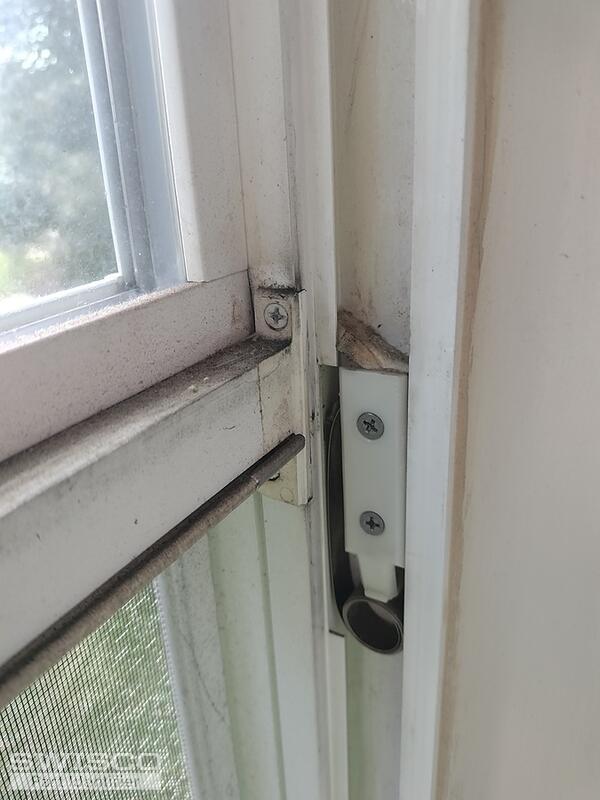

Thanks for reaching out to us. The lock reminds me of the 38-208 and 38-209 sash locks which measure 2-1/4" on the installation hole centers. As for the other parts, take a look at the 15-181 double support and 26-243 and 26-244 tilt latches. Review the specifications and see if they match what you're searching for.

Contractor from PA
Great I double checked everything and everything seems to be the right parts from the pictures you sent me but I would also need the window lock keeper and balance spools and coils
Emily
Emily from SWISCO
SWISCO
Expert

We've seen the 90-308 and 90-309 locks used with the 90-307 keeper but this appears to be different from yours. Would it be possible for us to see it removed from the window? Can you also write out the installation hole center spacing?

The 15-181 is used with the 15-180 balance shoe and Series 190 coil springs. You'll have to check the band of the spring for a weight code. If there isn't one, you will have to divide the sash weight by the total number of springs to determine the proper weights.

Contractor from PA

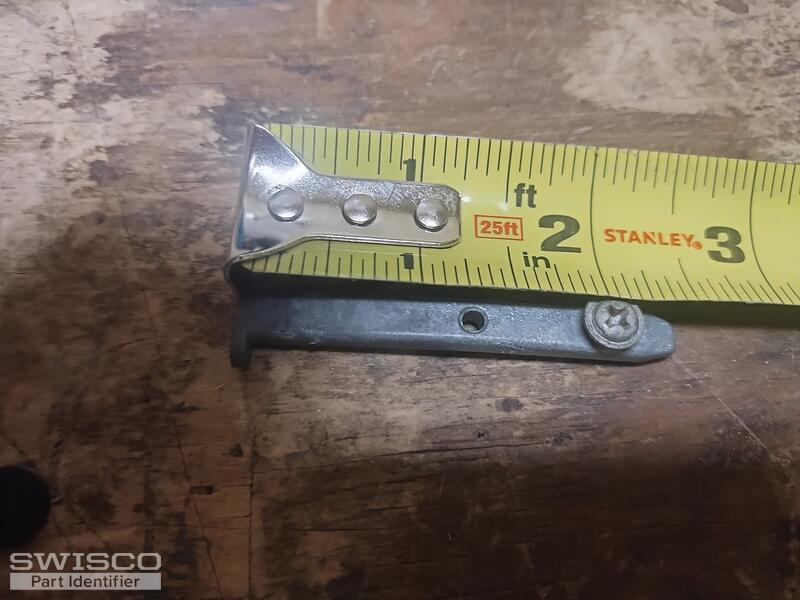

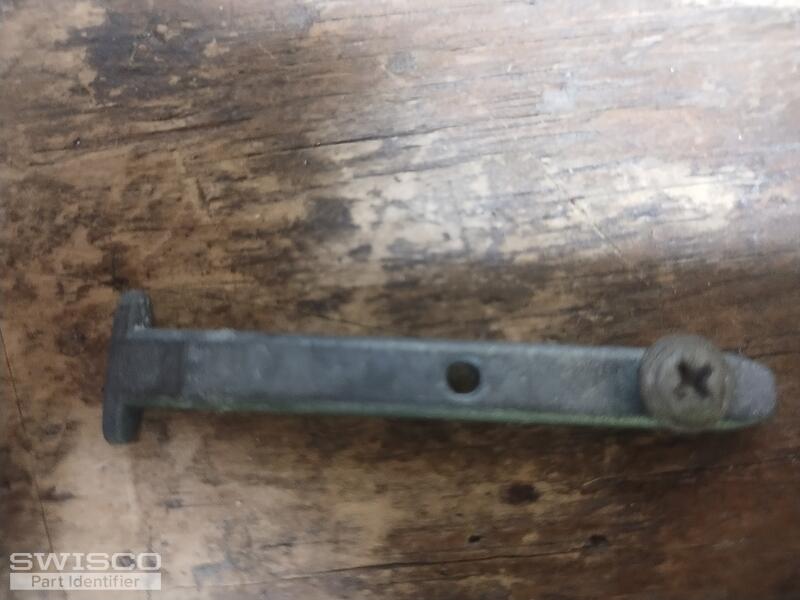

I also need this part of the pivot point that goes into the coil balance show
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

We don't sell this pivot bar. You could consider the 26-040 though. Take a look at the specifications and see if one of the installation holes matches up with one of yours.

Alternate image for 26-040
Alternate image for 26-040
