A quick learner from Fernandina Beach, Fl says:

January 5, 2021

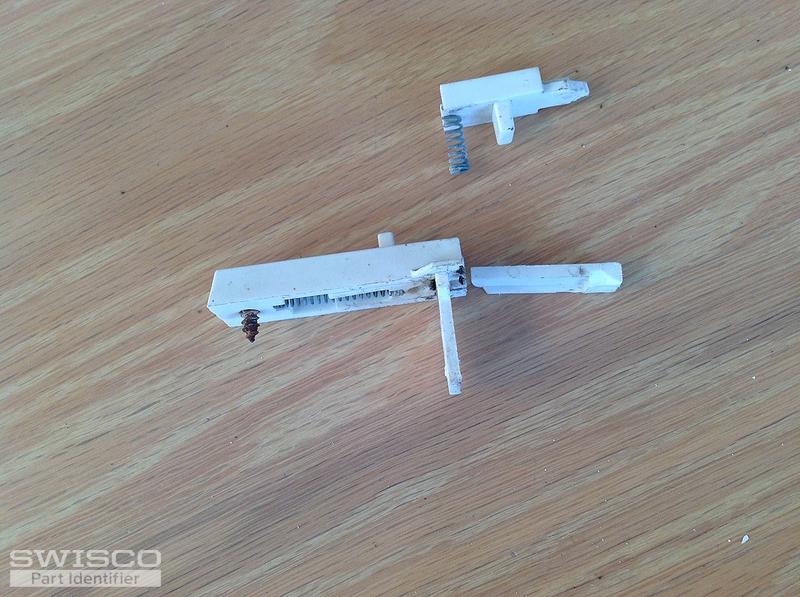

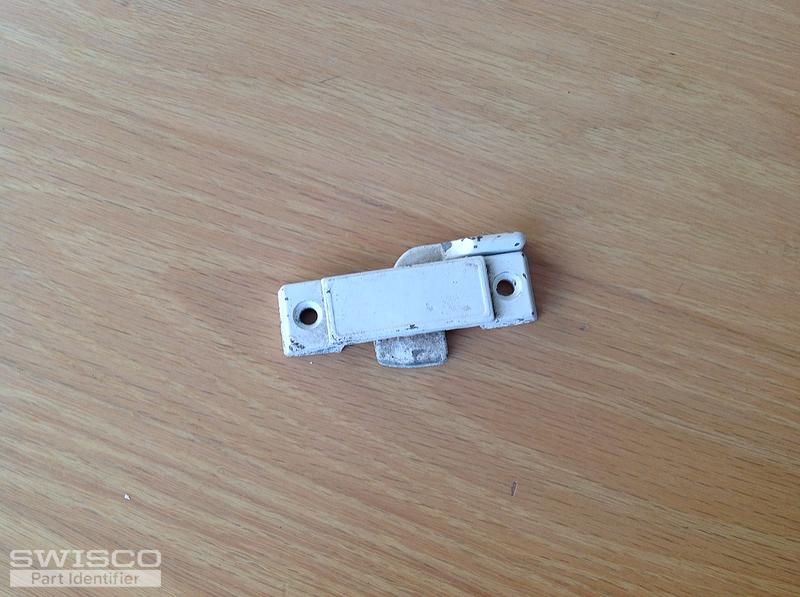

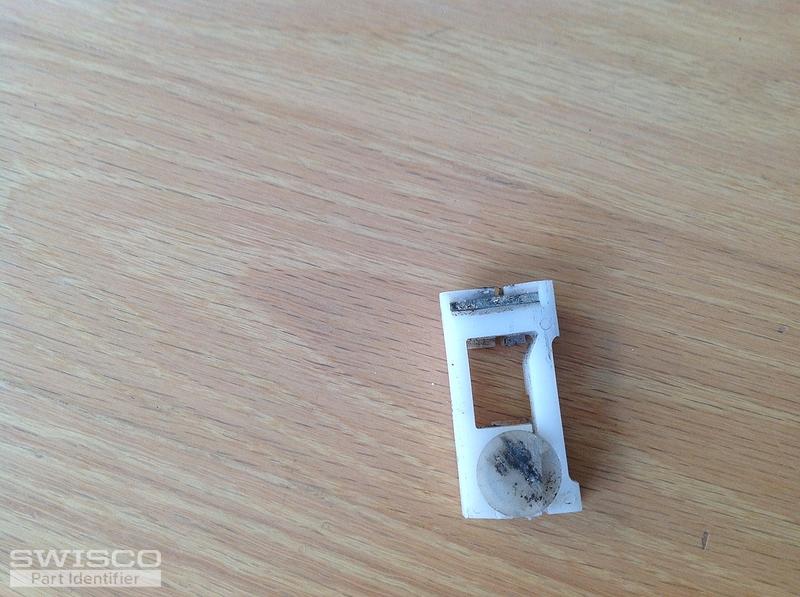

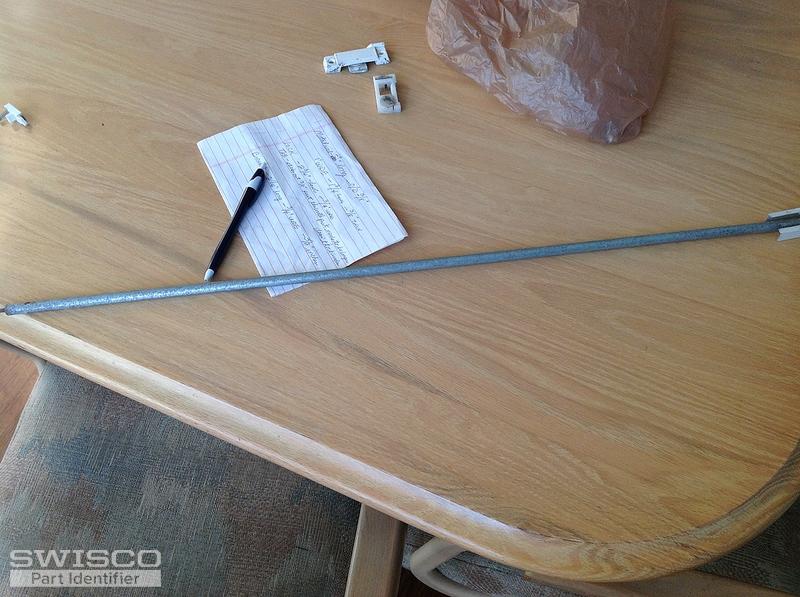

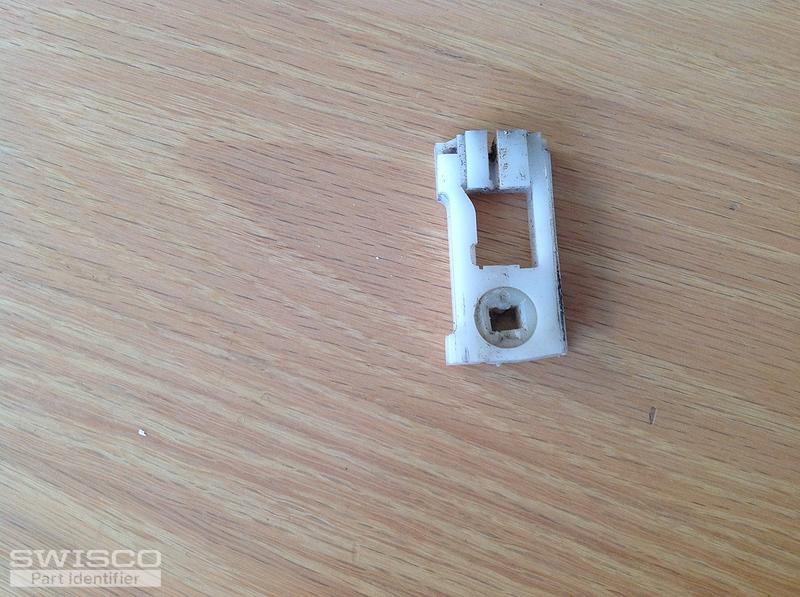

Attached are some pictures for a window I need help on parts. They are for a spiral balance and the metal rod is 29 inches in length and 3/8 inches in diameter. The bracket that the spiral balance fasteners to is 1 inch wide, 1 3/4 inches long and 3/8 inches thick. The locking mechanism is 2 3/4 inches long and 3/4 inches wide. However the tab that actually locks the window is to short because we can't lock the widow the tab sticks out 3/8 inches past the width of the locking mechanism but needs to be longer. Lastly the bracket that hold the window in place on both sides is 2 1/4 inches long, 3/4 inches wide and with the tab attached its 3 1/2 inches long. There is another piece along with that bracket that I don't know the purpose it serves. Thanks

Thumbnail of the uploaded file named image.jpeg

Casey from SWISCO responded:

January 6, 2021

Hello, thank you for writing in. In regards to your window lock, please see our 90-009 . Please review its dimensions to see if this might be a better fit for you. For your spiral balance and pivot shoe, take a look at our S900-29 and 15-045 . Finally, the last part you show appears to be a corner tilt latch, such as our 26-351 or 26-089P . Look them over and let me know what you think.

Window Lock, 2-1/4"

90-009

$2.32

29" Series 900 Spiral Balance

S900-29

$9.15

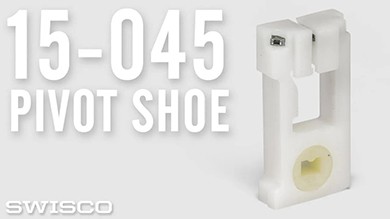

Pivot Shoe, 3/8" Thick

15-045

$1.85

Better-Bilt Window Latch, Pair

26-351

$6.52

Keller Tilt Window Latch Pair, White

26-089P

$4.47

How to replace a tilt window spiral balance.

VIDEO

WATCH >

How to Identify a Replacement Spiral Balance

VIDEO

WATCH >

How to Remove a Pivot Shoe (Cutout Method)

VIDEO

WATCH >

Swisco's 15-045 Pivot Lock Shoe

VIDEO

WATCH >

How to remove window pivot shoes

VIDEO

WATCH >

Anatomy of a tilt window

VIDEO

WATCH >

How To Choose the Proper Spiral Balance Tip Color

GUIDE

READ >

How to adjust a spiral balance on a tilt window

GUIDE

READ >
