Window parts

A home owner from Brooklyn says:
September 28, 2021

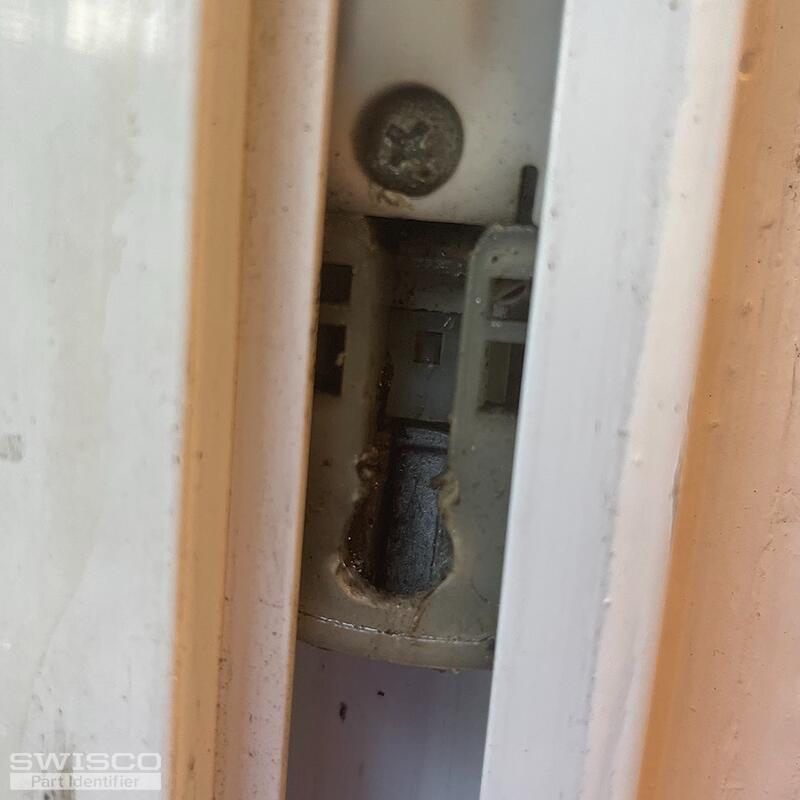

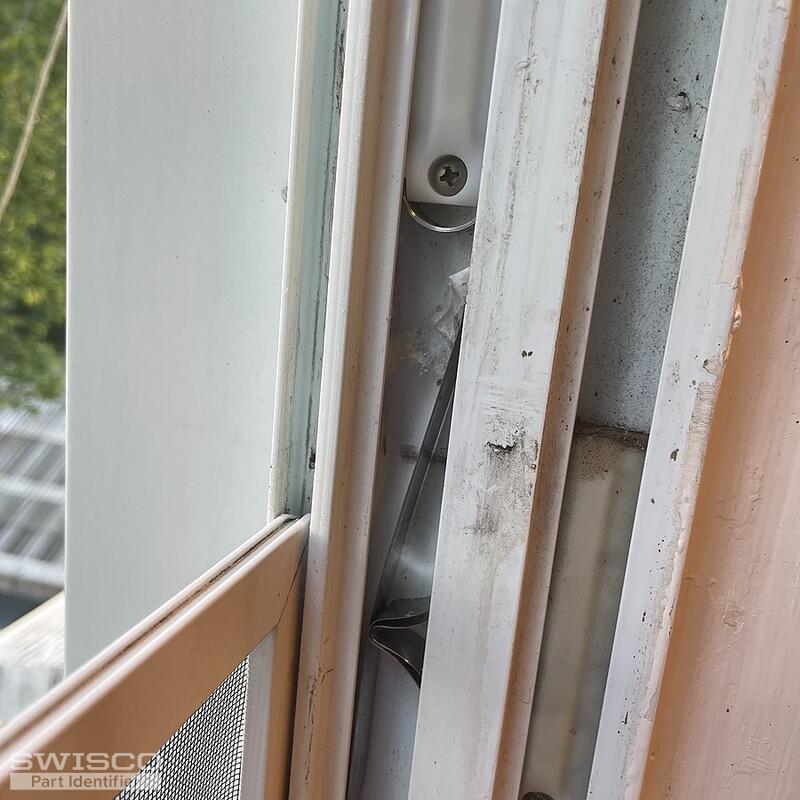

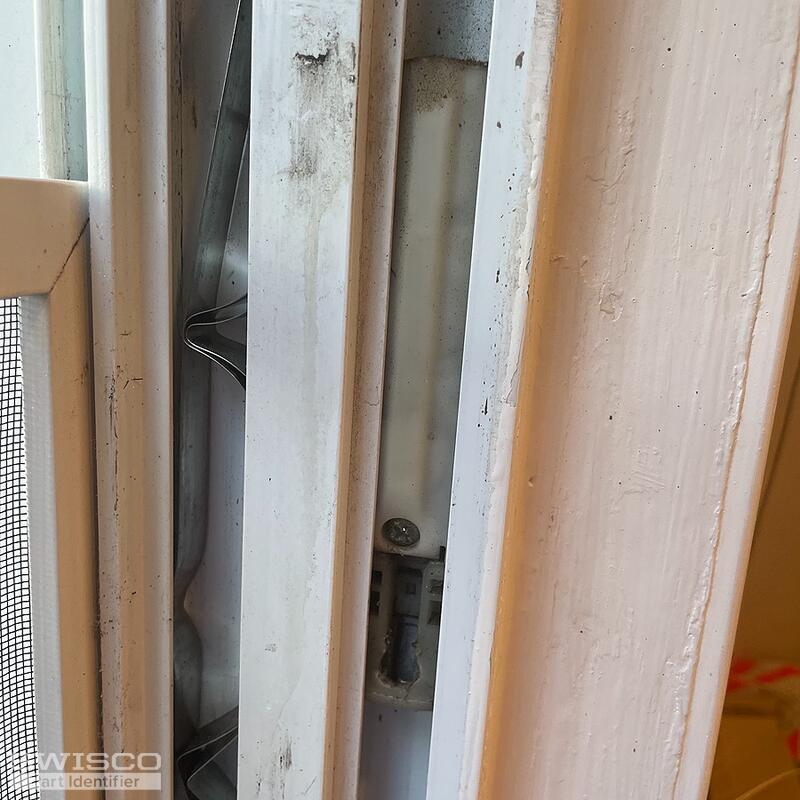

The make of the the window is The Window Factory, there's 3 coil on each side with the #4 stamp
Thumbnail of the uploaded file named ACEF4886-E75C-47F2-9FDA-4468B4F0A264.jpeg
Thumbnail of the uploaded file named 2468D870-1651-4BF4-A845-4C41767D0669.jpeg
Thumbnail of the uploaded file named 3BEBCA50-7FBA-4AF3-91AB-6A1008F98F95.jpeg
Profile picture of Steve
Steve from SWISCO responded:
October 1, 2021

Hello, thank you for posting!

Your pictures resemble our 15-199 Pivot Shoe which are compatible with two types of Coils. Our Series 160 Coil has a 1/2" thickness while our Series 165 is 3/8" thick. Please compare the measurements to determine which coil is needed.

Please let me know if you have any questions.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
4 lb Series 165 Egress Coil Balance
4 lb Series 165 Egress Coil Balance
S165-4
$4.70
4.5 lbs Series 160 Coil Balance
4.5 lbs Series 160 Coil Balance
S160-04
$4.50
