Window parts

A handy person from Syracuse NY says:
July 12, 2022
I am looking to replace the attached parts for 3 windows in my home.
Thumbnail of the uploaded file named IMG_4438.jpg
Thumbnail of the uploaded file named IMG_4439.jpg
Thumbnail of the uploaded file named IMG_4440.jpg

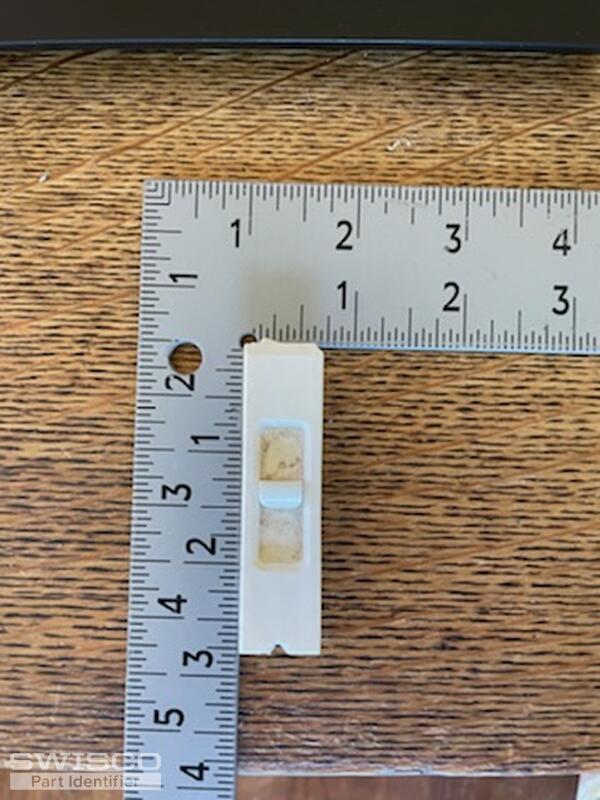

Thumbnail of the uploaded file named IMG_4441.jpg

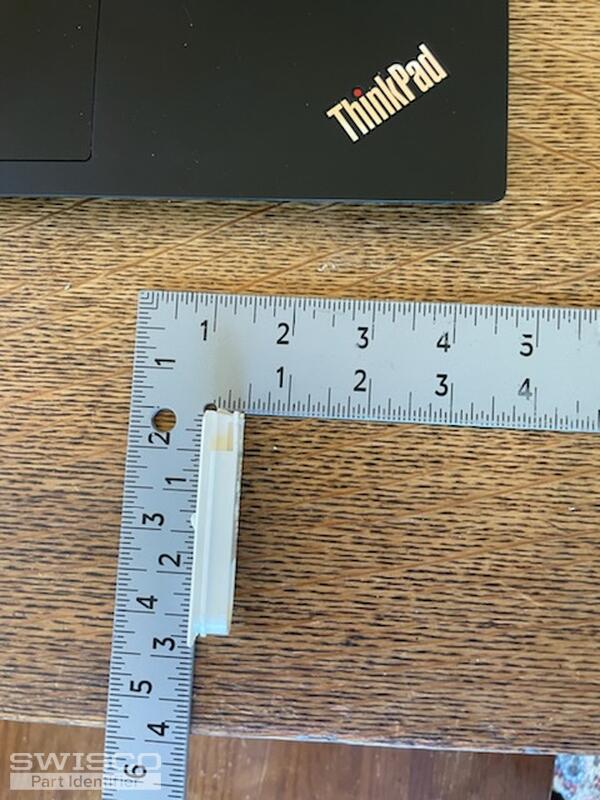

Thumbnail of the uploaded file named IMG_4442.jpg
Profile picture of Emily
Emily from SWISCO responded:
July 15, 2022

Hey there!

Your pivot shoe is a match for our 15-177 that uses the Series 152 coil springs, 15-143 coil bushing, 15-144 cap and 15-145 barrel. For the latches, take a look at our 26-243 and 26-244 and compare our dimensions to an undamaged version to see if they match up. As for the pivot bar, yours looks like a dead ringer for our 26-226. Review the specifications for these parts to see if they match what you're looking for.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
