Window parts

A quick learner from Minnesota, USA says:
September 21, 2022

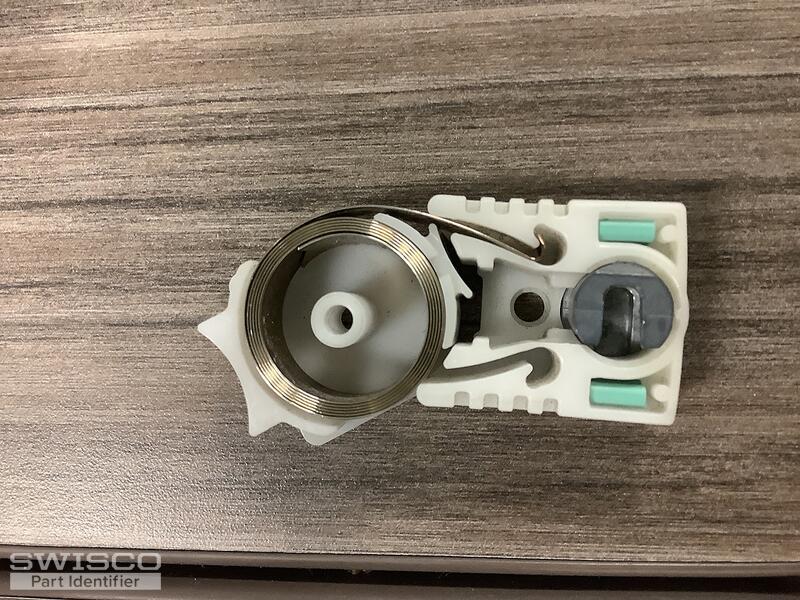

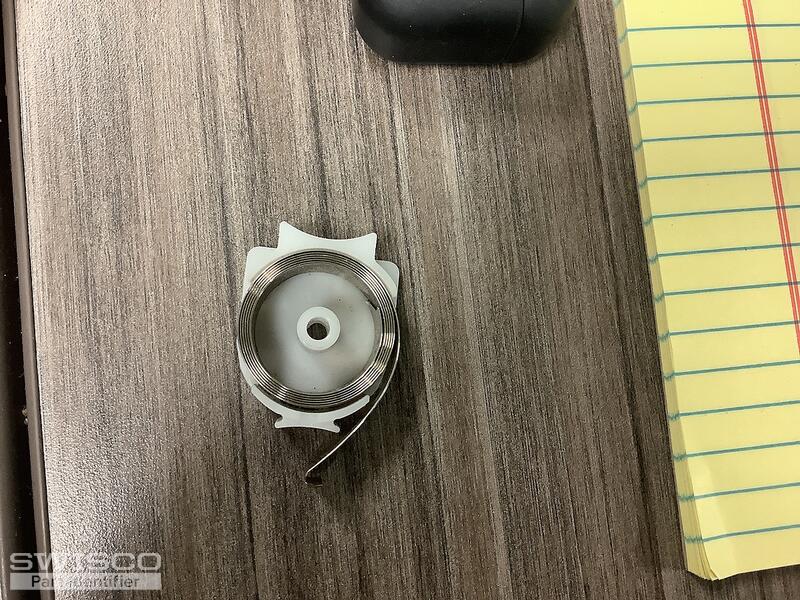

Hello, I'm hoping you can find the coil I need for my window sash part!
Below is all the info on the piece, I do not have any info on the window.

Pat. 6,983,513
5,371,971
1 1/4" wide
9/16" thick
1 1/2" tall

Coil diameter is 1 1/4" and has a half loop on the end to hook into the window lock piece

Thanks!
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Casey
Casey from SWISCO responded:
September 26, 2022

Hello

Based on your photos, I'd recommend the 15-177 pivot shoe and the 1/2" wide Series 152 coil springs. These work a little differently than your old springs because ours use a screw to attach to the shoe instead of hooking onto it but it should still work.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
