Window parts

Question

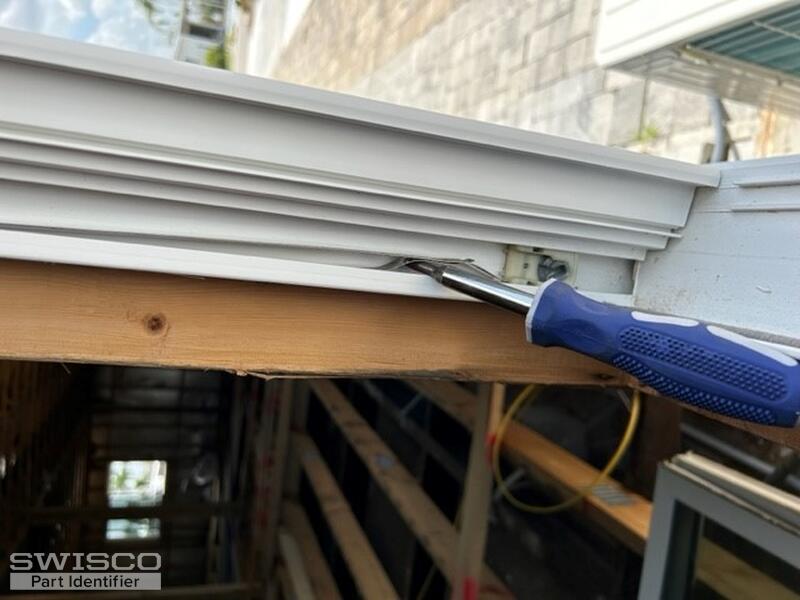

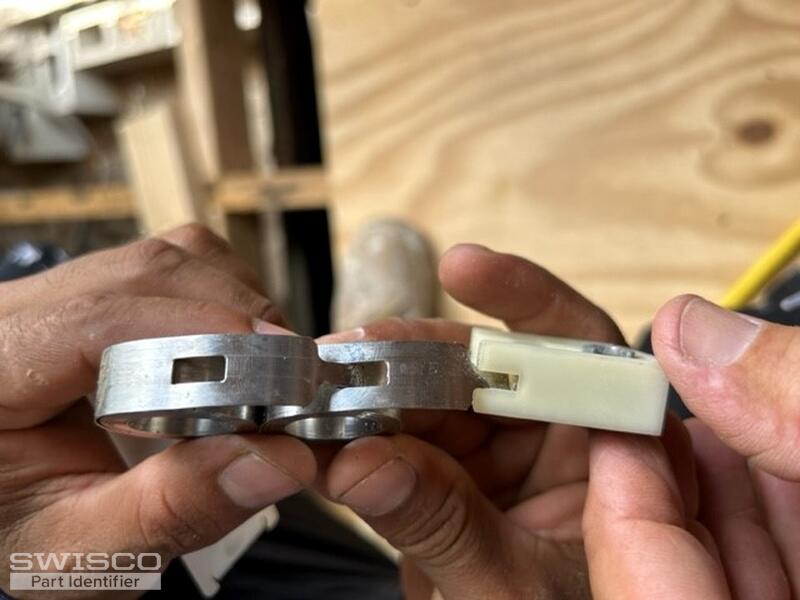

I cannot identify the Shoe in these pictures. It is 1/2" deep  x 1 1/4 wide X 1 1/4 tall. You have one that is close but only 1" tall.

Emily · Accepted Answer

Thank you for reaching out to us! This pivot shoe isn't something we have an exact match for but we may still be able to help. I recommend you take a look at the 15-199 which measures 17/32" thick and 1-1/4" wide. The height doesn't matter so much since you have the whole length of the window track but the width and thickness are crucial. You may want to double-check the thickness just to play it safe. For compatible coil springs, see the 1/2" Series 160 or 3/8" Series 165 depending on the width of the coil band.
