Window parts

Contractor from Rock HIll, SC
On the plastic piece there was a PAT # 5.737.877. I need something similiar that will work.
2 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

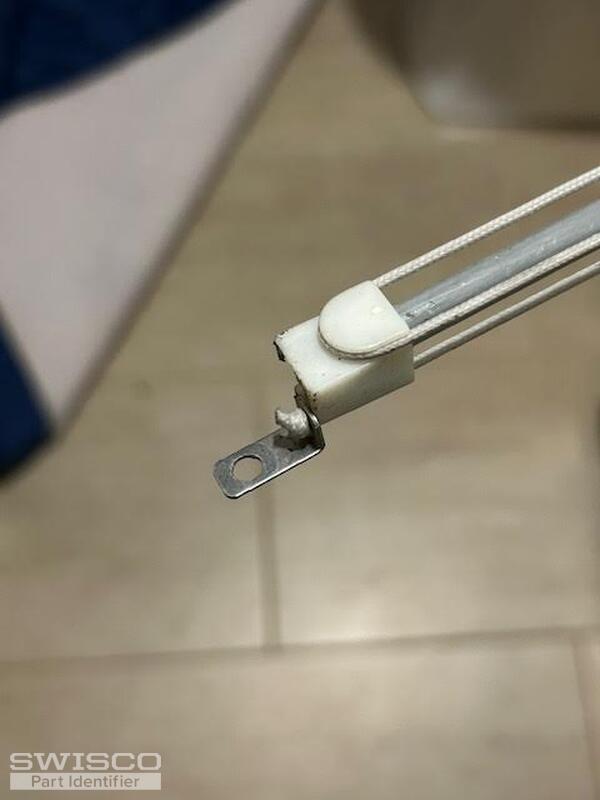

I am confident we can provide you with a replacement recommendation for this balance but I will need to see an undamaged version removed from the window. I am looking to see the top and bottom attachments. This will ensure we are supplying you with the most accurate replacement. You'll also need to have an undamaged balance to confirm an accurate balance length.

These balances do not have stamps/markings indicating the amount of weight they can support, unfortunately. That said, you'll need to confirm the exact weight of the window sash.

Please don't hesitate to reach out with any other questions you might have.

Contractor from Rock HIll, SC

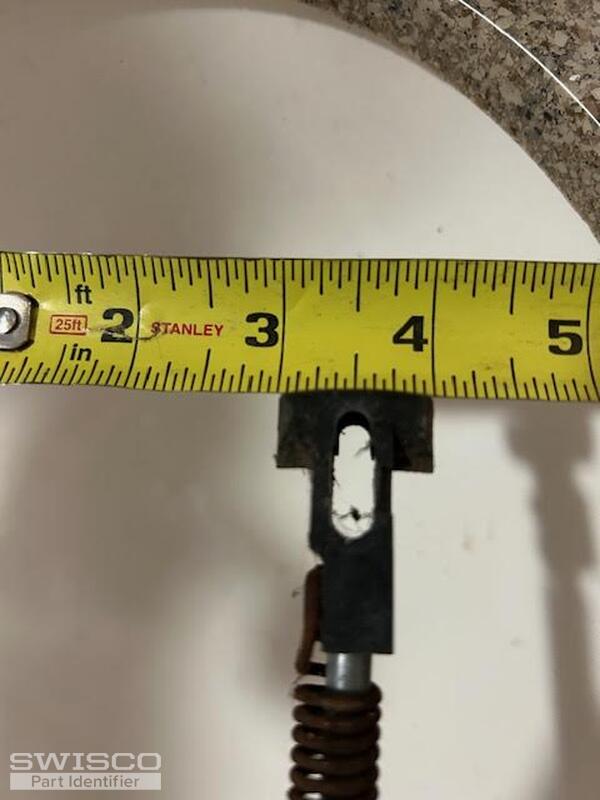

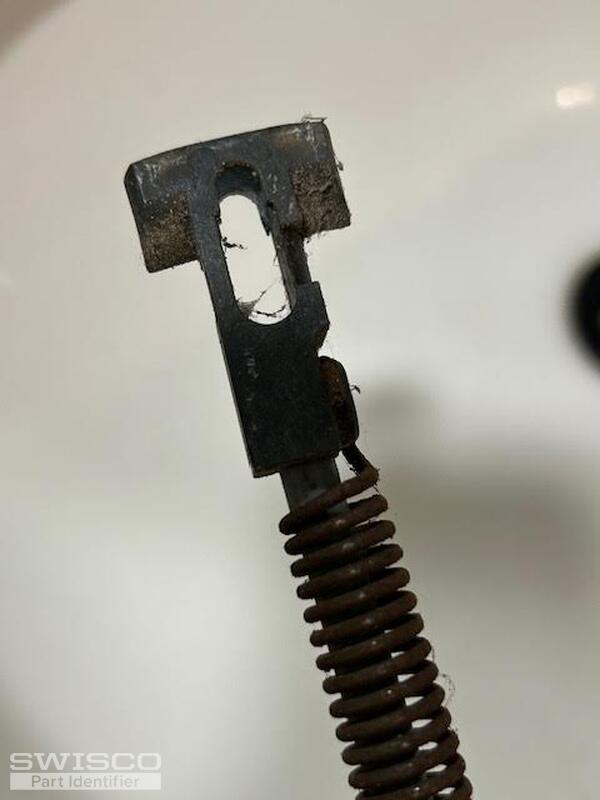

The bottom sash is around 37.5 in tall the whole window track is 75 in tall. The window weighs around 15 to 20Lbs. I need all parts shown in the pictures for both sides.
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for confirming this information. Your balances can be replaced with the S795-36. You'll need the 36B stamp which can support a sash weighing 16 to 22lbs. Be sure to double check the weight to determine if this is correct.

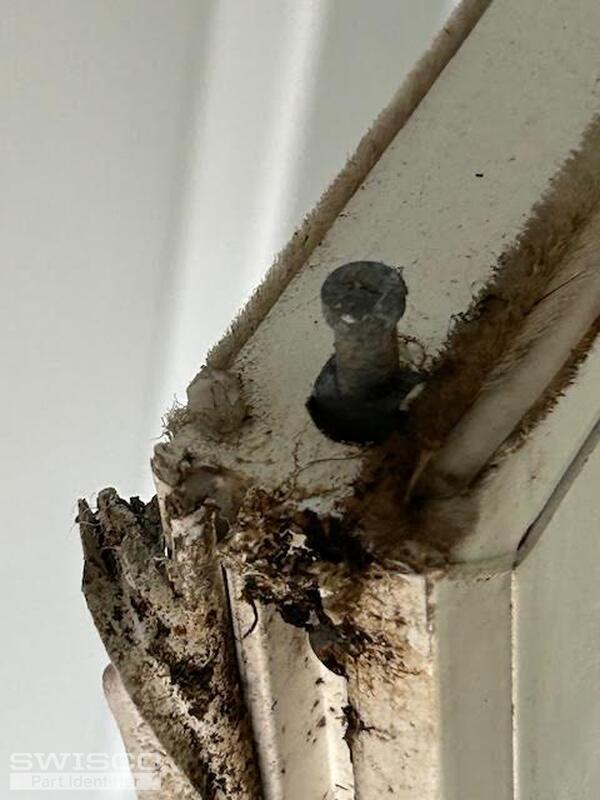

For the pivot bar, I believe you may be able to use the 26-318. Take a look over the dimensions below to confirm.

Alternate image for 26-318
Alternate image for 26-318
