Good morning
The plastic part in second picture broke. This plastic part is attached to the metal part that holds the window up preventing it from slamming down.
Thank for your help and waiting for you reply.

3 user uploaded images

4 Replies

Lauren from SWISCO

Aug 13, 2024 11:03 am

Hello, thank you for posting,

It appears that your window uses the Series 770 channel balance. This balance screws in at the top of the metal channel. The plastic piece is the pivot shoe. If you only need this part, we will need to see the original removed with written out dimensions of the width and thickness. From there we can compare to our selection to determine the best match.

Handy Person from Wallington, NJ 07057

Sep 16, 2024 6:58 pm

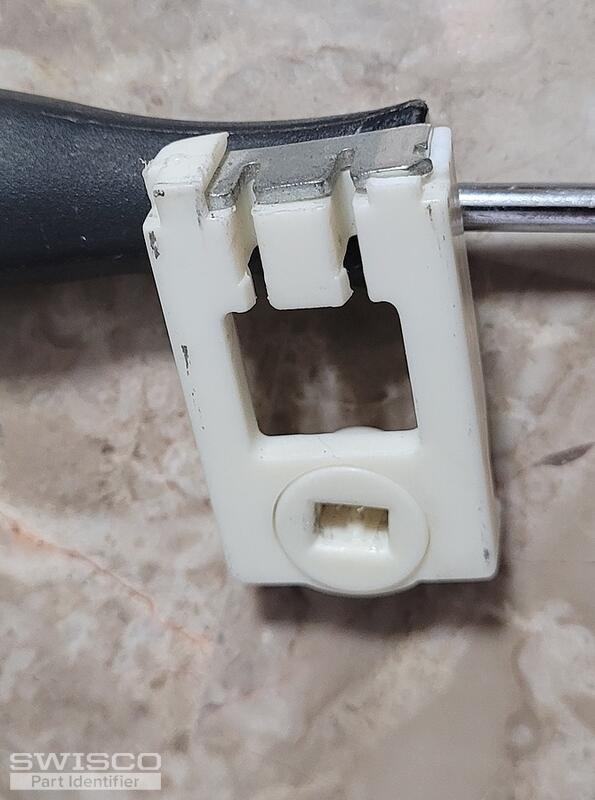

I need help identifying the correct pivot shoe. I have included pictures
Thank you

2 user uploaded images

Lauren from SWISCO

Sep 17, 2024 10:16 am

Thank you for the additional pictures,

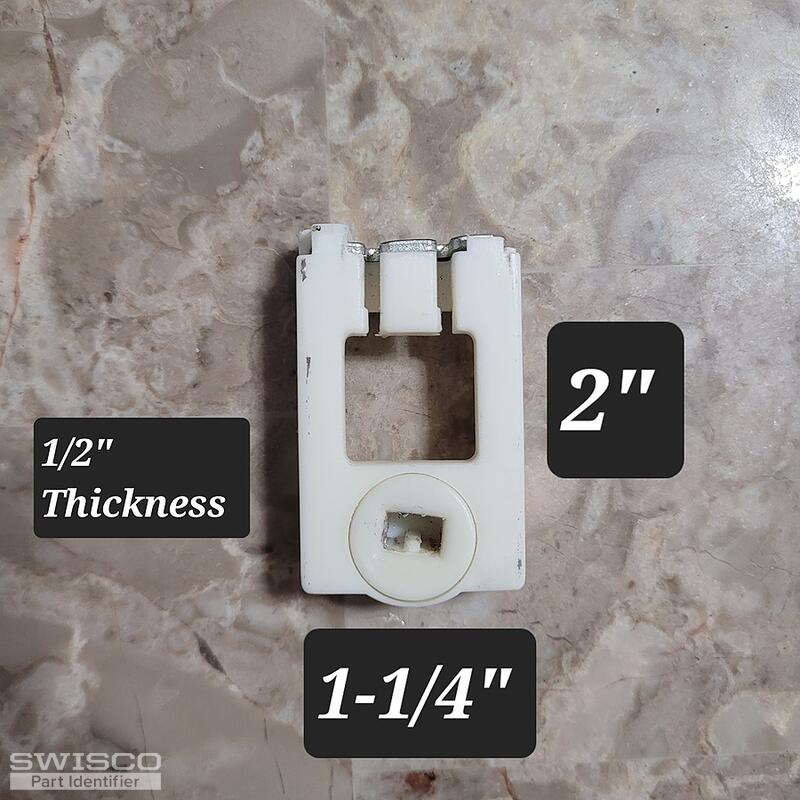

Based on the dimensions, please review the style of the 15-046 pivot shoe. Compare to your original and let us know if you have any additional questions!

Alternate image for 15-046

Detailed image of the pivot bar slot of the 15-046 pivot shoe.
