Window pivot bar replacement

Question

Please refer to cavity dimensions to help with selection of devise that may work in our situation. t Thanks , Bill

Paul · Accepted Answer

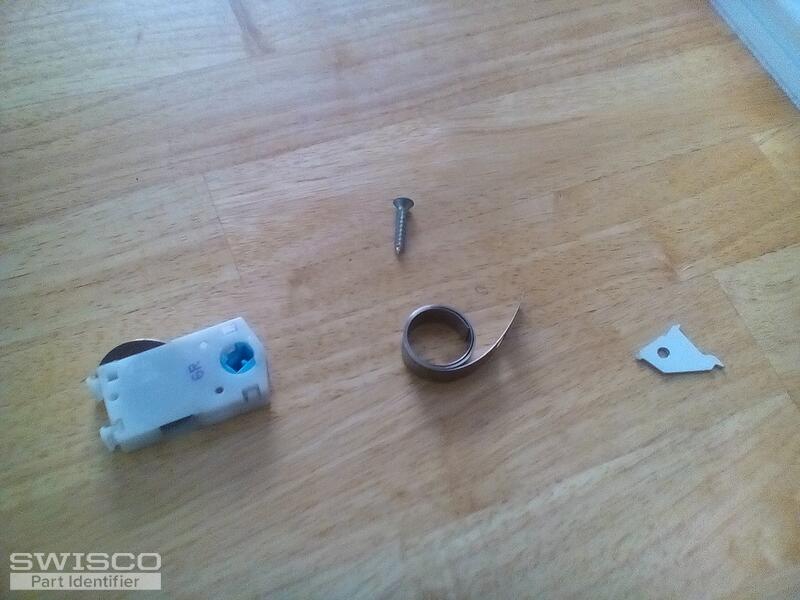

There a number of pieces that are going to be needed to replace your coil balance system. Let's start with our 15-087 coil spring housing with pivot cam. These can be used with the S180-6 coil spring and 16-024 mounting bracket. Compare your parts to ours to make sure they are a match.

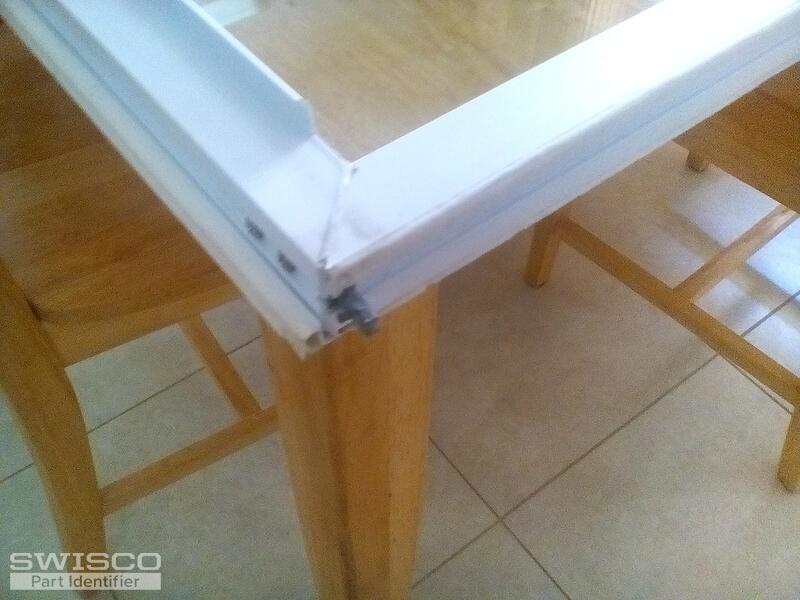

As for the pivot bar. Because it is still installed, we can not make a recommendation. We would need for you to remove one and,upload photos with measurements. From there, I am sure we can find you a match.
