Window pivot parts (bar and lock)

A quick learner from Pittsburgh, PA says:
February 13, 2018
The lock and bar broke on both sides of my double hung window. I need replacement parts and your advice please.

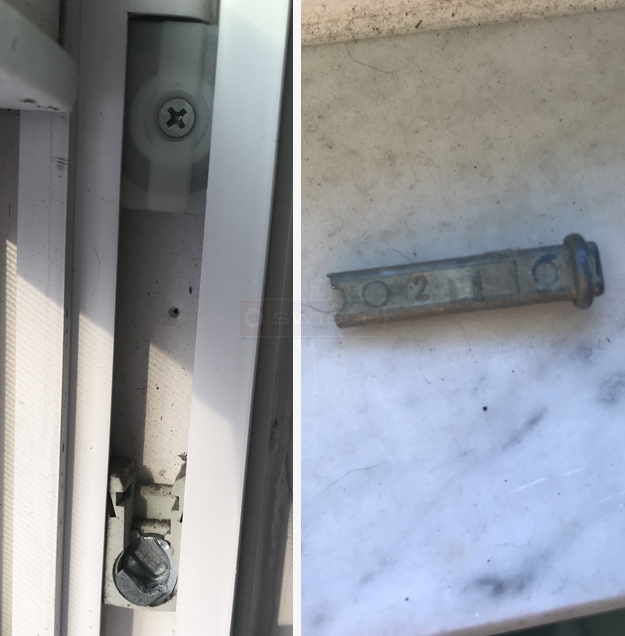

Pivot bar and coil assembly
Profile picture of Paul
Paul from SWISCO responded:
February 16, 2018
Hi there. Our 15-177 coil balance shoe may be what you are looking for. It goes along with our Series 152 coil springs. Your pivot bar could be either our 26-226 or 26-352. We'd like for you to compare those two parts with an undamaged pivot bar to see which of the two would make the better match.
A quick learner from Pittsburgh, PA says:
February 20, 2018
This is great! Thanks so much for your response. How would I choose a balance weight (3 lb, 4 lb, etc)?
Profile picture of Paul
Paul from SWISCO responded:
February 20, 2018
You will need to remove the coil springs and the spring stamp weight is stamped on it.
Pivot True Pivot Bar
Pivot True Pivot Bar
26-352
$1.90
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
