Window repair

A quick learner from East Providence, RI says:

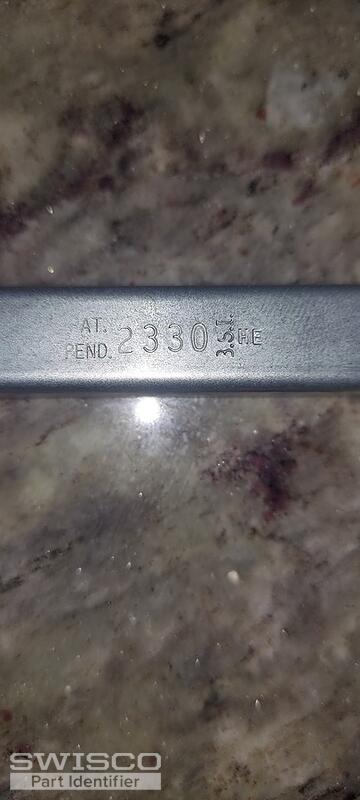

I see pat fend 2330. 3.6.i he on the rod

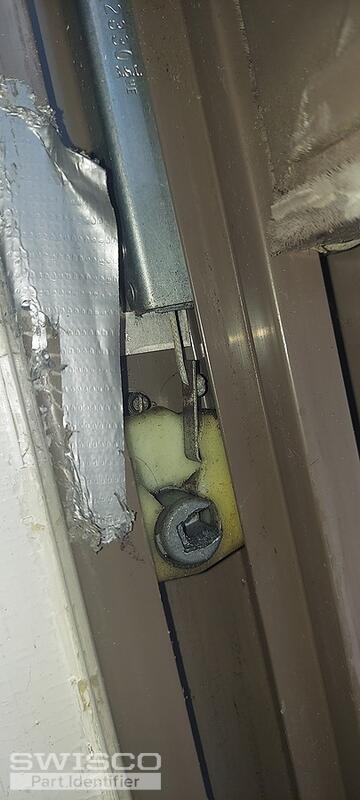

Thumbnail of the uploaded file named 20221120_142246.jpg

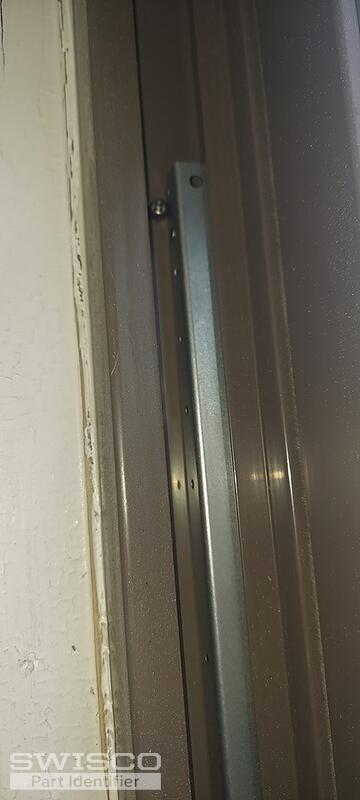

Thumbnail of the uploaded file named 20221120_140732.jpg

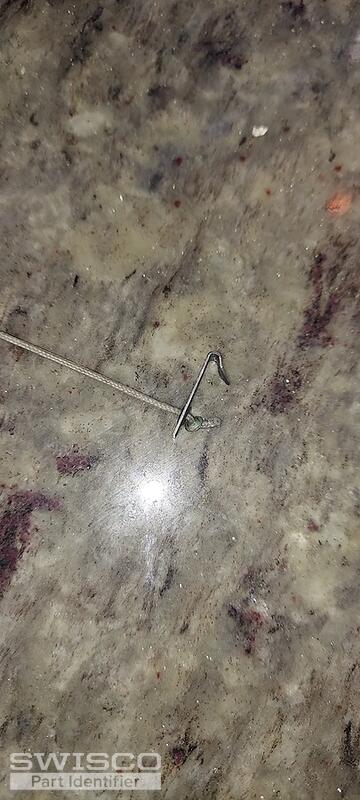

Thumbnail of the uploaded file named 20221120_140724.jpg

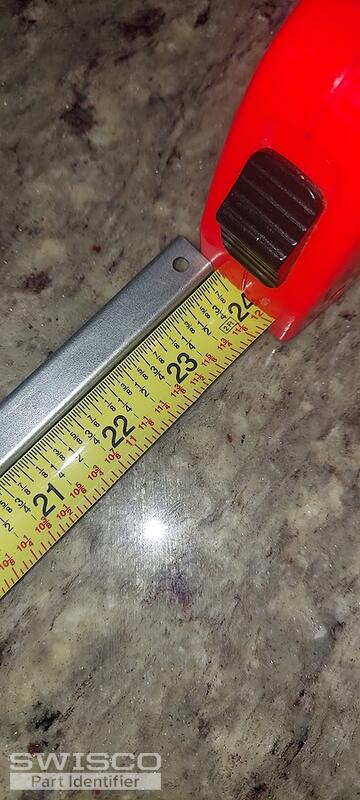

Thumbnail of the uploaded file named 20221120_142051.jpg
Thumbnail of the uploaded file named 20221120_141407.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look and compare the specifications of the 15-105 pivot shoe to yours. This is designed to work with an older style balance that is also technically not made anymore.

The good news about that is that we can configure one of our newer models to work the same way but it will need to be a custom order. We would use our S770-24 as a base and swap out the bottom clip for the 62-105 hook.

I suspect that you can use a 24C stamp option to support a 17-22 pound window sash, but it would be a good idea to confirm your exact sash weight since these custom balances are not eligible to be returned. We'll also need to confirm the number of balances that you need, with the minimum order being two, and we can go from there. Thank you!
