Window replacement parts

Quick Learner from Indiana

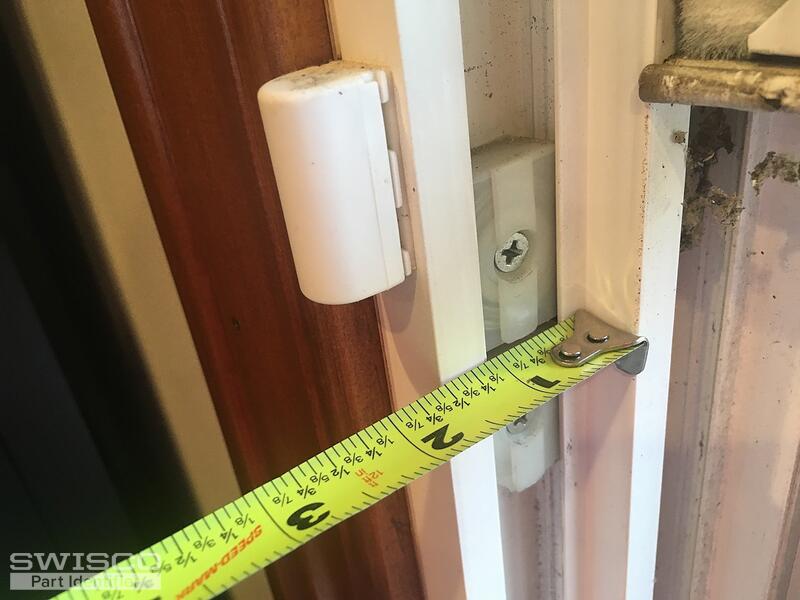

Need 2 spring packs, 2 shoes, 2 pins for this window. The outside dimension of the height of the window is 26". The distance from the shoe midpoint to the bottom of the plastic spring cover is 21.5".
5 user uploaded images
3 Replies
Quick Learner from Indiana

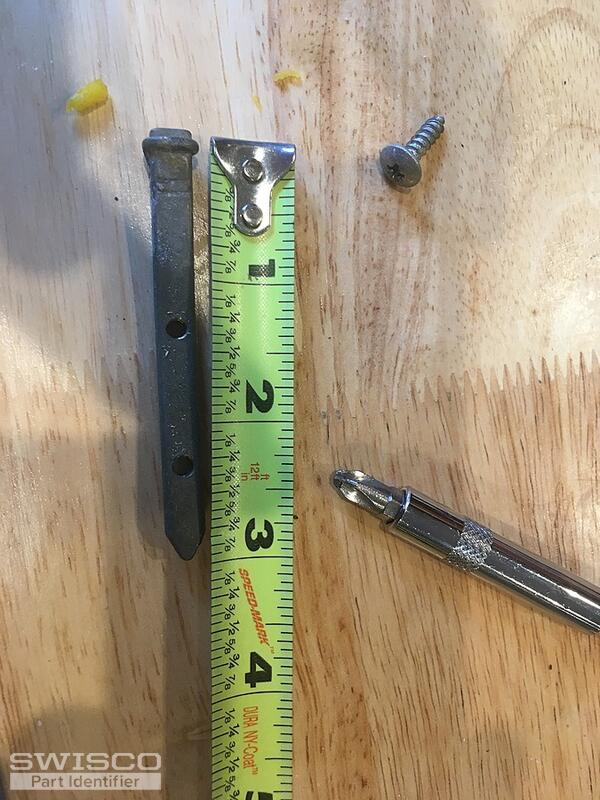

I definitely need the shoes (15-177?) and the pins (26-226?). Upon closer inspection it looks like the spring end is sticking out the bottom. Re-use? The window is relatively new ( we think).
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for reaching out. The 15-177 and 26-226 indeed look like matches based on your photos. You can reuse the springs if they're in good shape and screw to the side of the shoe. If you need new ones, see the S152 coil springs. You'll have to check the band of the spring to determine what spring weight is needed.

For new spring supports, see the 15-143, 15-144, and 15-145. These "sandwich" around each spring.
