Window shoe (23+ yrs old)

Handy Person from New York
Jun 19, 2023 3:04 pm

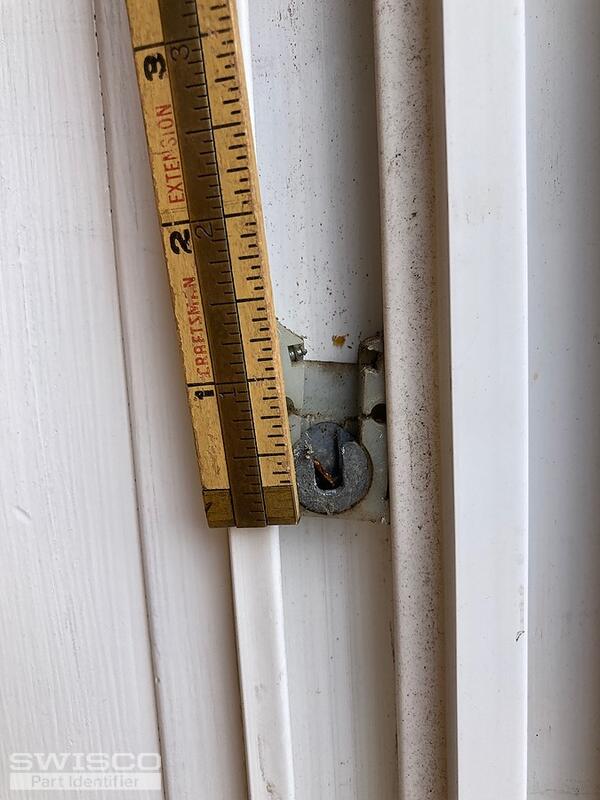

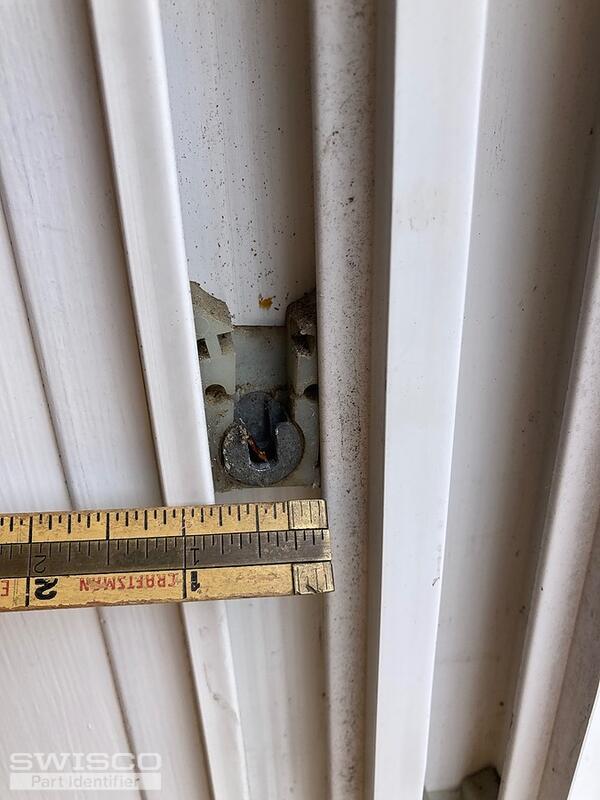

Recently have had to replace the double glazed glass in my 23+ YO Kohler windows. The window shoe is 9/16" thick, 1.125" wide, 1.375" tall.

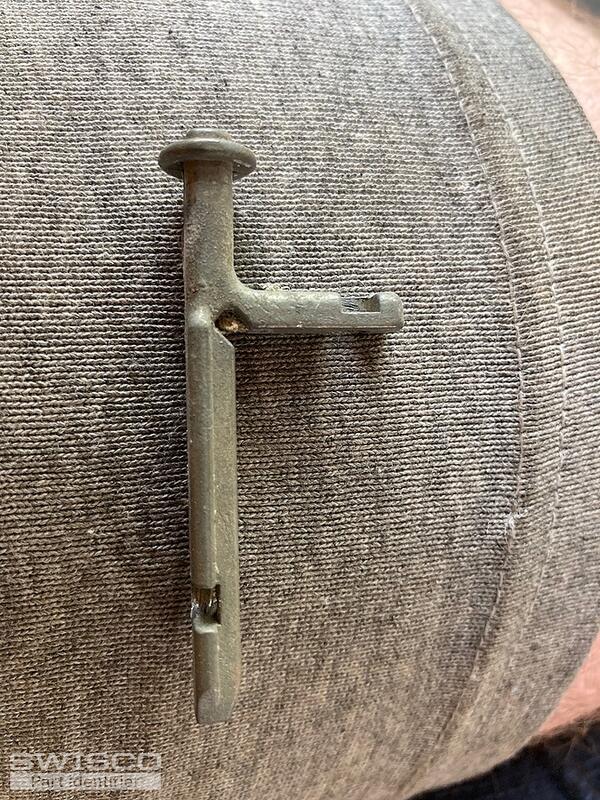

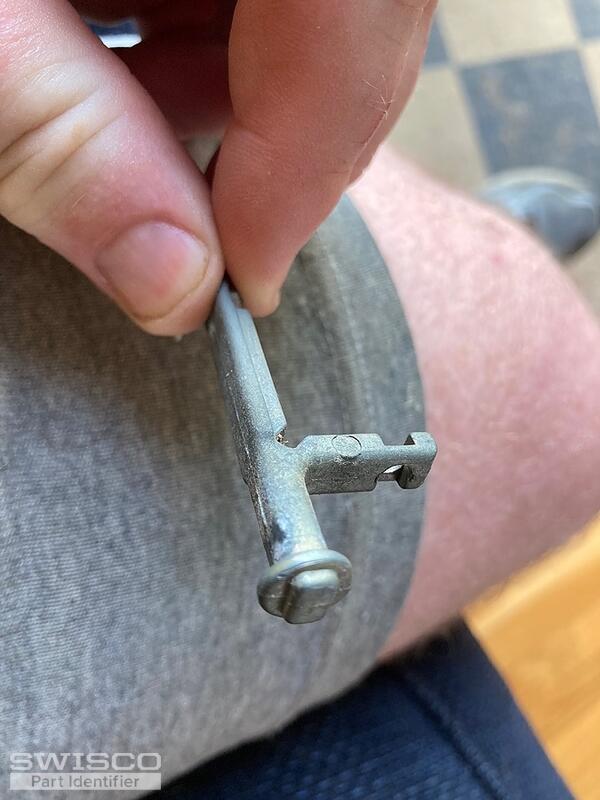

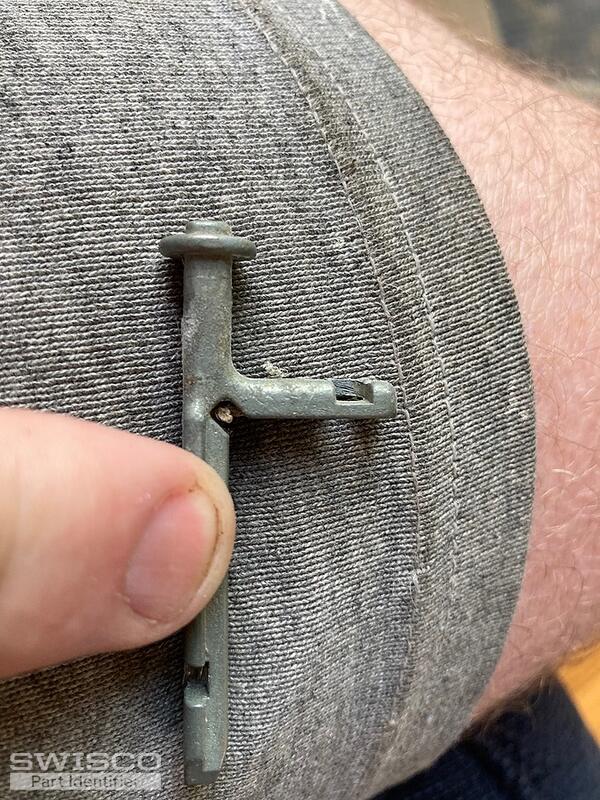

Pictures of the pin that engages the shoe are also attached. Can youo recommend the proper replacement part?
Thanks,
Jim
IMG_4384 IMG_4383 IMG_4381 IMG_4380 IMG_4379
5 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Jun 21, 2023 1:51 pm
SWISCO
EXPERT

Hello,

Unfortunately, the pivot shoe shown in your photos was recently discontinued. However, the 15-177 can work as a replacement, which uses the S152 coil springs.

As for your pivot bar, see the specifications of the 26-446 shown below. Thank you!

Alternate image for 15-177
Alternate image for 15-177

Dimensions for 26-446
Dimensions for 26-446
