Window shoe

Quick Learner from Virginia

Apr 11, 2022 3:49 pm

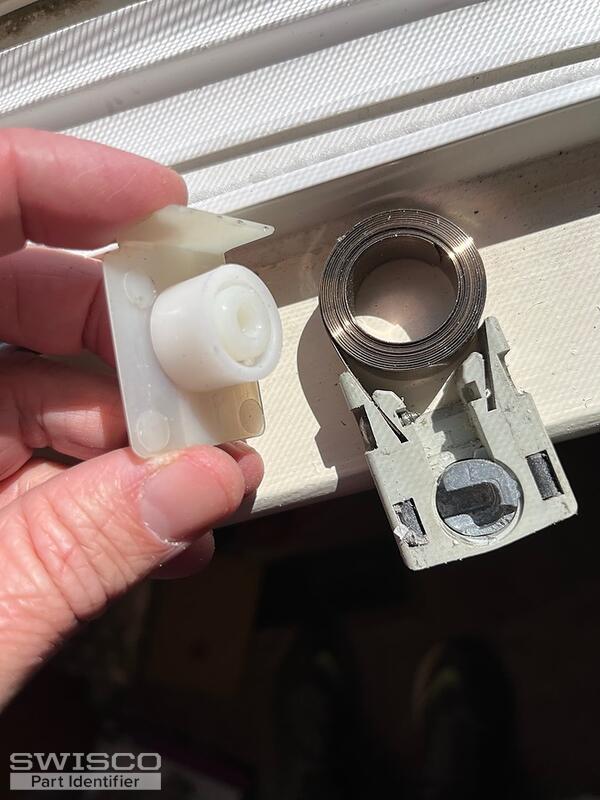

The metal circle part is broken on several of our windows. We were able the shoe and spring but need replacements for the shoe. Your website seemed to have one.

4 user uploaded images

3 Replies

Emily from SWISCO

Apr 12, 2022 3:05 pm

Hello there!

You have our 15-177 pivot shoe which uses the Series 152 coil springs. For a new coil support, see our 15-143 bushing, 15-144 bushing cap and 15-145 support barrel. Let me know if you have any questions!

Quick Learner from Virginia

Apr 12, 2022 4:18 pm

Thank you so much. We will place an order. Appreciate your help!
