Window tension rod

Home Owner from Sanford fl

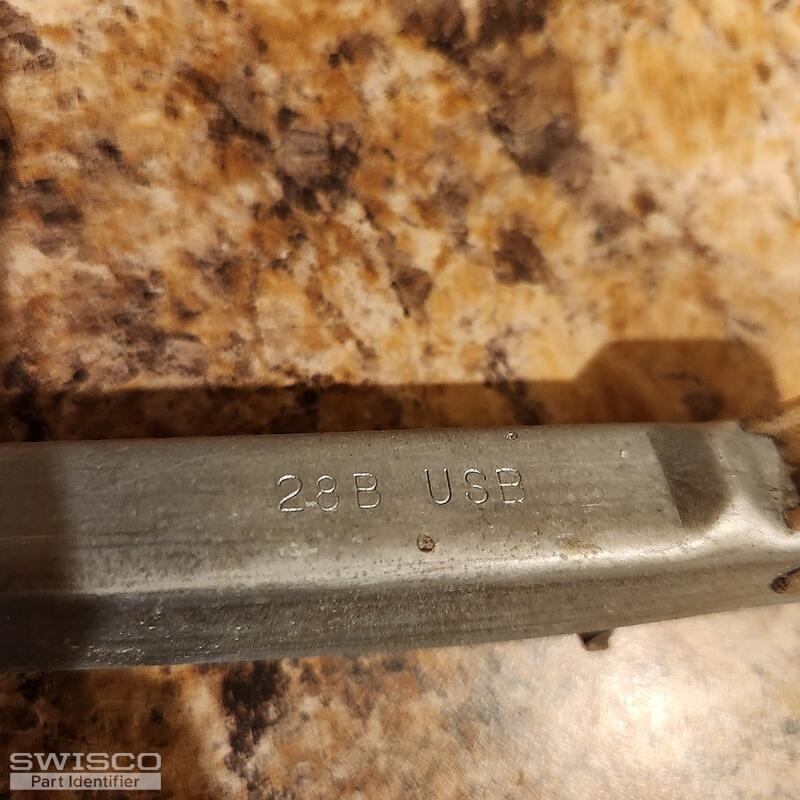

My tension rod has fallen down & I can't figure out how to get it out. The number in the picture is that the stamp identification?
1 user uploaded image
5 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but, unfortunately, the stamp code does not tell us the replacements you'll need. To get started, we would need to see both ends and any fittings used with your balance assembly fully removed from the window. See the videos related on this page to assist you depending o the type of windows you have. Thank you!

Home Owner from Sanford fl

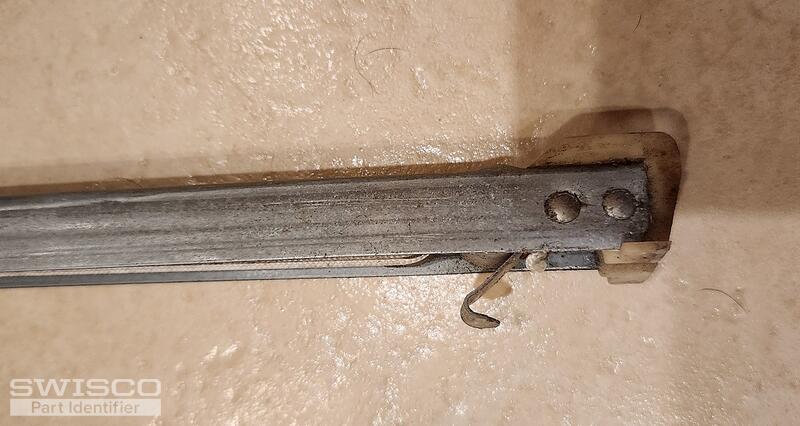

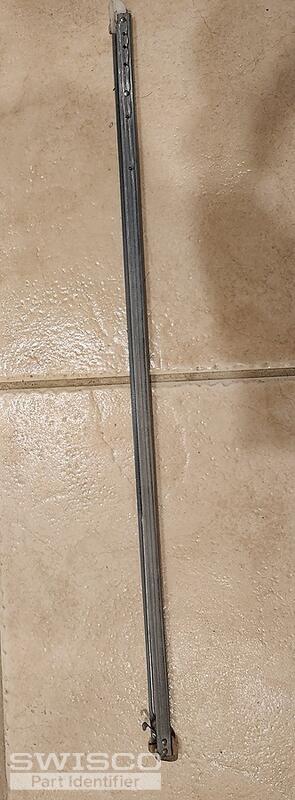

Here are pictures of one of the rods.
5 user uploaded images
Home Owner from Sanford fl

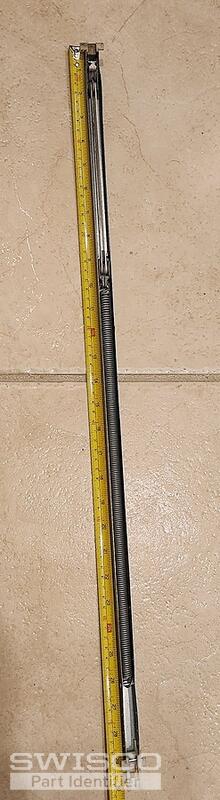

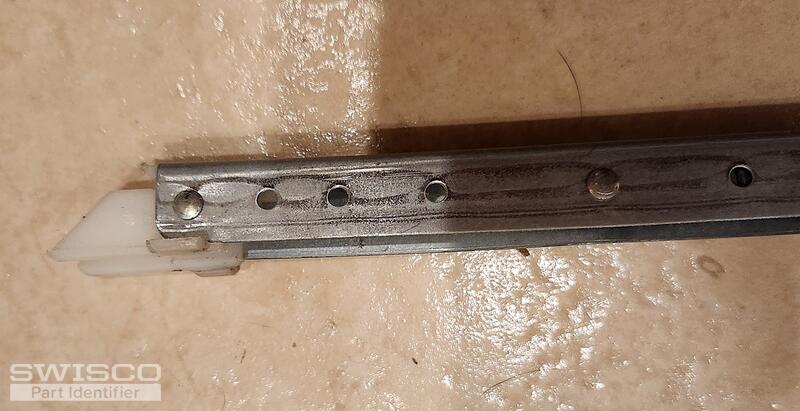

Here are some other images of rod
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

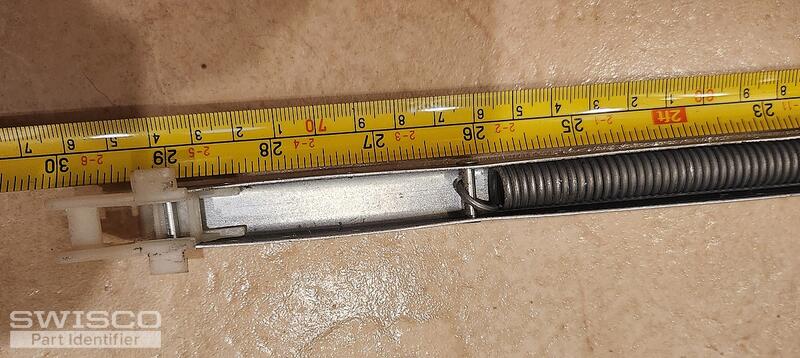

Thanks for getting back to us. With this combination of attachments, you could have either the S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2820 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
