Home Owner from San Diego

Dec 5, 2025 10:33 pm

Window world tilt windows , both the pivot bar and pivot shoe lock are broken. Do you have replacement parts ?

2 user uploaded images

4 Replies

Bob from SWISCO

Dec 7, 2025 7:51 pm

Thanks for posting. The pivot shoe looks like the 15-177, which works with Series 152 Coil Balance springs. Please compare. Without seeing the pivot bar removed it is hard to say which you need, but start by comparing with the 26-466.

Alternate image for 15-177

Dimensions for 26-466

Dimensions and closer look at 26-466

Home Owner from San Diego

Dec 17, 2025 6:33 pm

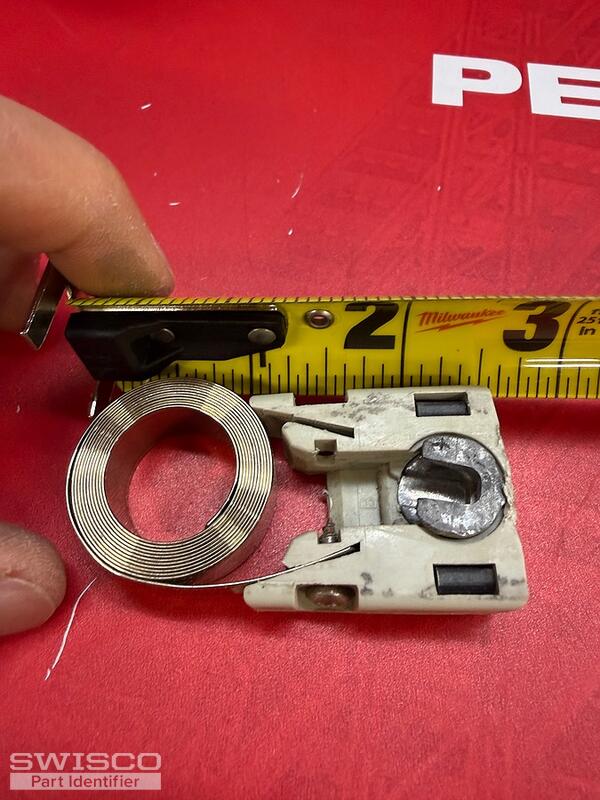

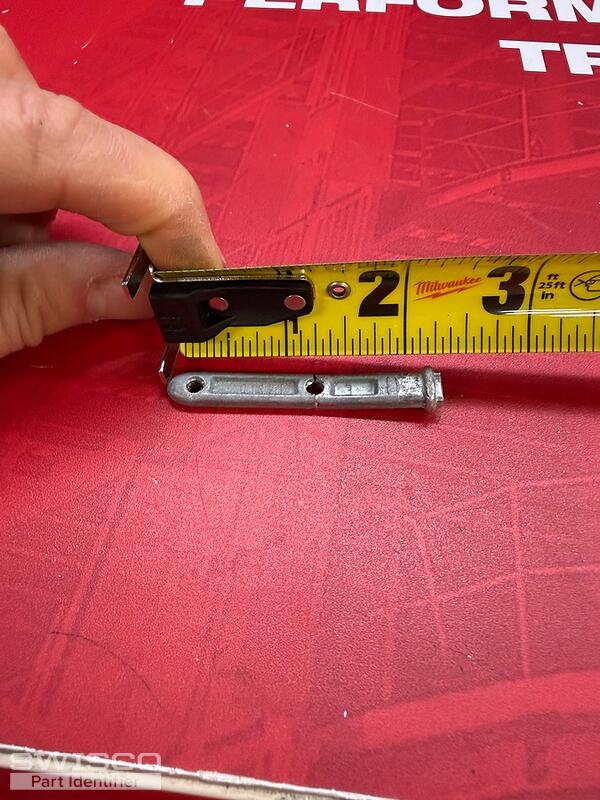

Hi, thanks for the reply. I had time today to remove the window and parts and make meausrements. please see the photos attached . I would need pivot bar as well as the full shoe and spring assembly.

Thanks,
Mohsen

3 user uploaded images

Bob from SWISCO

Dec 18, 2025 3:13 pm

Hi Mohsen. Yes, the pivot shoe is a deadringer for the 15-177, which works with Series 152 Coil Balance springs sold separately. The pivot bar certainly looks like the 26-466, but double-check with the dimensions I posted previously just to be safe. Let me know if you have further questions.
