Home Owner

Jul 28, 2023 3:24 pm

I want to buy six of them but I need to be sure which parts I need .

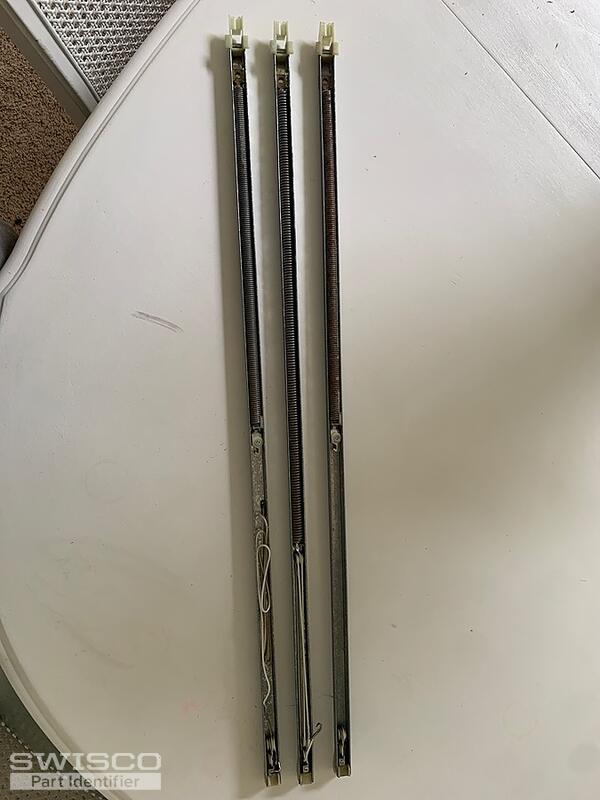

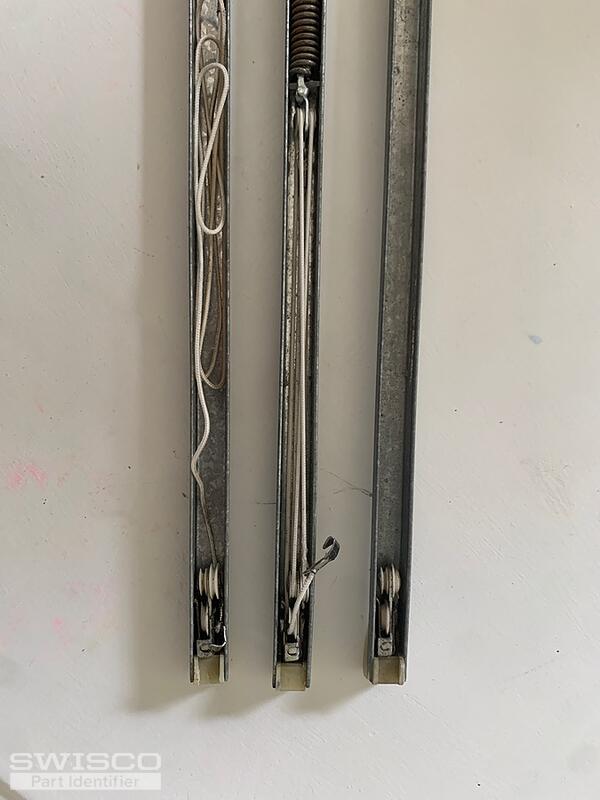

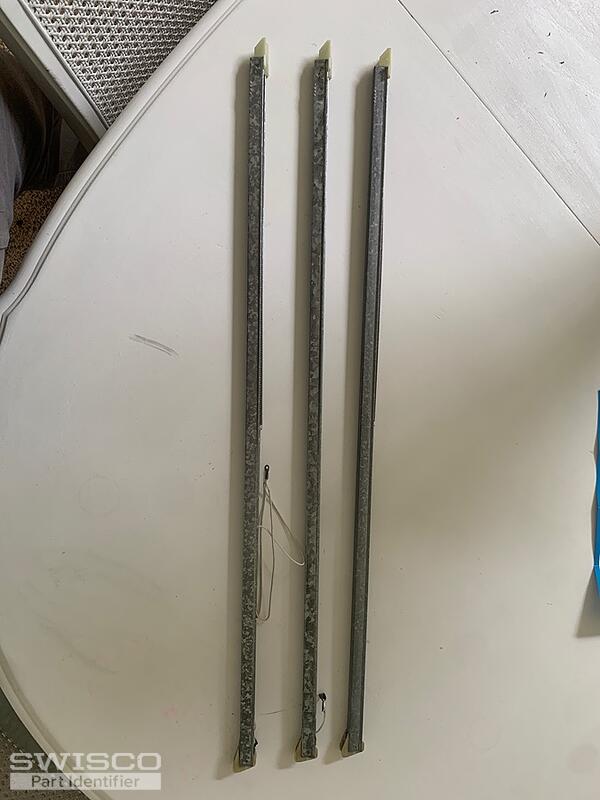

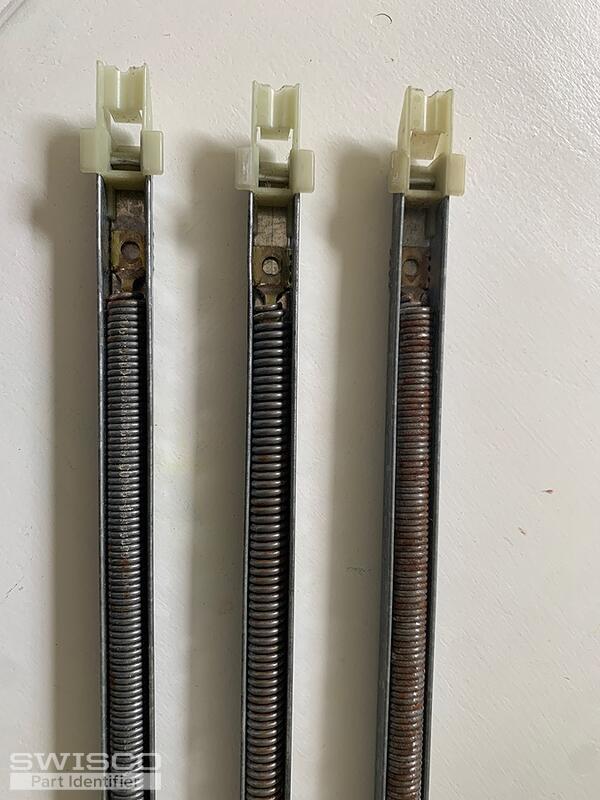

4 user uploaded images

4 Replies

Casey from SWISCO

Jul 31, 2023 11:59 am

Hello,

Your balances resemble the S395 channel balance. Take a look and compare the specifications to yours. You'll also need to measure the length, not including the end fittings, and locate the stamp code on the metal channel to choose the corresponding strength option. Thank you!

Close up view of the S395 balance top.

Close up view of the S395 balance shoe.

Home Owner from Florida, Orlando

Jul 31, 2023 2:03 pm

Hi . Thanks for responding my email . But is 30" but there are not any stamp code on them . Do I need any part for windows balances part for it.

Casey from SWISCO

Jul 31, 2023 2:28 pm

That's okay. If there is no stamp code on any of the balances, you'll need to weigh the window sash and follow the chart under the S395-30 product description that explains how to choose your option based on the sash weight.
