Windows fold out

Home Owner from Chicago il

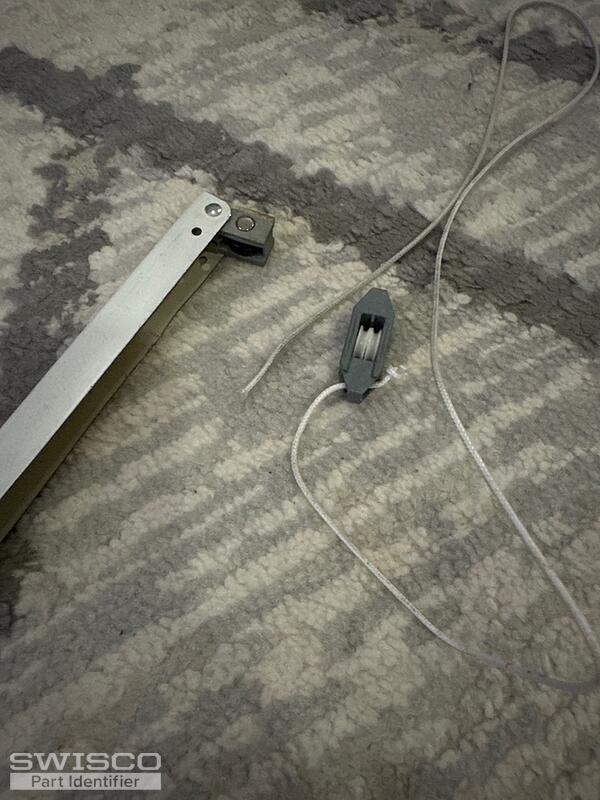

There's a number 14 C on it I don't know but the house like this I would need two of these for the windows whatever parts I need please let me know pay for them. You guys can send them out. Thank you.
5 user uploaded images
4 Replies
Home Owner from Chicago il

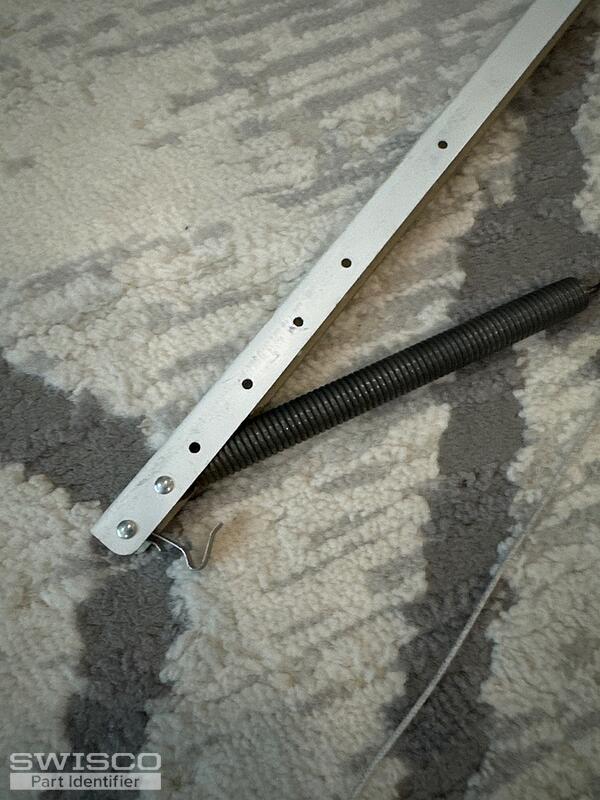

The metal rod is 14 inches
2 user uploaded images
Home Owner from Chicago il
What are the measurements that you need? I know it's a 14 C the other plastic pieces I don't know that you need the measurements for.
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thank you for reaching out to us. We can help with this. However, it must be a custom order since your balance installs with an S-clip like the 19-029 or 19-030. To sum it up for you, we'll use the S770-14 with the 14C stamp and install a rivet in the top hole.

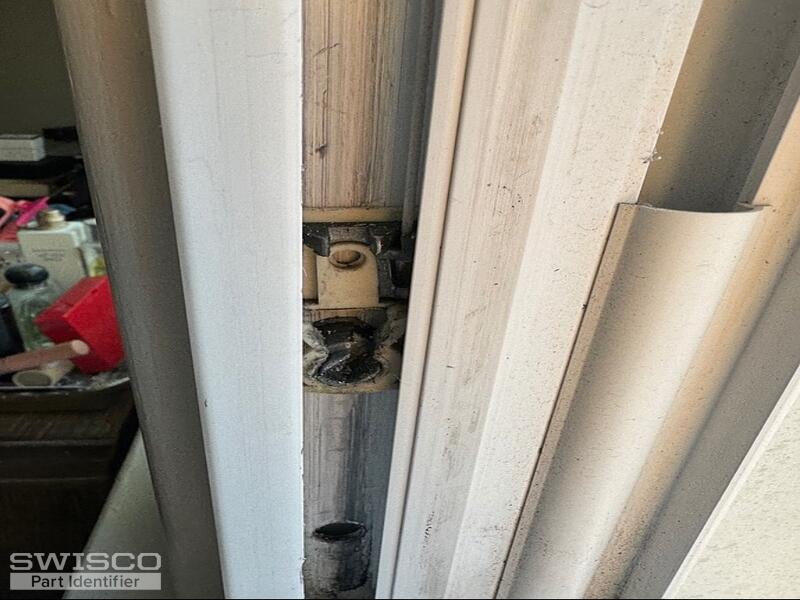

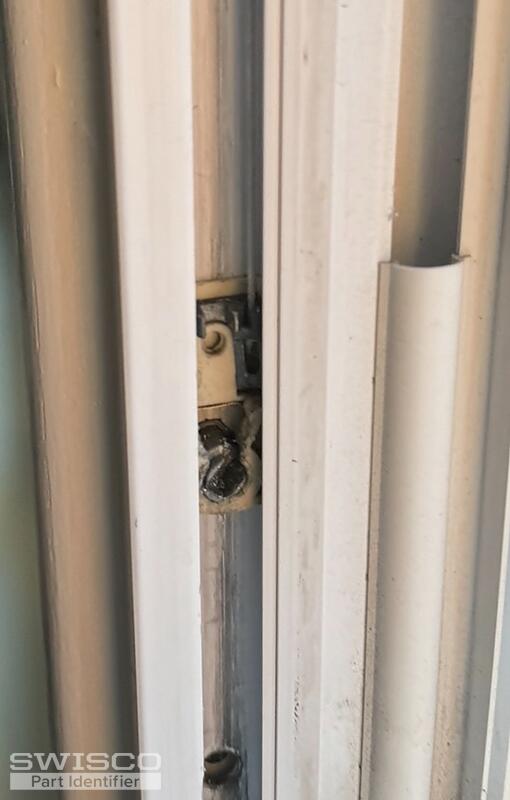

As for the pivot shoe, have a look at the 15-129 and 15-152 to see if the specifications of one matches up with yours.

I'll email you a purchase link and price quote for (2) balances that you can use to place an order on our website. Please note that the pivot shoe and S-clip are not included in the link so don't forget to add your needed quantity to your cart separately.
