Tom from SWISCO responded:
October 3, 2019

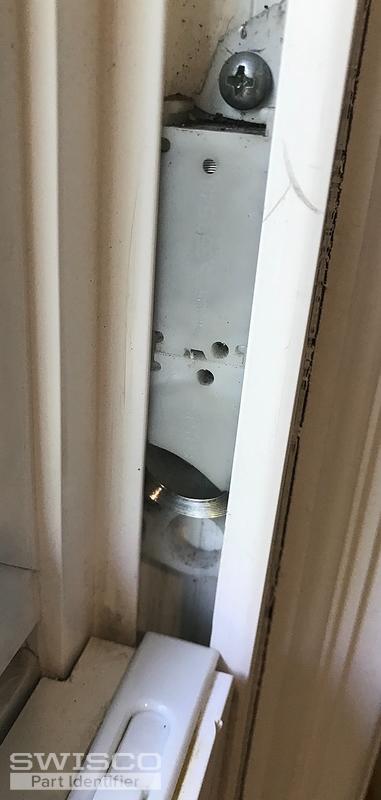

Thanks for posting! If your window won't stay up on its own, then the coil springs are probably shot. It also looks like your pivot/coil housing is busted, too. With all that in mind, I recommend looking at our 15-087 pivot/housing and Series 180 coil spring. You'll need the stamp off the old spring to confirm the best option. Odds are, you can replace just those two parts and be set. However, if you wanted to just replace everything, see our 15-086 secondary housing and 16-024 top bracket. You can probably reuse what you have now, but I thought I'd mention them just in case. You can install the bracket with a 33-072 screw. It also looks like your tilt latch might be broken, too. It's tough to tell what you have without seeing it out, but start by looking at our 26-243 and 26-244. Look over our photos and dimensions to confirm. Let me know if you had any questions about this setup. |
