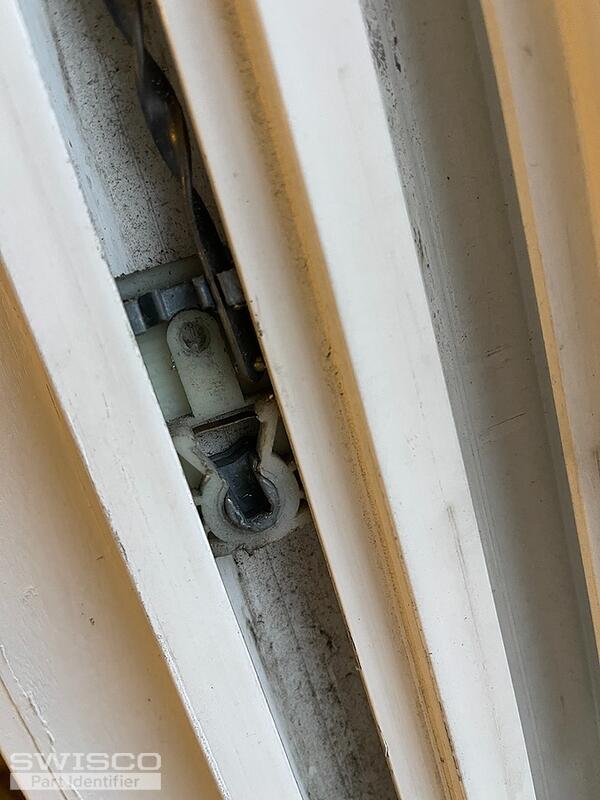

Hello. I have a couple of Winnova double hung windows with broken cams> It's the part that rotates so you can lift the windows out. I haven't been able to find anything searching the internet and the windows are older(were in the house when we purchased 10 years ago),
appreciate any help you can provide
John
|
Casey from SWISCO responded:
December 13, 2022
Hello, Unfortunately, the metal cam is not available separately but your pivot shoe does resemble our 15-129. I would recommend removing our shoe from the window to compare to the width and thickness shown below. Thank you!
Detail of 15-129
|
|
|
Casey from SWISCO responded:
December 15, 2022

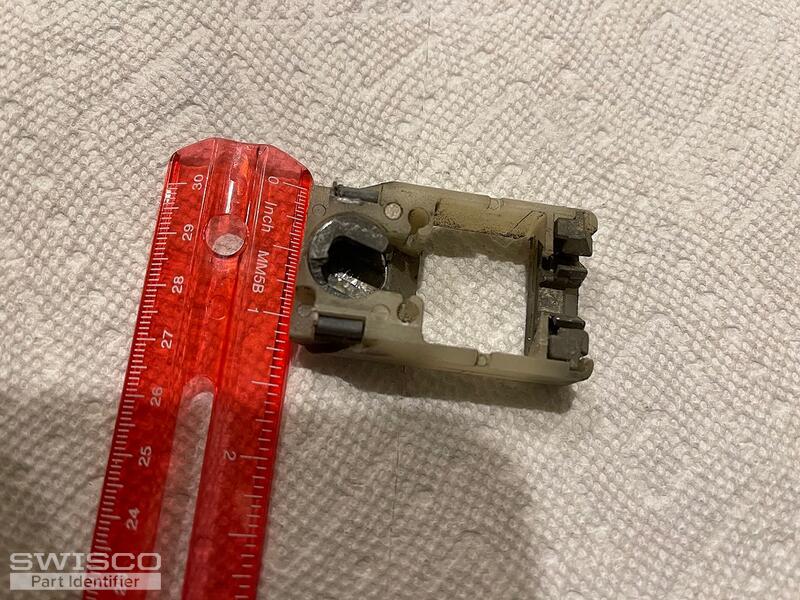

The pivot shoe that you removed from the window actually looks different than the one shown in your original photo. The uninstalled shoe actually looks closer to the 15-188 shown below.
Alternate image for 15-188
|
|
|
Casey from SWISCO responded:
December 16, 2022
I agree that it sounds like someone probably tried to repair the window with parts that they had on hand instead of finding exact replacements. If you have another identical window in the house with the original hardware, that will help you confirm the correct match. Please note that we also carry the 15-178 with a depth of 17/32".
Dimensions for 15-178
|
