Wood Window Spiral Balances

A quick learner from USA says:
January 27, 2020
I am not sure of which shoe/bracket would go on this spiral balance but I believe I am searching for a S500 balance.

The window weight is 15.5lbs.

Length is 30in.

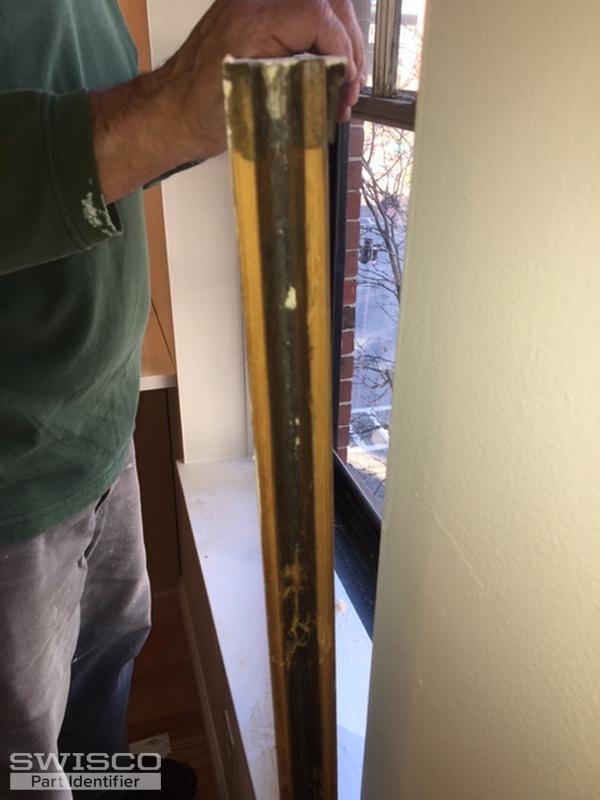

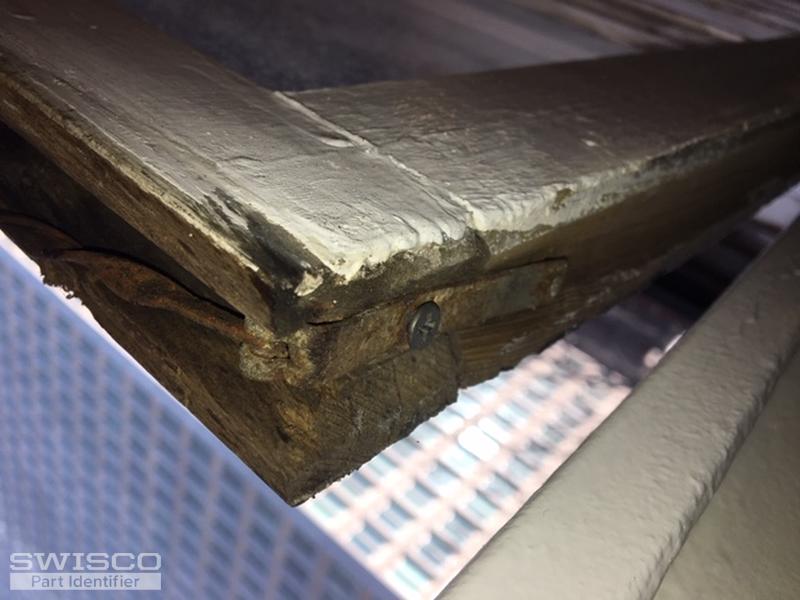

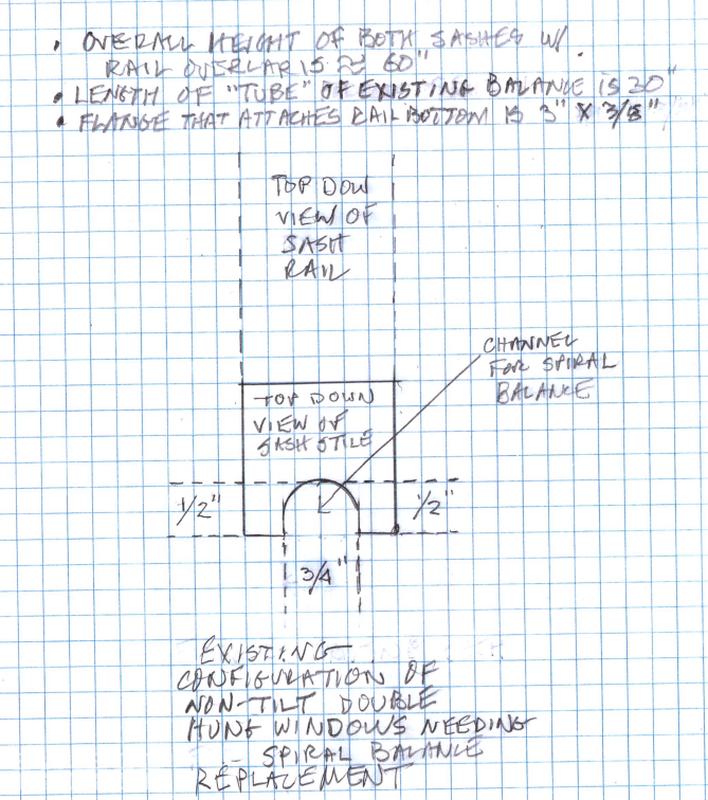

Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Profile picture of Bob
Bob from SWISCO responded:
January 27, 2020

Thanks for posting. See our S500-30 . If your window sash weighs exactly 15.5 lbs, a red tip option should work for you. The bracket you need should be our 17-012 ; just go over the dimensions to confirm.

30" Series 500 Spiral Balance
30" Series 500 Spiral Balance
S500-30
$9.72
Bracket, #32
Bracket, #32
17-012
$1.20
Spiral Balance Charging Tool for Non-tilt Windows
Spiral Balance Charging Tool for Non-tilt Windows
75-005
$12.10
How to Identify a Replacement Spiral Balance
How to Identify a Replacement Spiral Balance
VIDEO
WATCH >
How To Choose the Proper Spiral Balance Tip Color
How To Choose the Proper Spiral Balance Tip Color
GUIDE
READ >
How to adjust a spiral balance on a non-tilt window
How to adjust a spiral balance on a non-tilt window
GUIDE
READ >
