Would need 6 of the coil balancer. Just need to know the part number.

A quick learner from Colorado says:
November 5, 2021

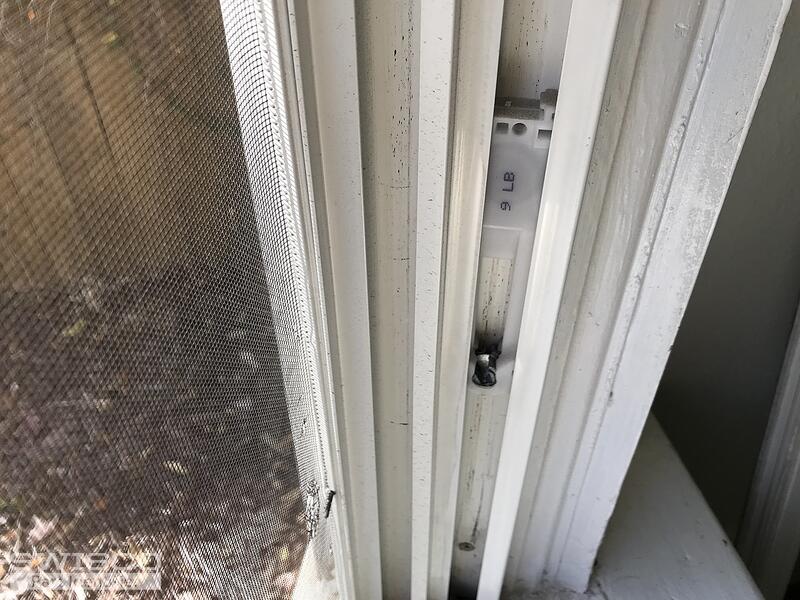

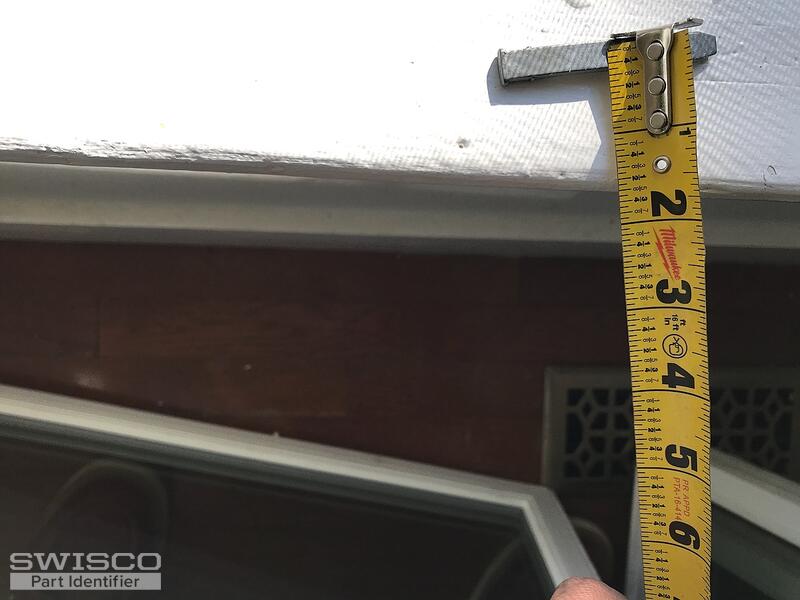

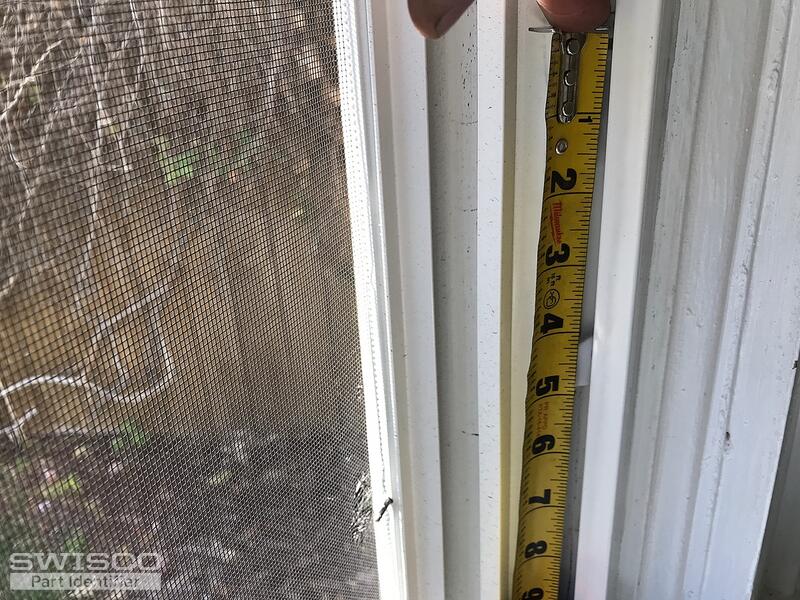

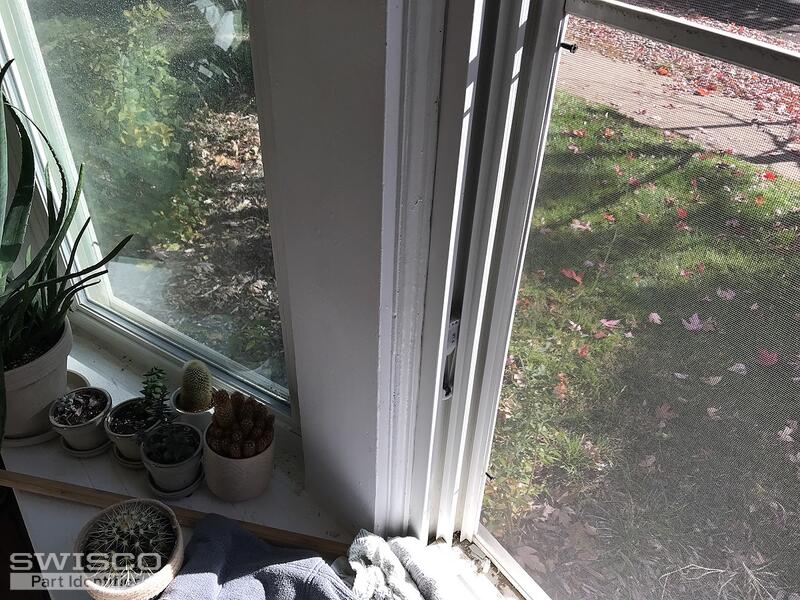

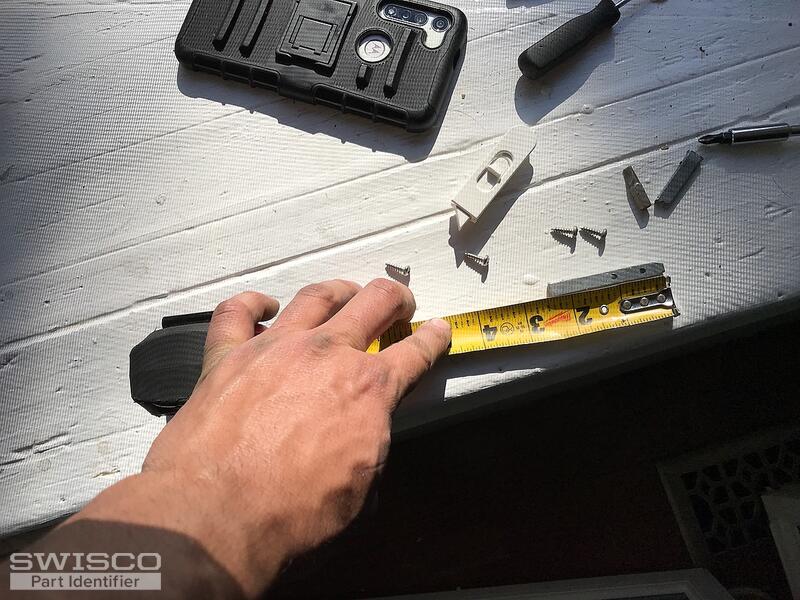

Need 6 of the coil balances, need help finding out the part number. Also one of the bottom metal screw on pins. Also the tool that opens the track to get the coil balance in.
Thumbnail of the uploaded file named EA7CDF0B-797C-489F-BE47-CEF3087BC120.jpeg
Thumbnail of the uploaded file named 30AA2F75-5EB2-4176-A51F-1192C5ED62CB.jpeg
Thumbnail of the uploaded file named 47A26FED-7121-4D9A-BAF2-EB141826A8B4.jpeg
Thumbnail of the uploaded file named E47F0AA4-73F1-4CFB-A2C5-C12E4C352FE5.jpeg
Thumbnail of the uploaded file named 7BD5ADA5-5E56-46C1-81CF-A3E7C6EB090A.jpeg
Profile picture of Lauren
Lauren from SWISCO responded:
November 10, 2021

Hello, thank you for posting!

We do not carry your exact coil balance assembly, but we recommend reviewing our Series 140 Quick Tilt as a replacement. Please compare the dimensions of the pivot shoe to make sure it will fit properly in the channel. I would recommend obtaining the weight of your sash to determine the correct strength option needed. Since this would be a new assembly, you would need a different style pivot bar. Please review the compatible pivot bars I have related on the page for you to determine if any match up to at least one installation hole along with the width and length. If the installation holes are not matching up, you may need to drill a new hole, but will need to be very careful of not drilling into the glass. Please let me know if you have any questions.

Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-454
$1.98
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to replace a window pivot bar
How to replace a window pivot bar
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to Replace Damaged Pivot bars
How to Replace Damaged Pivot bars
VIDEO
WATCH >
