acadia window parts

Quick Learner from Kingsville Maryland
Jun 16, 2024 12:37 pm

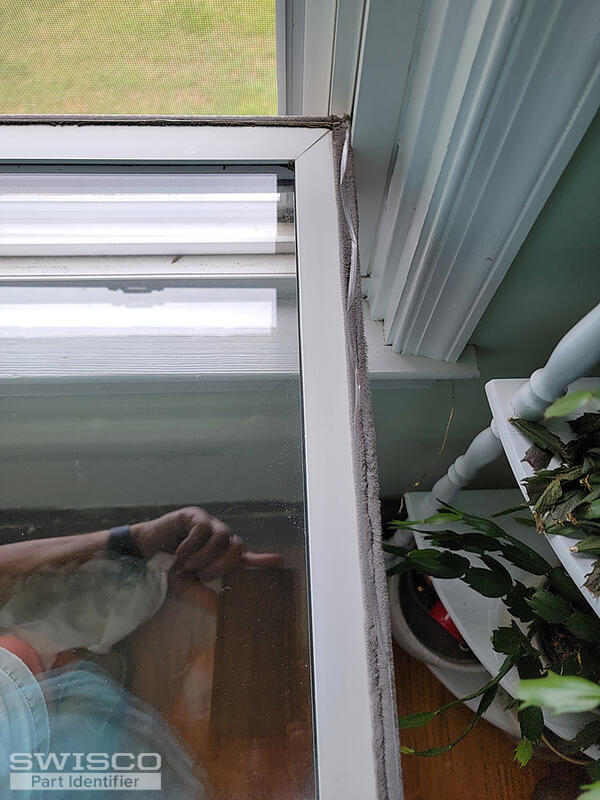

need a spring, tilt hardware, and weatherstripping. Please respond either way,

thanks,

 Mike

20240616_122643 20240616_122558 20240616_122549 20240616_122652 20240616_122351
5 user uploaded images
3 Replies
+ Add a Comment
Bob
Bob from SWISCO
Jun 16, 2024 9:37 pm
SWISCO
EXPERT

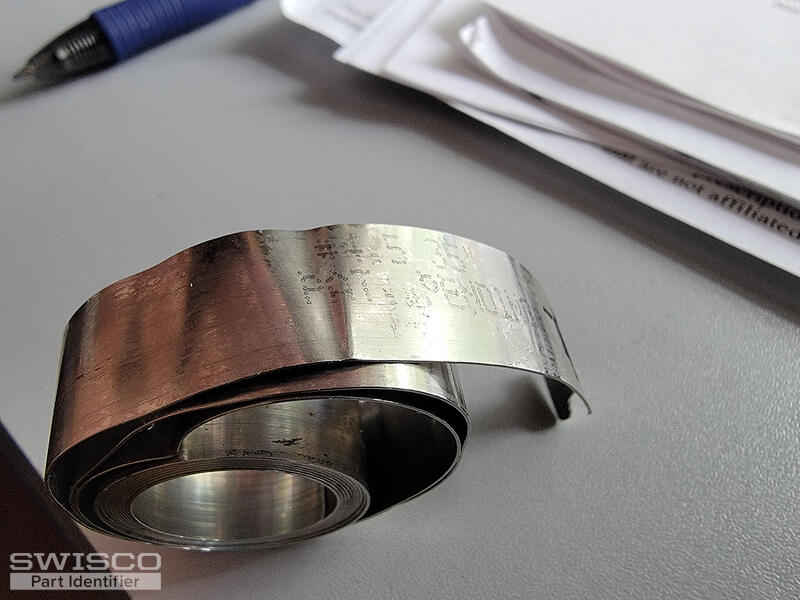

Hey Mike. For the coil balance system, I believe you have a 15-111 Pivot Shoe and 1/2" wide Series 160 Coil balances. Check the width of the coil springs just to be safe. For a spring stamped #4.5, use the S160-04 4.5 pound spring. For the tilt latches, see if the 26-475 match what you have. Let me know if you have questions.

Dimensions for 26-475
Dimensions for 26-475

Quick Learner from Kingsville Maryland
Jun 17, 2024 8:05 am
Thanks Bob, I'll try your suggestions and let you know how it works out. mikw
Bob
Bob from SWISCO
Jun 18, 2024 9:35 am
SWISCO
EXPERT

Awesome, sounds like a plan. We'll be here to help should you have any follow up questions.
