balance

Quick Learner from usa
Good morning,

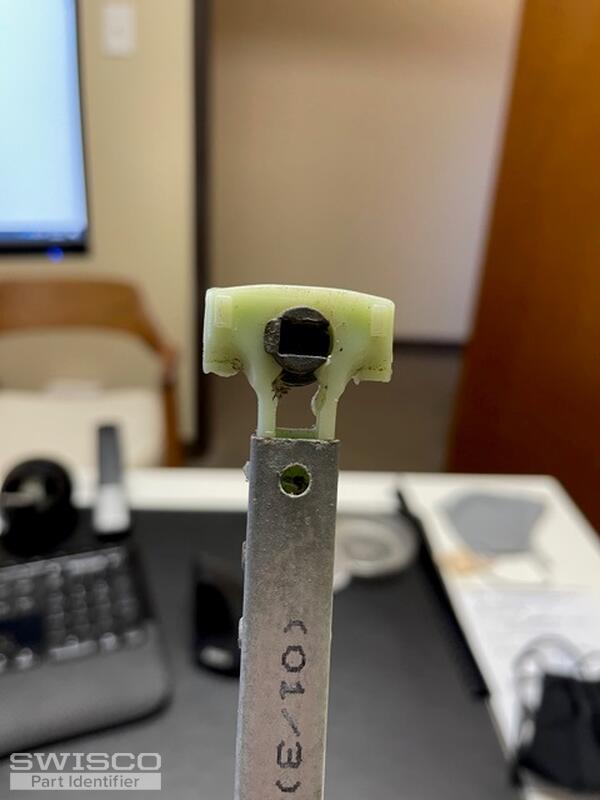

I need 46 of the balancers in the pics below. The channel is exactly 28" long and measures ½" deep and 9/16" wide. Can you identify and give me a price and lead time?

4 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Your balance looks like a much older version of our Series 795. Although yours is so old, I think our more modern balance should still work just fine as a replacement.

Quick Learner from usa
Ok thank you. The stamp on the balancer says "27-C-30". The exact channel length is 28". should I choose 28" then "28C" for my selections on your website?
Tom
Tom from SWISCO
SWISCO
Expert

Well, that's a good question. If the metal channel length is 28" then you definitely want to go with our S795-28, no question about that. I'm just not sure about the stamp. I actually don't know if these older style balances used the same spring rating system as ours. It may be a safe bet, but I personally wouldn't gamble on it.

Instead, I recommend that you weigh your sash on a scale and refer to the chart we show on the S795-28 store page. That way you can be 100% sure. Odds are it'll be the 28C, but better safe than sorry.
