balance for double hung windows

A home owner from Stony Point NY says:

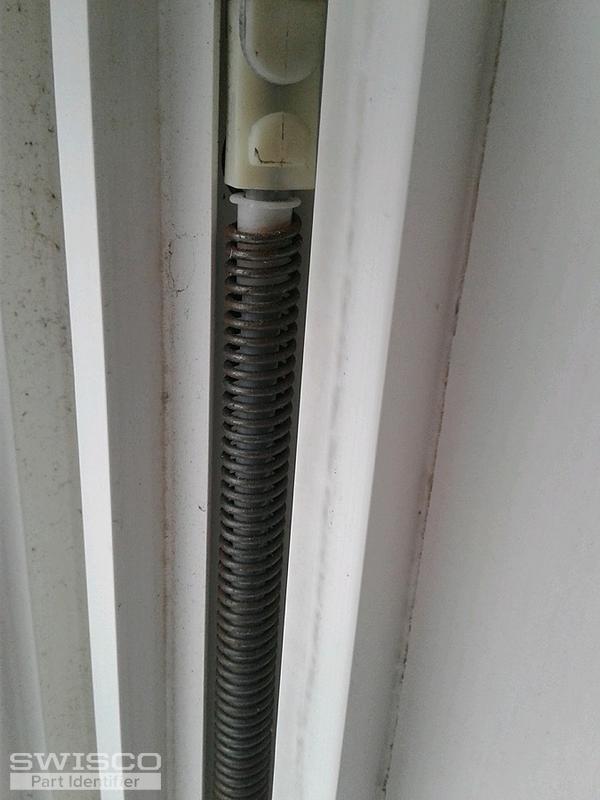

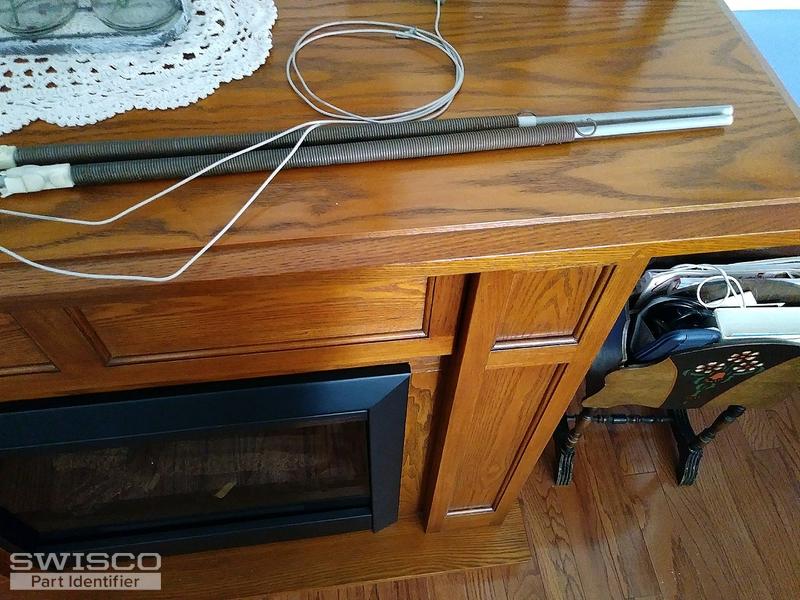

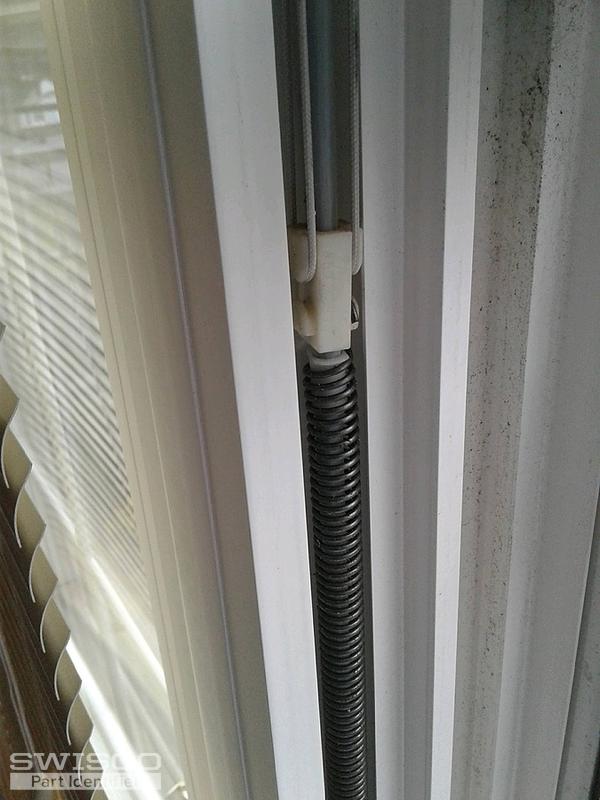

I am looking for balances for my windows. Best pictures I can get above. When I looked at you full catalog they were pictured with the other type of balances. However, when I clicked on the picture they were not there. I think they were pictured in the middle. Any help you can provide would be much appreciated! My windows are in great shape other than this. Thank you!

PS I would also need any parts that go with them.
Thumbnail of the uploaded file named 20170421_112430.jpg
Thumbnail of the uploaded file named 20170421_112515.jpg
Thumbnail of the uploaded file named 20170421_112521.jpg
Thumbnail of the uploaded file named 20190424_161815.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing. We no longer supply these old block & tackle rod balances; but they can be replaced by one of our channel balances. To know which you need, I need to see any attachments to this block & tackle rod. From there we can recommend the right replacement. Many thanks.

A home owner from Stony Point NY says:

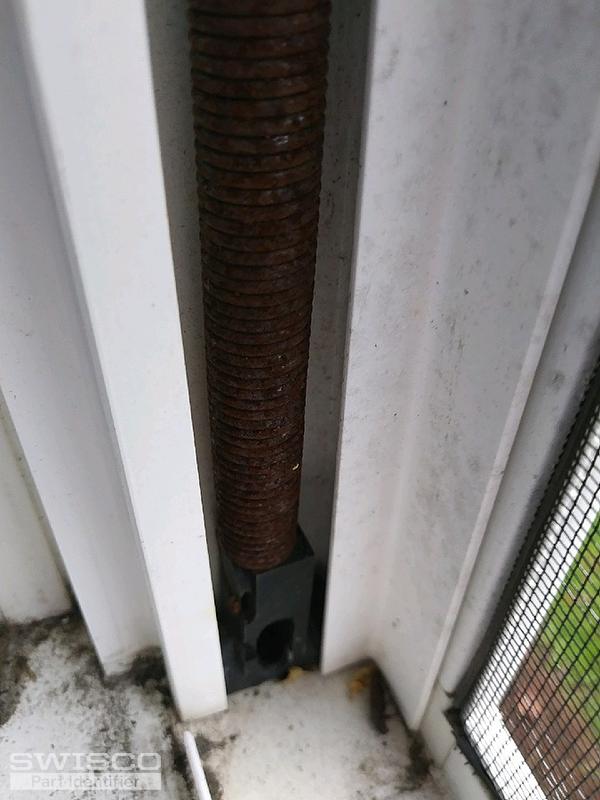

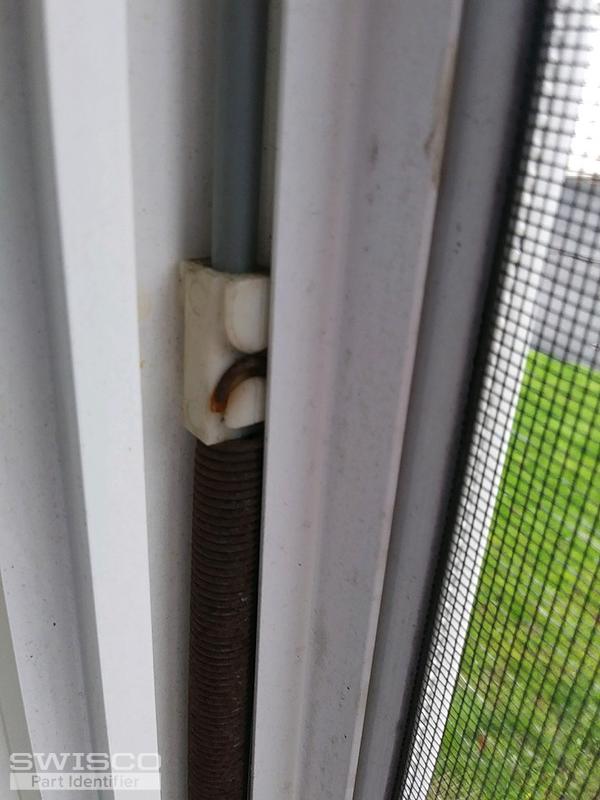

Thanks for your help. The pictures below show the parts that were attached to these balances.
Thumbnail of the uploaded file named 20170421_112515.jpg
Thumbnail of the uploaded file named 20170421_112521.jpg
Thumbnail of the uploaded file named 20190426_073914.jpg
Thumbnail of the uploaded file named 20190426_090509.jpg
Thumbnail of the uploaded file named 20190426_090516.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thank you! That's exactly what we need to see. You can use our Series 795 to replace your old balance, though the method of replacement is a little involved. I highly recommend watching the video below for a more detailed walkthrough.

A home owner from Stony Point NY says:
Thank you!
Profile picture of Bob
Bob from SWISCO responded:

You're very welcome. Do let us know if you need anything else!

A home owner from Stony Point NY says:
Hi I replace my balances in one window. Very easy thanks to your help. however, the window pops open unless it's locked. Why would this happen? thanks for your help
Profile picture of Bob
Bob from SWISCO responded:

Sorry to hear you're having trouble! It sounds like your balance is too strong. I see you went with our 27C option, which can support sashes weighing 17 through 22 pounds. How heavy is your sash? You may want to consider going down to the 27B option, which carries 11 through 17 pounds.

A home owner from Stony Point NY says:
Thanks so much! It only pops open few inches but I would like to fix the windows right. My scale may be off. I will try the 27B. I really appreciate your help.
Profile picture of Bob
Bob from SWISCO responded:

My pleasure. Let us know how you make out this time. If you need to return the old balances, you can see details of our Return Policy here.

A home owner from Stony Point NY says:
I received my new parts today. I fixed 2 windows and they work great! Thank you I really appreciate all your help!
Profile picture of Bob
Bob from SWISCO responded:

Awesome. Thanks so much for considering our business, we really do appreciate. If you need anything else, do not hesitate to ask.
