balance springs replacement, spring

A quick learner from Texas says:
December 6, 2021

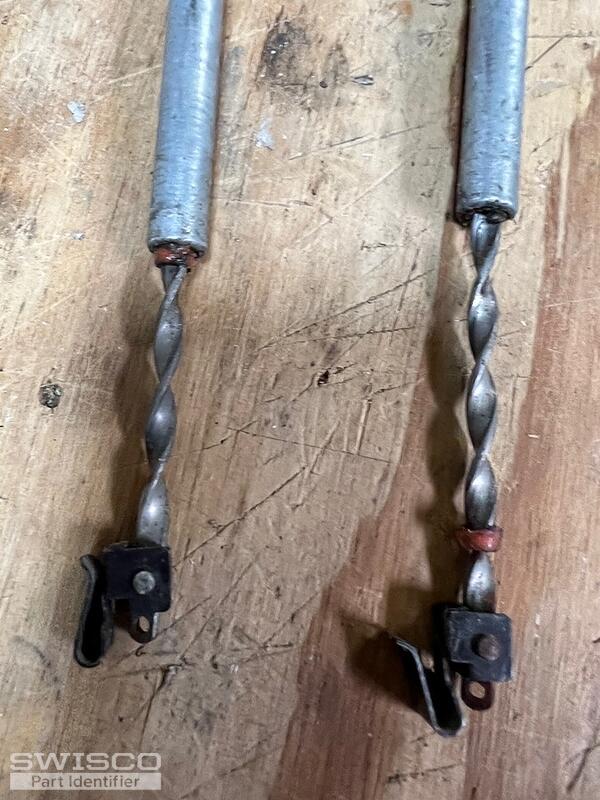

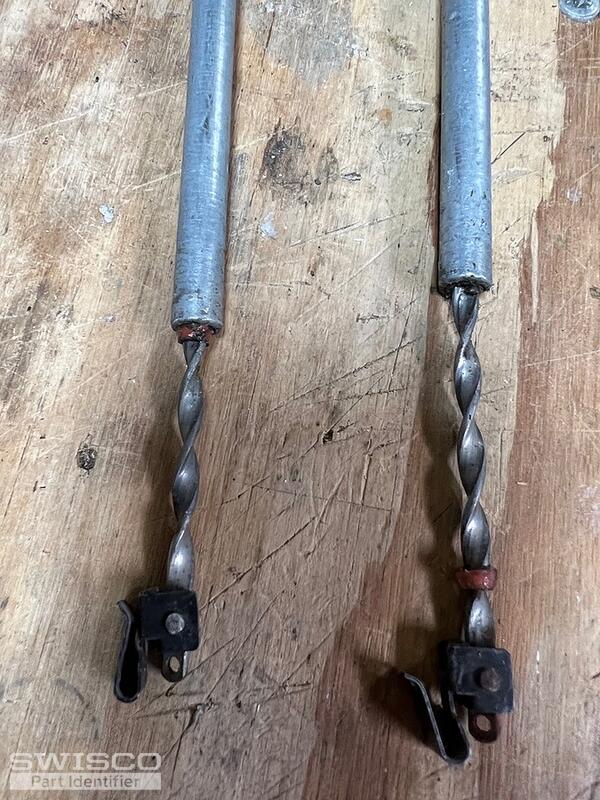

diameter of tube 3/8 , the length of the tube is 29 inch, the clip is black and kind of square, will need 1 pair shipped to Austin Texas

Robert

Thanks

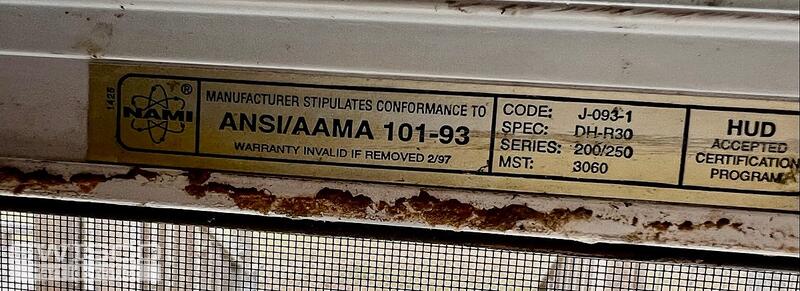

the markings on the window

CODE 5093-1

SPEC DH R30

SERIES 200/250

MST 3060

Thumbnail of the uploaded file named springs window.jpg
Thumbnail of the uploaded file named springs.jpg
Thumbnail of the uploaded file named balance spring window.jpg
Profile picture of Bob
Bob from SWISCO responded:
December 8, 2021

We used to carry this spiral balance with this particular attachment, but I am afraid it was discontinued recently and no longer available. We do have a possible replacement option: see our S400-29 3/8" Spiral Balance, along with a 17-031 Bracket that could cradle the balance rod from beneath the sash. It would require drilling a new hole and using a #8 screw. I cannot guarantee that it will work well, or if it's even possible, but we don't have anything else to suggest at this time. I apologize for the inconvenience.
Bracket, #14
Bracket, #14
17-031
$1.35
29" Series 400 Spiral Balance
29" Series 400 Spiral Balance
S400-29
$10.73
