balances -

Contractor from Surprise, AZ

I need 2 balances for an aluminum window , and 4 takeout clips.  probably Milgard.  20 years old.  27-5/8" long (measuring just the steel), 1/2"wide, looks like series 385, wings at each end.

the stamp is 27-4-BS (possibly BSI) ,pa.

The takeout clips are for an aluminum frame and break easily when removed.  replacement clips appear to be for a thicker, vinyl frame.

4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for writing in! I believe you may need a balance different from the Series 385, given the length you've confirmed. It sounds like you may have an Extended-Travel Channel Balance. I'll need to see a photo of the balance removed from the window to identify the exact replacement. Be sure to provide a clear photo of the hook/clip attached to the balance shoe as well as a photo of the take out clips you mentioned.

Please feel free to reach out with any other questions you might have.

Contractor from Surprise, AZ

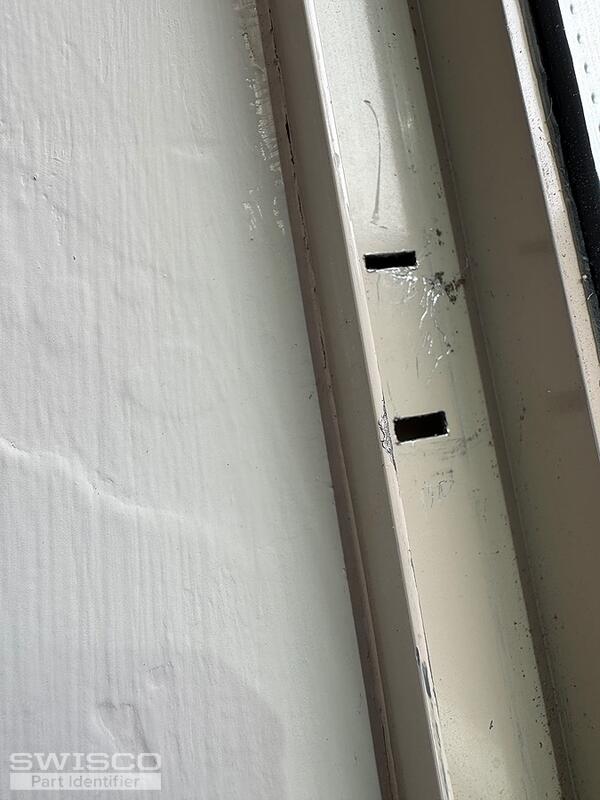

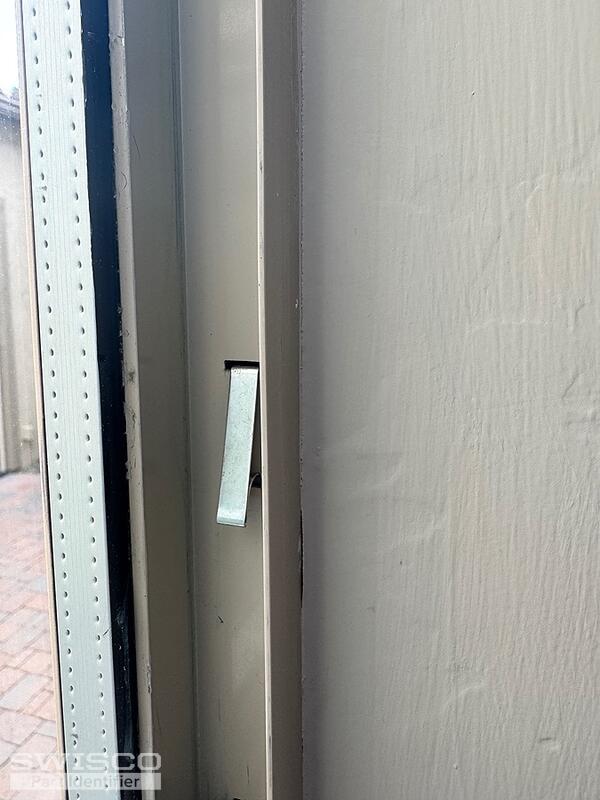

Enclosed, please find a couple of the photos of the balance that we need as well as the takeout clips. I will attach the rest in another post.Please notice that the clips are about one and 1/4 inch long and that they have an unusual top attachment for aluminum frames. Also notice that the slots for the clips are about 1 inch apart.

5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. I've forwarded an order link for the balances to your email. You'll be able to use the link to review the quote, and then add the balances to your online cart to place the order.

The clip you are searching for reminds me of the 16-002 Take Out Clip. Double check the dimensions to confirm that this is the one you need for your repairs. Keep in mind, you will need to add this to the cart along with the balances since the order links are only used from custom orders.

Alternate image for 16-002
Alternate image for 16-002
