bathroom window replacement parts

Question

Hello can you please help confirm part numbers I need to order.
Window weighs 7lbs.

I need the spiral balances, pivot shoes, the sprial balance charging tool, and maybe some of the weather strips. Can you please give me the part numbers so I can order.

thank you for your help!

Jasmine · Accepted Answer

Hey there,

Thanks for your post! Your spiral balance can be replaced with the S600-21. You'll need to select the red tip option for your 7lb sash.

These balances are compatible with a few different shoes. Unfortunately, the measurement shown in the photo does not provide enough information to properly identify the exact replacement. That said, you'll need to remove the shoe and confirm the dimensions for the width and the thickness of the shoe.

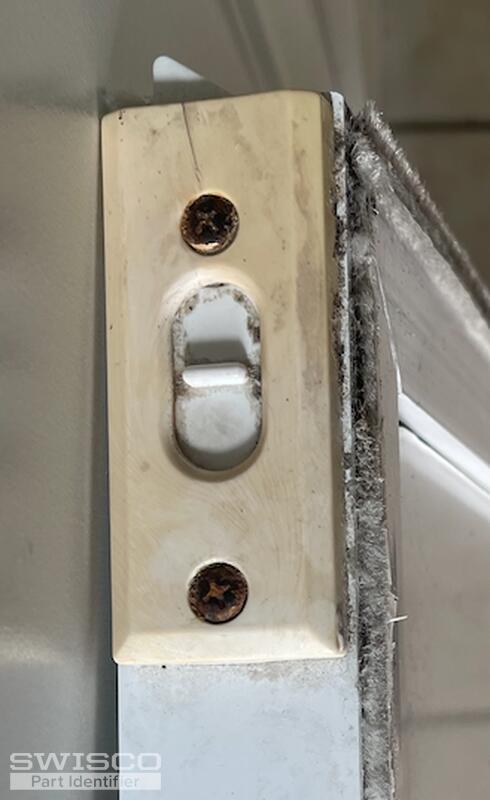

The tilt latch you have reminds me of the 26-228 and 26-229 left and right hand tilt latches. To confirm that these are the correct replacements, take a look over the dimensions below and compare them.

Alternate image for 26-228
