block & tackle

Question

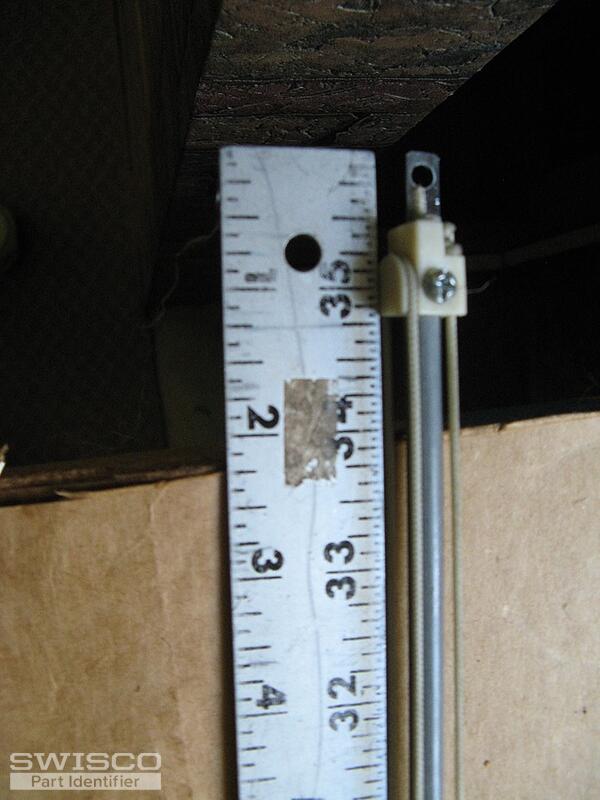

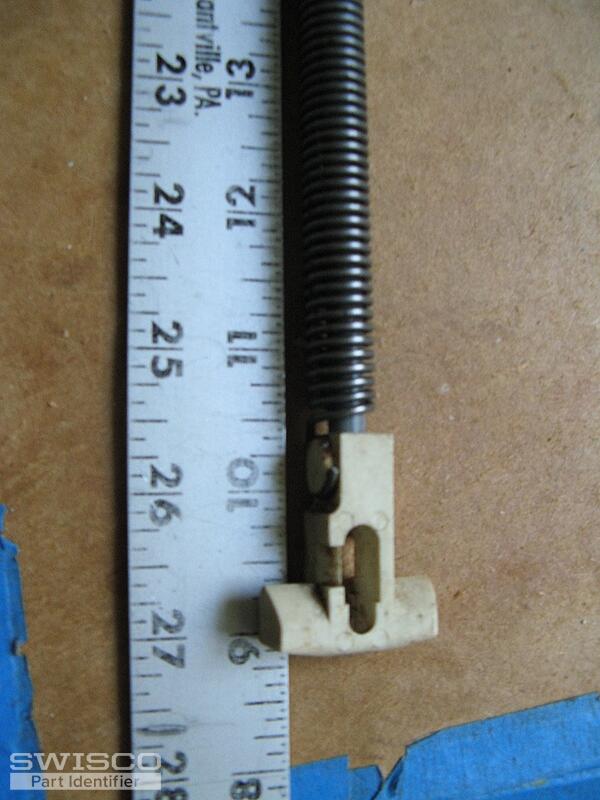

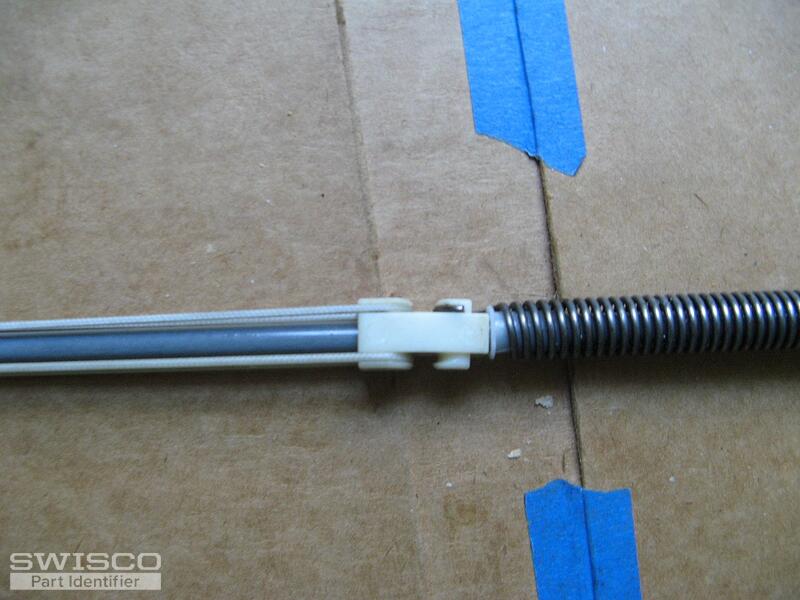

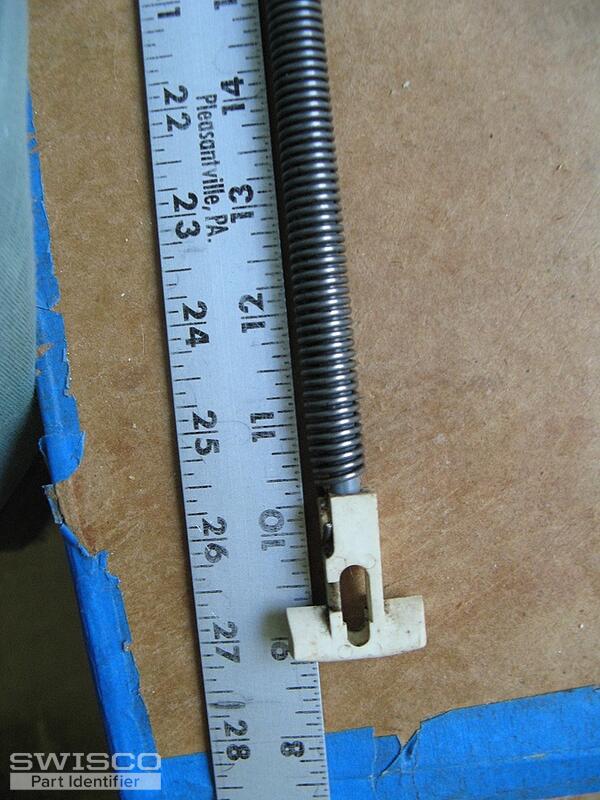

do you have a replacement for this block & tackle? 27ins. end to end

Jasmine · Accepted Answer

Hello,

Your balances appear to be the discontinued crossbow style balance. These have been converted to use our Series 795 Channel Balances.

To confirm that these balances will be a situatable replacement, you'll need to obtain a few measurements from your existing balances. These include the length of an undamaged balance, the diameter of the balance channel/tube, which should be 1/2", although there is a chance it could measure 3/8". You'll need to obtain the width of the bottom T-shaped attachment, as well. It will either be 1" or 1-1/4" across the bottom of the T shape.

You will also need to obtain the exact weight of the window to select the correct stamp option.

Take a look at the video below for instructions on this balance conversion and the information you'll need to determine the correct balances. Let me know if you have any questions.
