block and tackle balance and accessories

A home owner from Chicago, IL says:
September 18, 2023

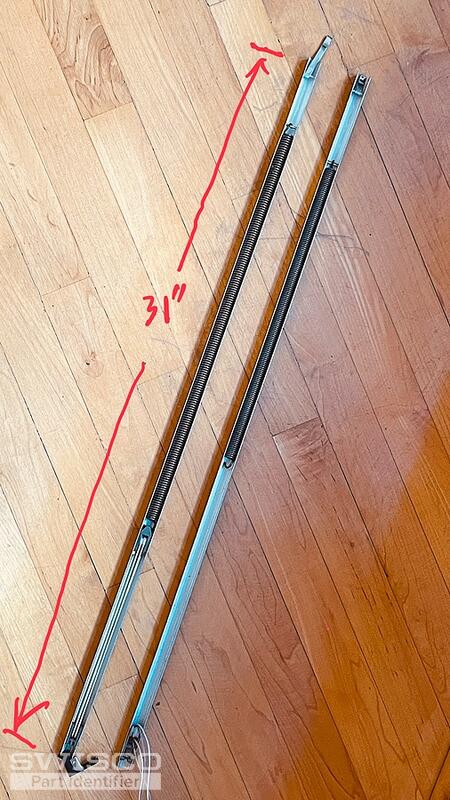

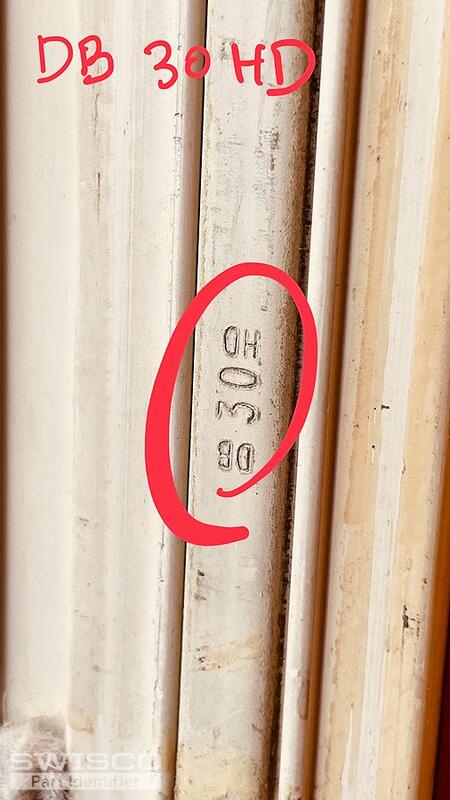

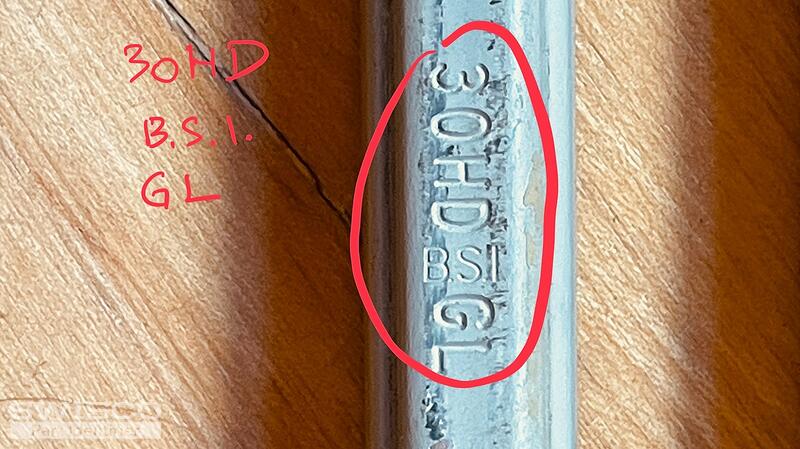

My jamb liner double hung tilt windows have pretty much two (top and bottom) identical sashes, each of which weights 22.6 lbs. I have balances that have two different stamps, one is 30HD G.S.I. GL and the other DB 30HD. I suppose they are the same and I want to know if S751-31 with 30HD option is right for my windows.
Thumbnail of the uploaded file named IMG_2071.jpg
Thumbnail of the uploaded file named IMG_2074.jpg
Thumbnail of the uploaded file named IMG_2075.jpg
Thumbnail of the uploaded file named IMG_0222 (1).jpg
Thumbnail of the uploaded file named IMG_2079.jpg
A home owner from Chicago, IL says:
September 18, 2023

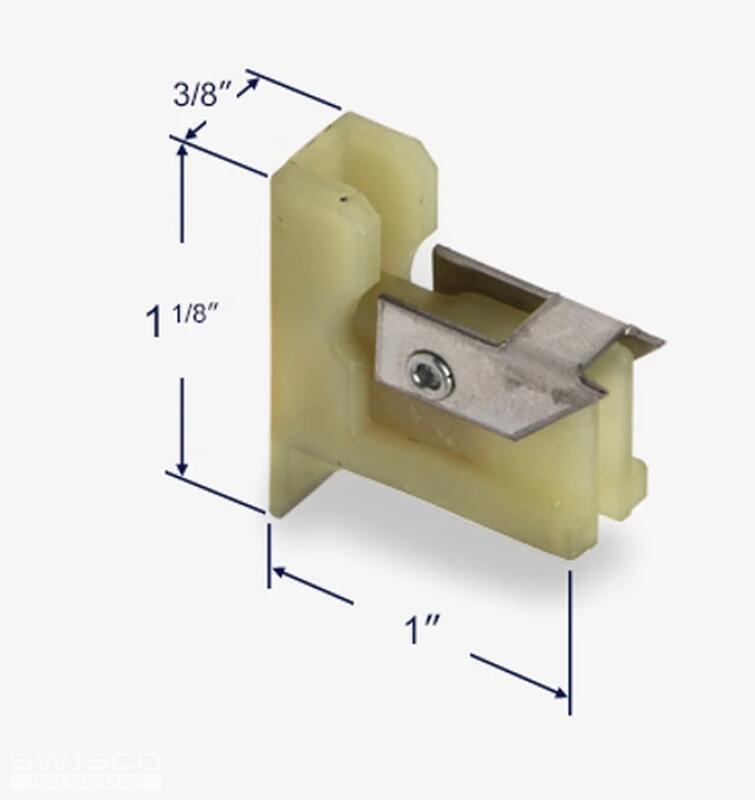

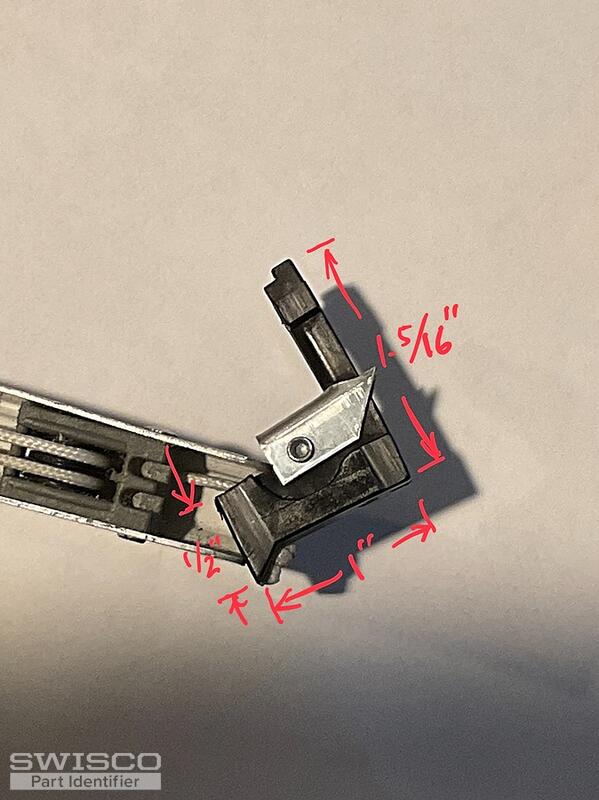

I also want to know, for extra parts, if your cam pivot pair 26-150 and knife lock shoe 15-014 are the right choice for my windows.

Thank you
Mike

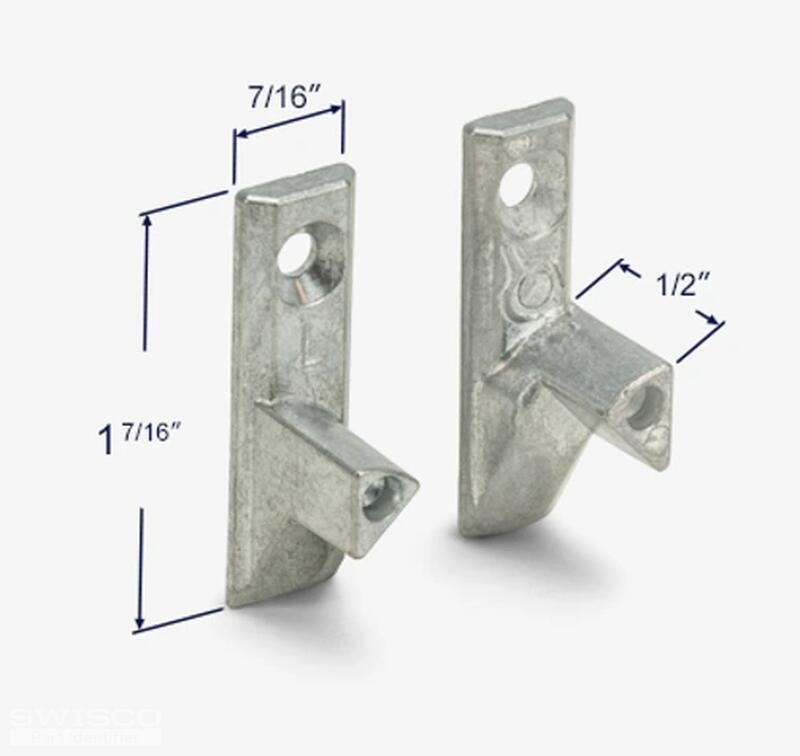

Thumbnail of the uploaded file named Cam Pivot Pair 26-150.png
Thumbnail of the uploaded file named IMG_2068.jpg
Thumbnail of the uploaded file named Balance knife lock shoe 15-014.png
Thumbnail of the uploaded file named IMG_0222 (1).jpg
A home owner from Chicago, IL says:
September 18, 2023

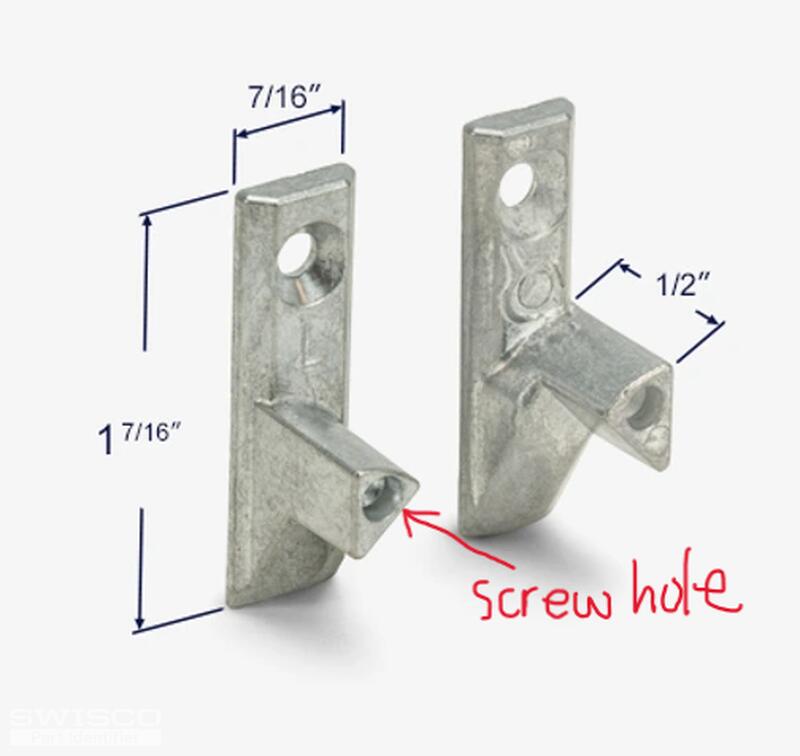

One more thing, is that a screw hole in the pivit stem?
Thank you.
Mike
Thumbnail of the uploaded file named Cam Pivot Pair 26-150 marked up.png
Profile picture of Emily
Emily from SWISCO responded:
September 18, 2023

Hi there, Mike.

Thank you for reaching out to us. It appears your balance's shoe is the 15-197 which means this will have to be a custom order. However, your 30HD stamp is calibrated for a sash weighing 23 to 29 pounds. Have you ever had any issues with operating this window? Custom orders are nonrefundable so you could always re-weigh the sash to be safe. If it is indeed 22.6 pounds, you may want to go with the 30R stamp. A pair of balances with this stamp will support a sash weighing 15 to 23 pounds. Let me know which stamp you'd like to go with and the quantity you'd like to purchase and I can draft a price quote.

The portion you're referring to on the 26-150 isn't a screw hole, no. It's just the way the pivots are designed.

A home owner from Chicago, IL says:
September 18, 2023
Emily,

Thank you for your information.

The existing balances work fine I mean the springs don't seem to me too strong. I'll order the 30HD stamped. Let me just order as it is without customizing. I'll order extra locking terminal 15-197 in case 15-014 doesn't funcation well.

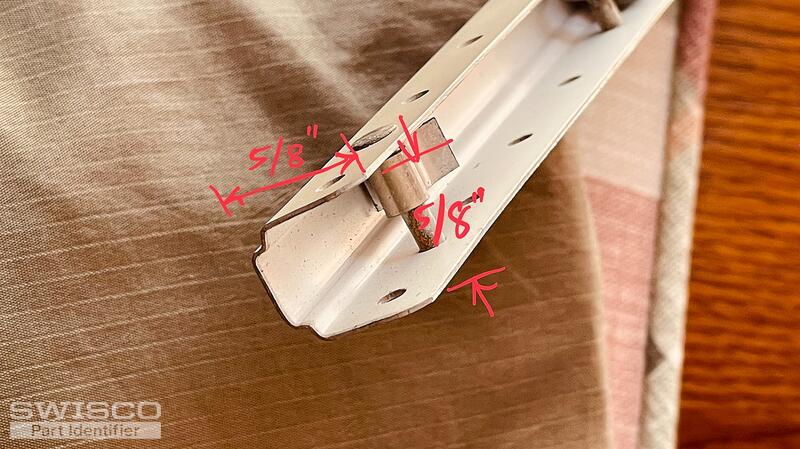

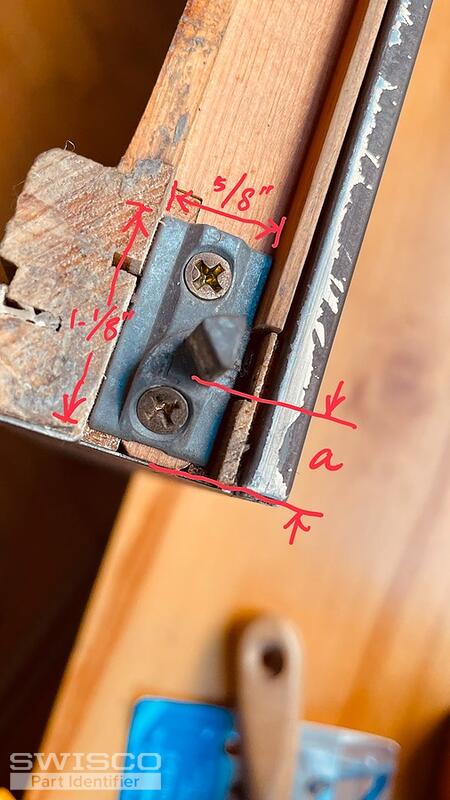

I wonder if the pivot pair 26-150 will work - the space is bigger than the base of the pivot 26-150 ; do you think one screw can hold it well? Do you have pivot pairs that are closer in size to my existing parts with two screw holes?

Your advice is appreciated.

Mike
Profile picture of Emily
Emily from SWISCO responded:
September 20, 2023

The 26-150 is the closest part we can offer, unfortunately. However, we do find that it works fine with one screw, we use it all the time.
