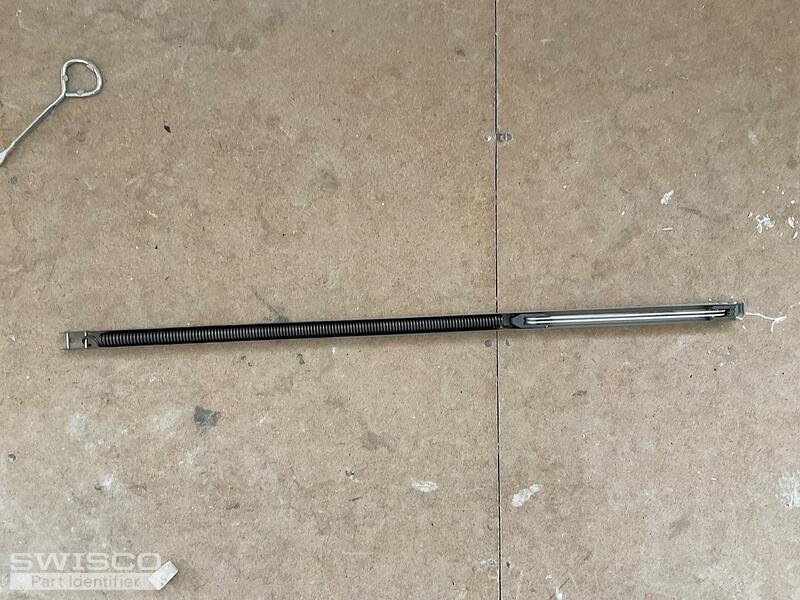

I need. (2) 22" long block and tackle for tilt vinyl windows,
I need (2) 18" long block and tackle for tilt vinyl windows.
I need 4 of the slides (feet) whatever you call the things that the window attaches to as shown in photo #1.

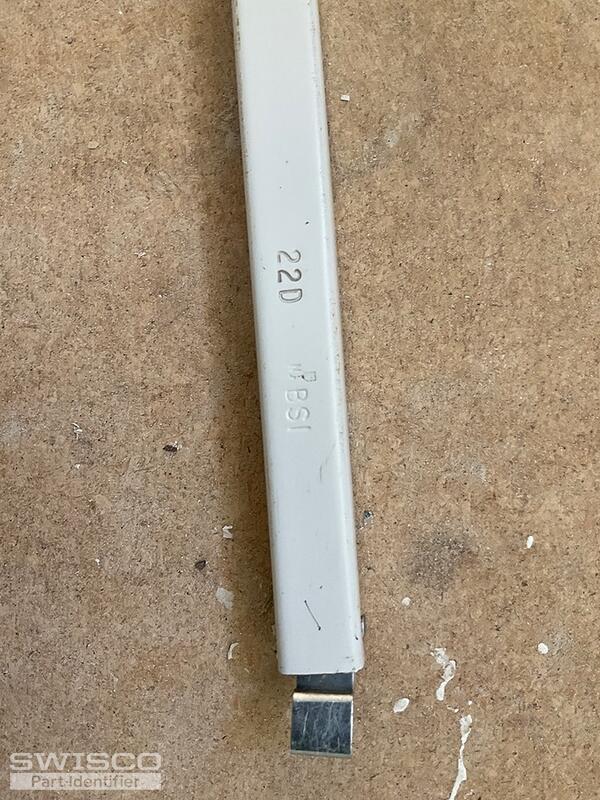

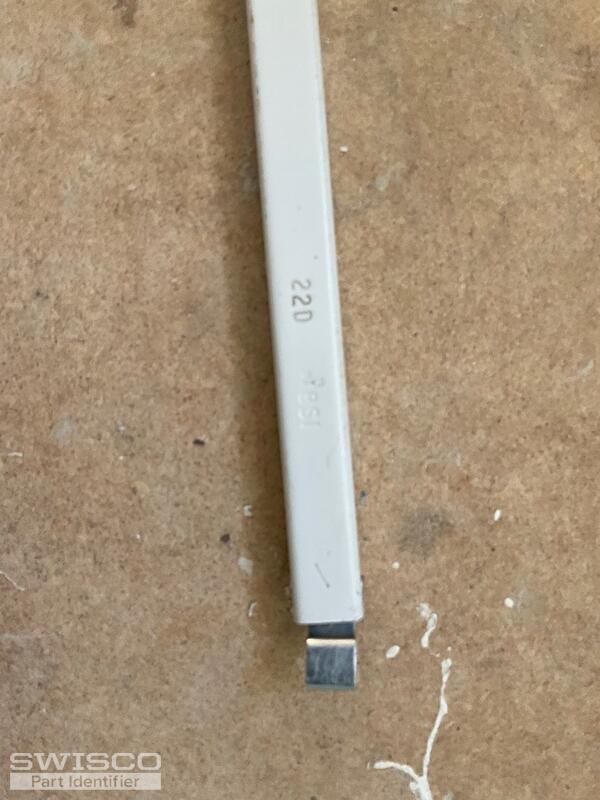

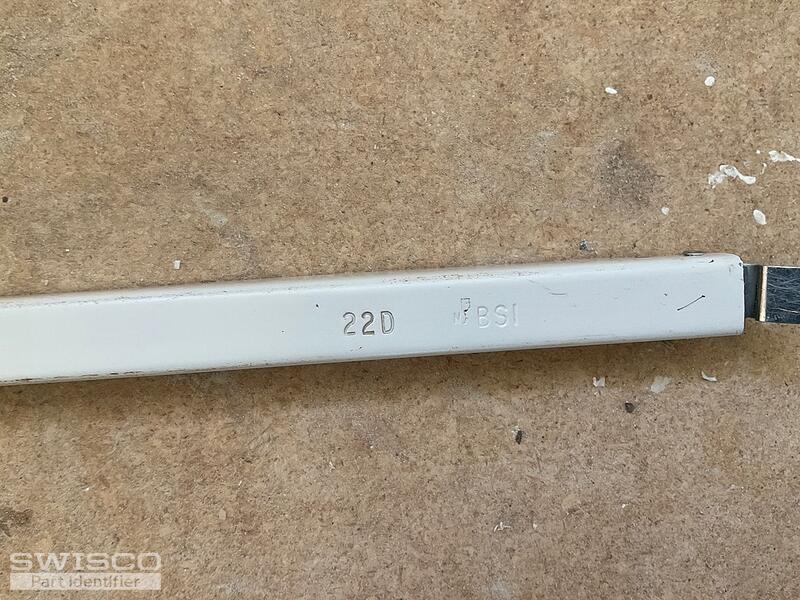

They are marked 22D , BSI, and 18G, BSI. I need asap. Window is out. Please help me quickly.
Gary
|
Jasmine from SWISCO responded:
May 30, 2023

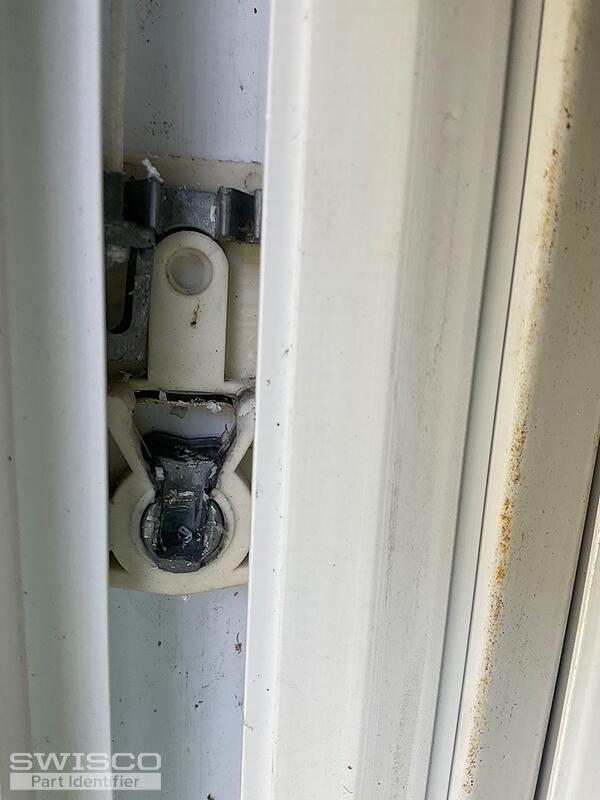

Thanks for posting! The clip you have on your balance, part 15-170, is soon to be discontinued, however, it does use the same style channel that the Series 770 Balance. This is the type of balance shown in the last photo you posted here. If you would like, I can have the balances made up as they are shown in the photos, but our Series 770 balances should work fine as a suitable replacement too. The shoe compatible with this balance, which is the one I believe is installed in the window in the last photo, would be part 15-129. You'll need to remove the shoe to compare the dimensions and confirm that this is the correct replacement.
Detail of 15-129
For the 22" balance, you can use the S770-22 with the 22D stamp for a 21 to 24lbs window. The 18" balance will need to be a custom balance as well. The stamps we carry for this balance only go up to 18D, which can only support a window weighing 18 to 21lbs. Before I submit the request to confirm pricing and availability, please let me know how you would like to move forward with the balance attachments. |
