broken coil

A home owner from Jamaica says:
Please help me find what I need , the coil has broken
Thank you,
Anil
Thumbnail of the uploaded file named IMG-20200709-WA0036.jpeg
Thumbnail of the uploaded file named IMG-20200709-WA0034.jpeg
Thumbnail of the uploaded file named IMG-20200709-WA0032.jpeg

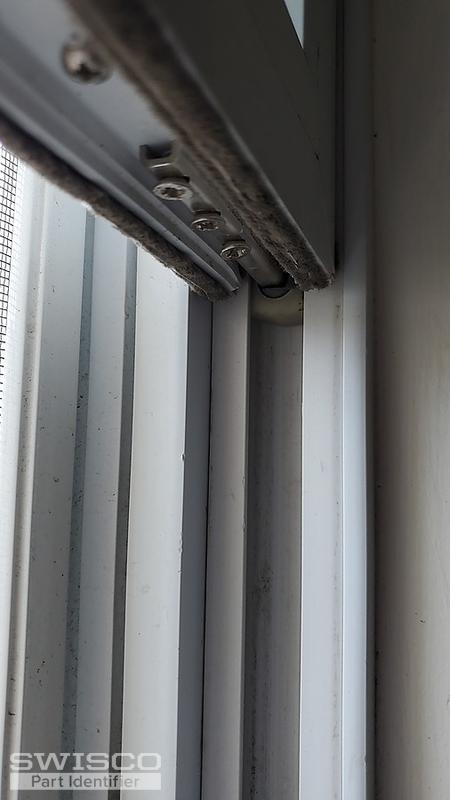

Thumbnail of the uploaded file named IMG-20200709-WA0030.jpeg

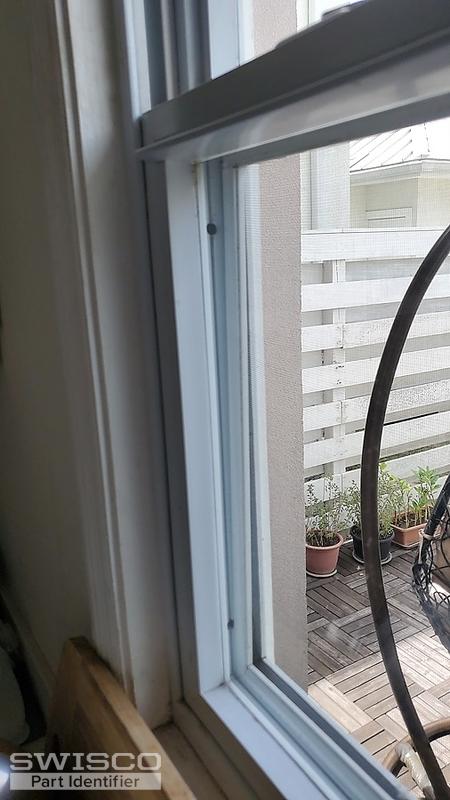

Thumbnail of the uploaded file named IMG-20200709-WA0028.jpeg
Profile picture of Tom
Tom from SWISCO responded:

I'm very confident that we can supply a working coil balance system for you, but before I recommend anything, I'll need a clear picture of the pivot shoe to which it attaches. It is very obscured in your current photos and I can't make it out.

Please also tell me the thickness of the spring itself.

Once I have those two pieces of information, I can find you a balance spring that will be compatible with your window.

A home owner from Jamaica says:
Hope this helps

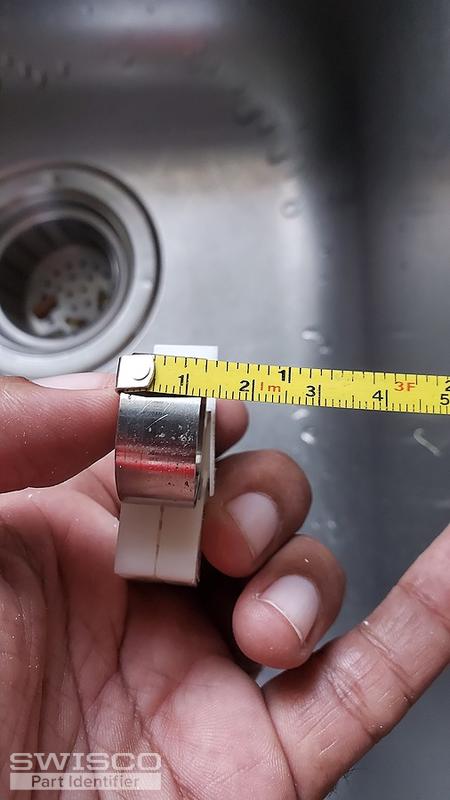

Thumbnail of the uploaded file named 15947660339584307604913211146552.jpg

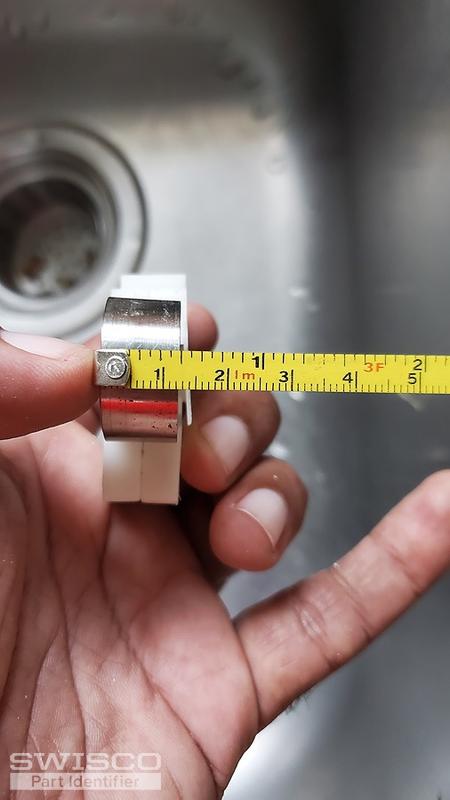

Thumbnail of the uploaded file named 15947660647432047466012553728315.jpg

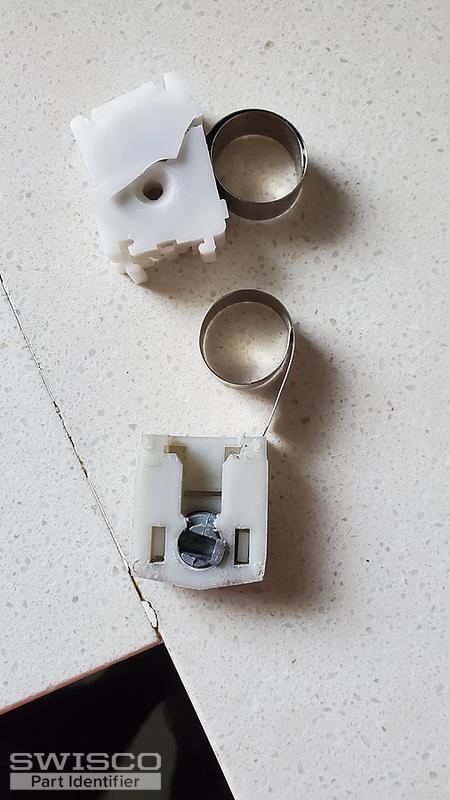

Thumbnail of the uploaded file named 15947660990236485438523445408685.jpg
Profile picture of Paul
Paul from SWISCO responded:

Your pivot shoe looks similar to our 15-199. Please compare our dimensions to yours to confirm. The coil spring housing, meanwhile, is the 15-086. Finally, as for your coil, I recommend the Series 160. You need the stamp on your old spring to choose the best option.

A home owner from Jamaica says:

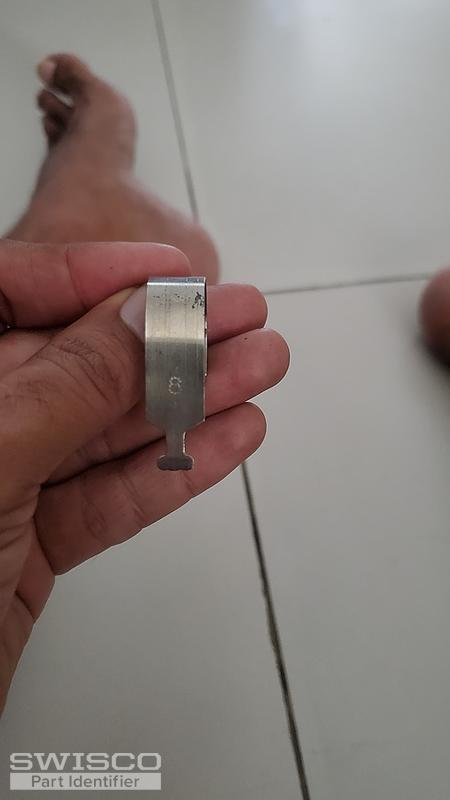

I only see the number 8 on the coil ,
The rest all looks good
Thumbnail of the uploaded file named 15956261958127799370471390906778.jpg
Profile picture of Paul
Paul from SWISCO responded:

Thank you. I'm afraid they don't make an 8 pound option for this spring anymore. This must be an older version. I think you can still use our S160-7, but note that these only carry 7.5 pounds per spring, instead of 8 pounds. I honestly don't think you'll notice a big difference, but it's something to keep in mind.

A home owner from Jamaica says:
Thank you for your help , I installed the parts they worked just fine.
