casement handle for SilverLine windows
Hello,

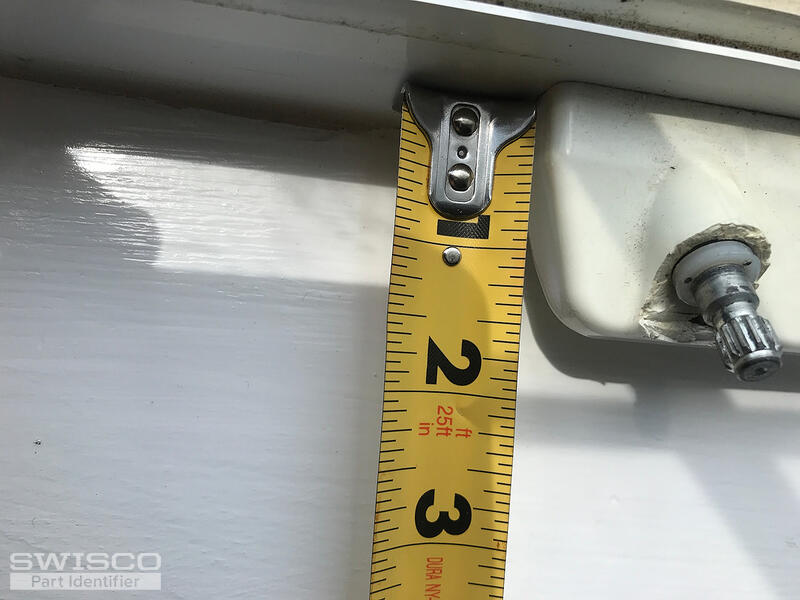

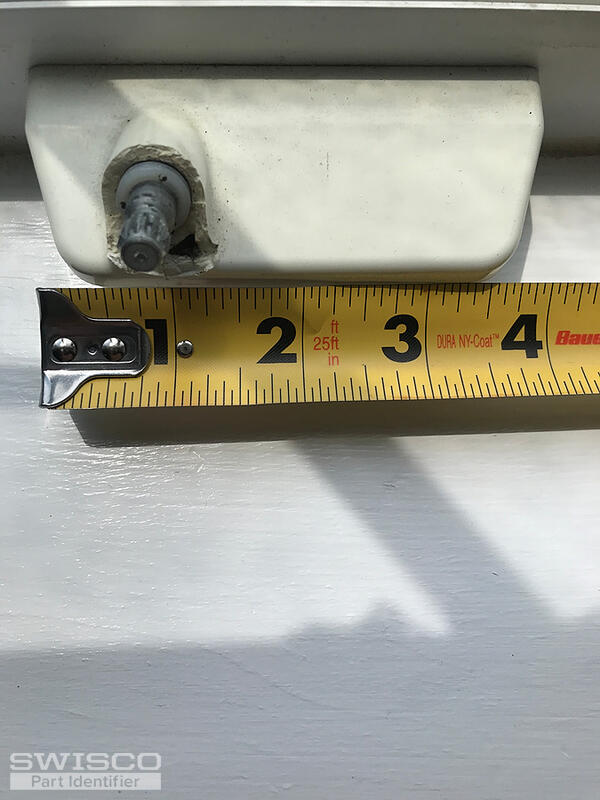

It looks like the spline that the handle attaches to has come loose from the base, meaning the entire assembly will need to be replaced. Your GU operators are no longer available but see our conversion video below to install our 39-315 replacement. Thanks for posting!
Unforutnately, the manufacturer information does not identify the hardware but it does look like you have a discontinued GU operator as we mentioned in our last responses. The 39-315 shown in our conversion video would be our best replacement option.

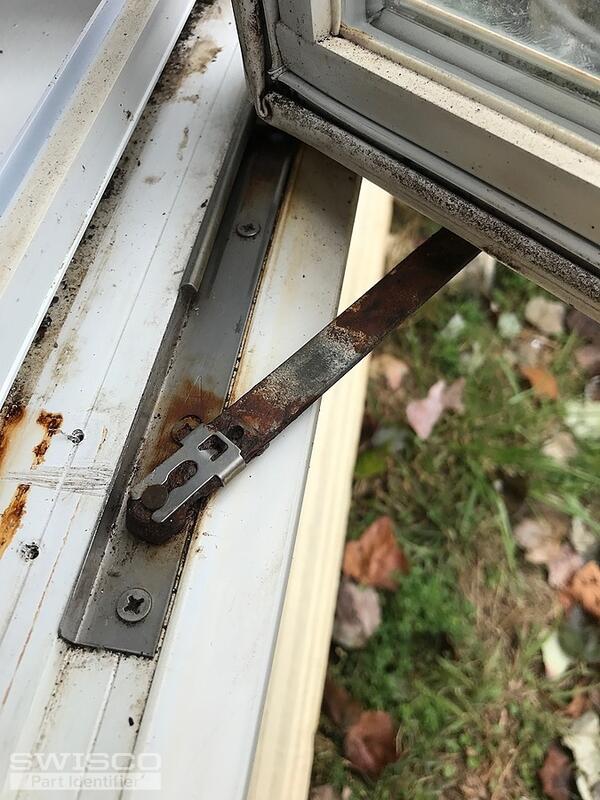

On a side note, some of the secondary arms are rusted on my window. Do you have replacements and clips for these also (see attached photo)?
I'm happy to hear that everything worked out well so far. As for your hinges, take a look at the 36-048. this should work as long as the 10" base that attaches to the sill matches yours.

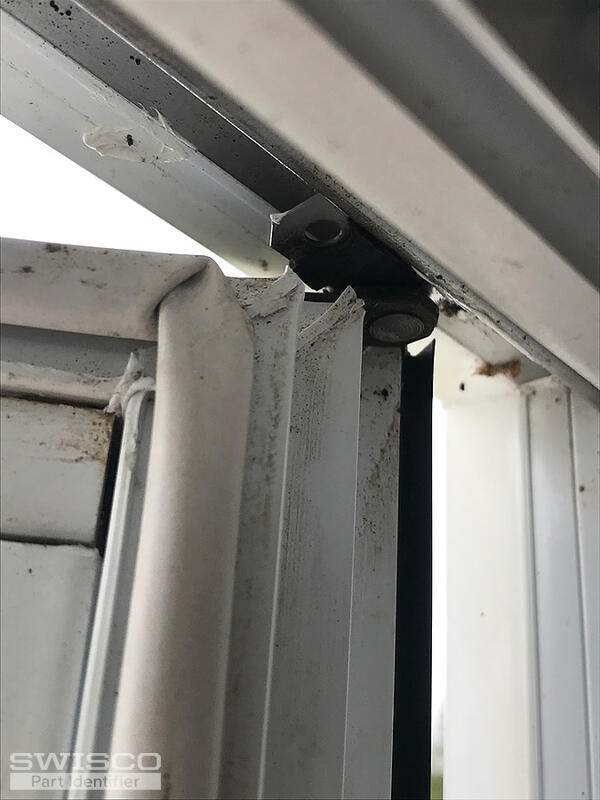

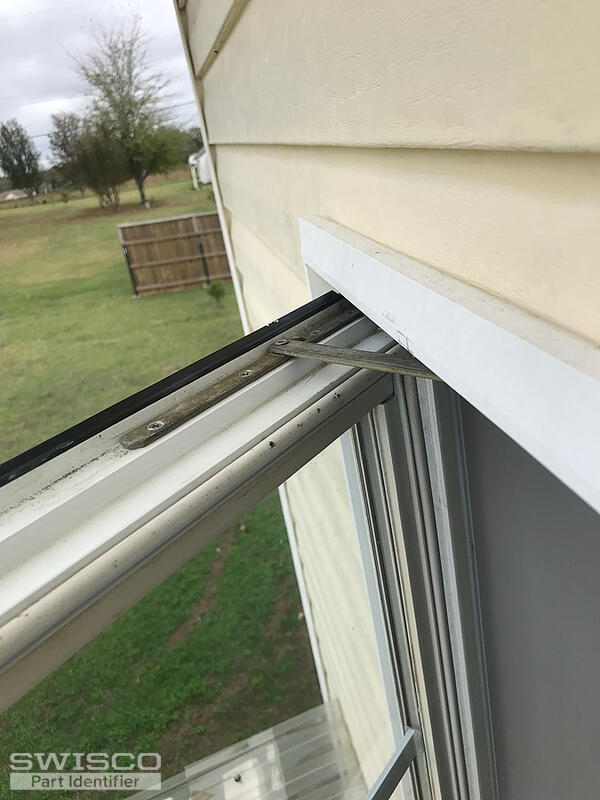

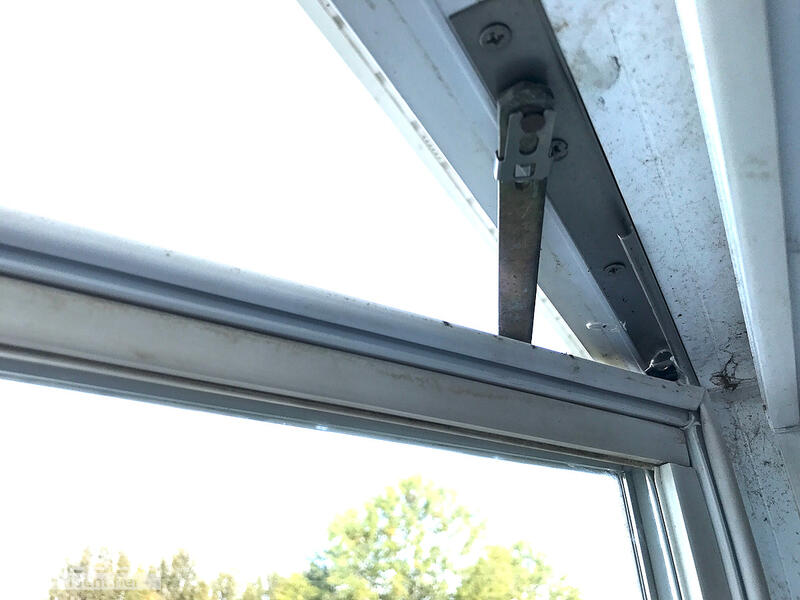

I have attached some pictures. The slide mechanism mounts to the top of the window with 4 screws, and connects to the frame with the black sliding piece and an arm with a clip. IMG_4217 shows the black plastic piece that comes out of the slide when the window gets to about 75% of open.
Unforutnately, the black slide is not available separately but the 36-048 hinge set that we mentioned in our last response comes with hinges for the top and bottom of the sash. As long as you replace both hinges at the same time and they use the same 10" base, you should be good to go.
