Eagle casement window operator

A quick learner from Nebraska says:
This is from an Eagle casement window built in 2011, has the Aseberry/truth logo the base has C-1081-101 on it, the long arm is about 10.5" tip to center of base. The short arm has S-1081-56 on it and an L .
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for writing in! I am unable to confirm the replacement operator you'd need based on the brand or the manufacturer stamp. There are a few different operators that populate when I search for that information. I'll need to see a photo of the entire operator to make an accurate replacement recommendation.

May I please see a photo of your existing casement operator? I'll need to see a photo of the body of the operator as well as the arms and how they attach to the window.

Let me know if you have any questions.

A contractor from Nebraska says:

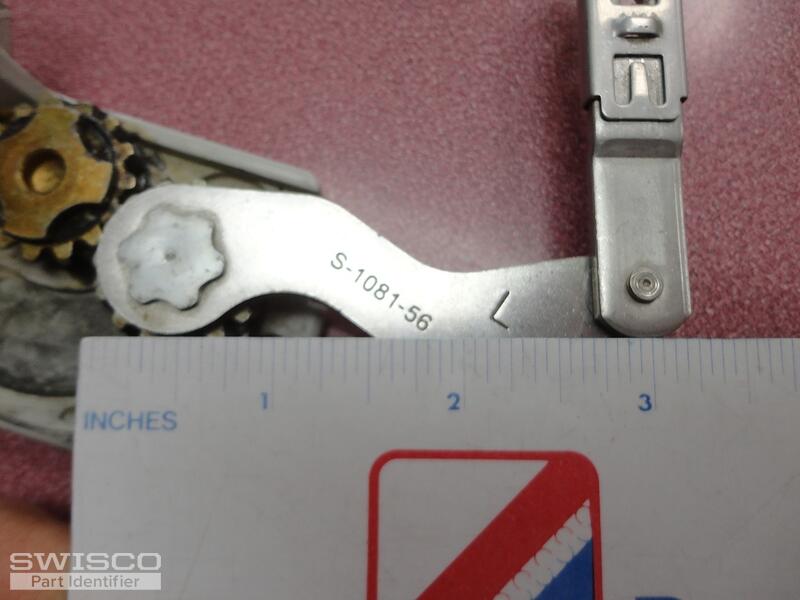

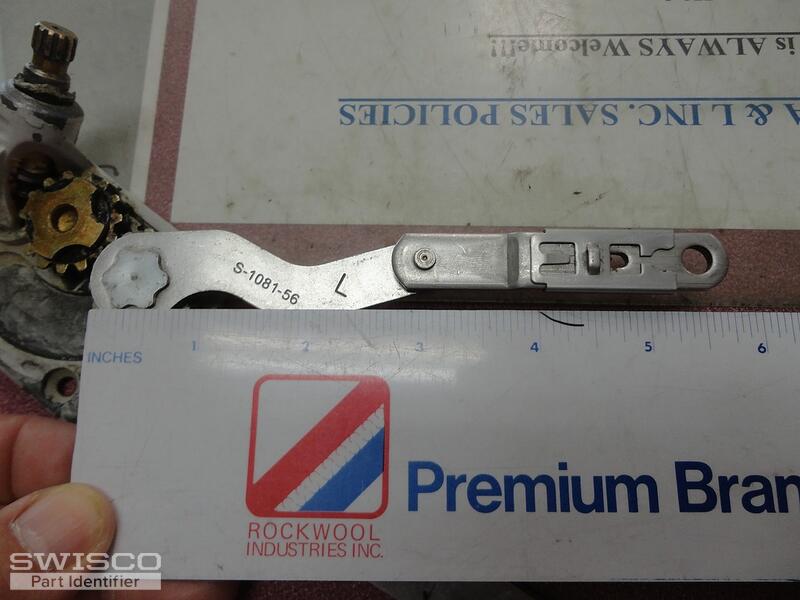

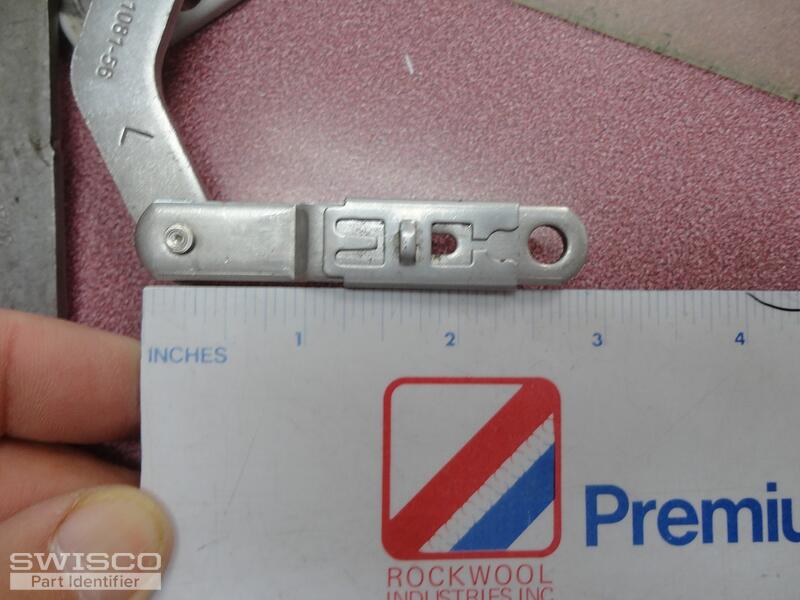

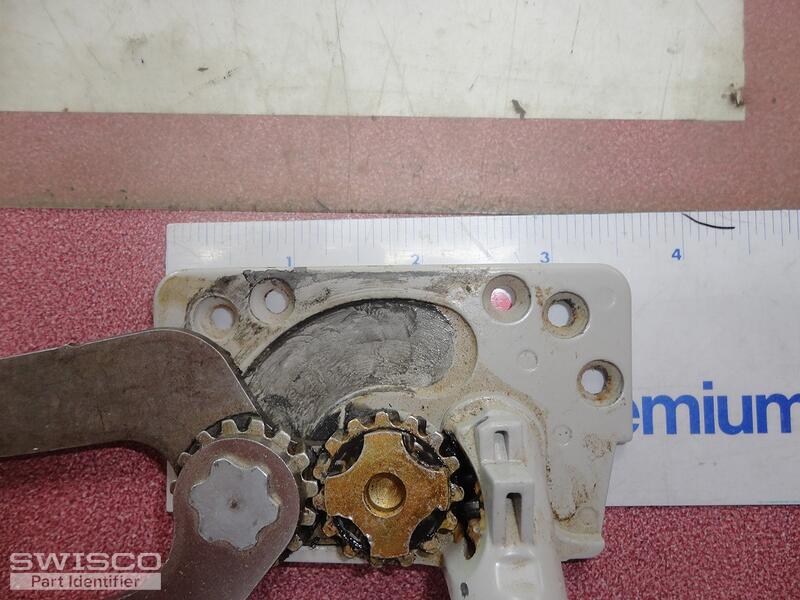

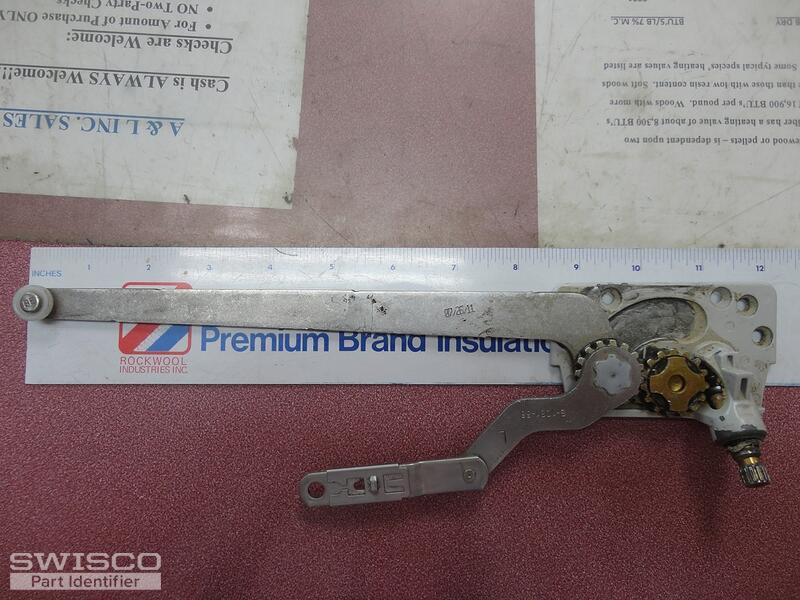

Thumbnail of the uploaded file named Kildow Dave operator 001.JPG
Thumbnail of the uploaded file named Kildow Dave operator 002.JPG
Thumbnail of the uploaded file named Kildow Dave operator 003.JPG
Thumbnail of the uploaded file named Kildow Dave operator 004.JPG
Thumbnail of the uploaded file named Kildow Dave operator 005.JPG
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for the photos. Your casement operators looks like it might be the 39-334 with the extra short link arm. The opposite handed version is part 39-333. Look over the dimensions and compare them to your existing hardware to determine if this is the right replacement.

DImensions for 39-334
DImensions for 39-334

The compatible cover is part 39-107 and the handles are the 39-114L non-folding or 39-205 folding crank handles. There is also the 39-107FK folding handle and cover kit.
