casement window crank

Start a new Discussion

Home Owner from USA

Aug 22, 2016 7:24 am

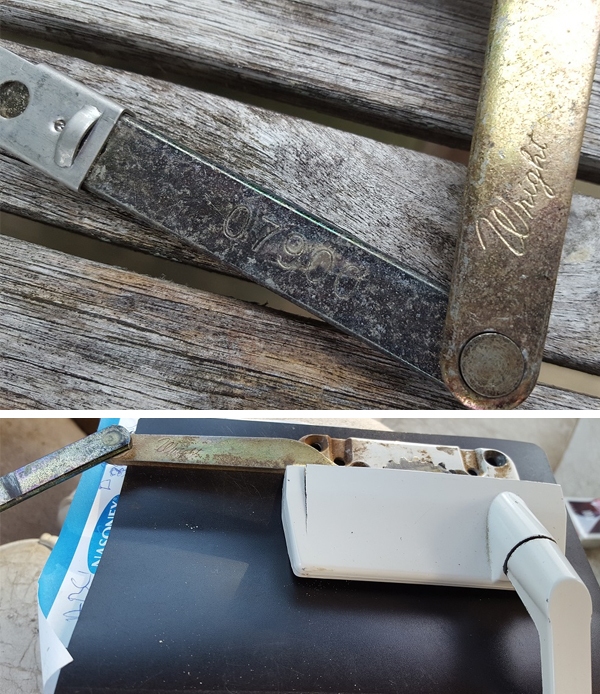

User submitted photos of a window operator.

9 Replies

Tom from SWISCO

Aug 24, 2016 10:33 am

I'm a little confused by your picture. In the first, it looks like the link arm is under the gear arm. However in your second picture, the link arm appears to be above the link arm. Can you confirm which configuration you need? It may seem like a small detail but it is important.

Home Owner from MiddleburyConnecticut

Aug 24, 2016 11:15 am

Hi Mike the link arm is above the gear arm like in second picture!

Quick Learner from Middlebury Connecticut

Aug 24, 2016 11:24 am

Hi Tom I apologize I called you mike !Tom the second picture is right ,the link arm is above the gear arm.

Tom from SWISCO

Aug 25, 2016 11:34 am

Thanks for clarifying. How about our 39-387 and 39-388? These looks like they could be what you need.

Home Owner from Middlebury Connecticut

Sep 1, 2016 5:41 am

Hi Tom please get back to me on reference #d73007.Tom I been emailing you and I needto know the splitarm casement crank you suggested will work seeing the sizes of the arms are different from my crank!

Tom from SWISCO

Sep 1, 2016 11:36 am

Thanks for getting back to us. I'm afraid I haven't received your emails, sorry about that! Can you confirm the difference in size? Exactly what is the length of your existing arm?

If the difference is too much, you may be able to swap the link arms out. What we've done in the past was drill out the arms on both, then install the old link arm on the new operator using the 62-014 rivet. That may be a possibility worth considering.

Home Owner from Middlebury Connecticut

Sep 1, 2016 1:25 pm

Hi Tom it's Nick my reference#is d73007my casement crank measure41/2 long on the gear arm and 31/2 on the connecting arm.
Toomey the crank you suggested is the39388but it measures43/4 on the gear arm by 31/8 on the connection arm.Do you think it would work?

Tom from SWISCO

Sep 1, 2016 2:03 pm

That difference may be a bit too significant. You could adjust the mounting bracket to which the link arm attaches, if you have the room. You could also try swapping the arms like I suggested above. I'm sorry we couldn't offer a closer replacement.
