Hello Swisco,

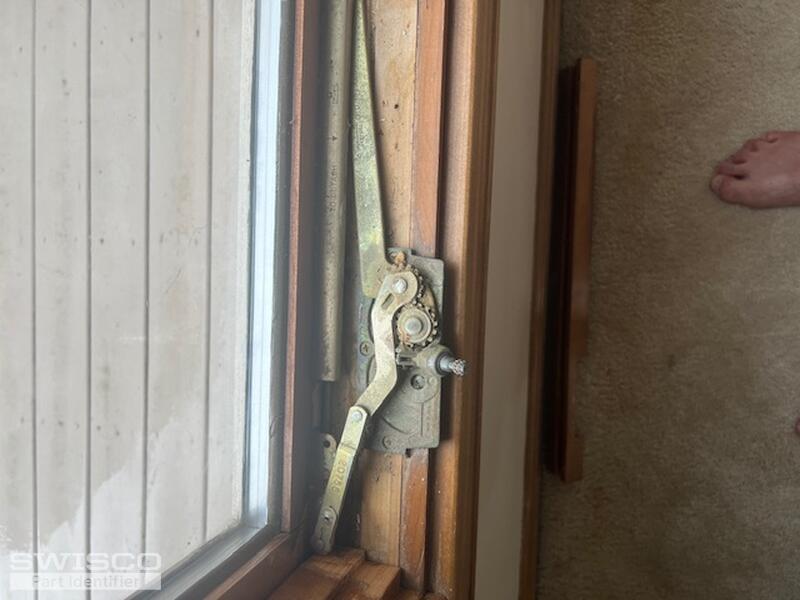

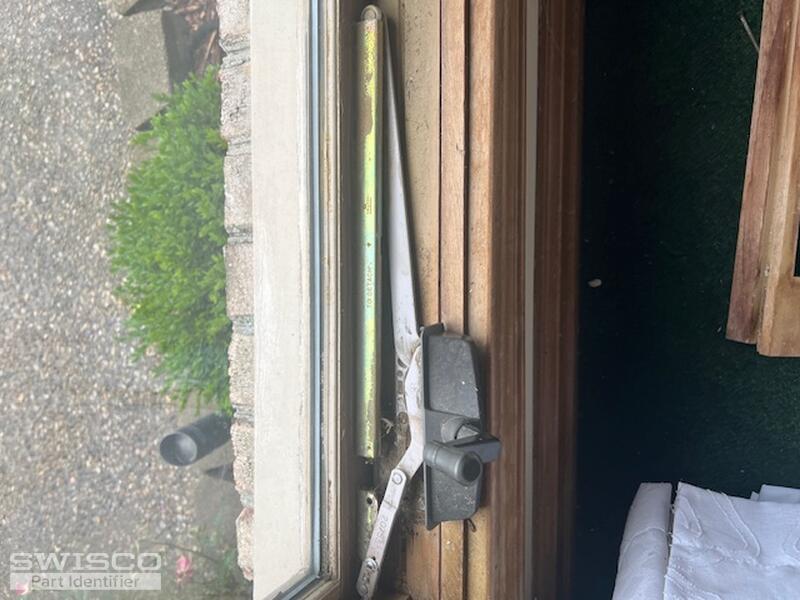

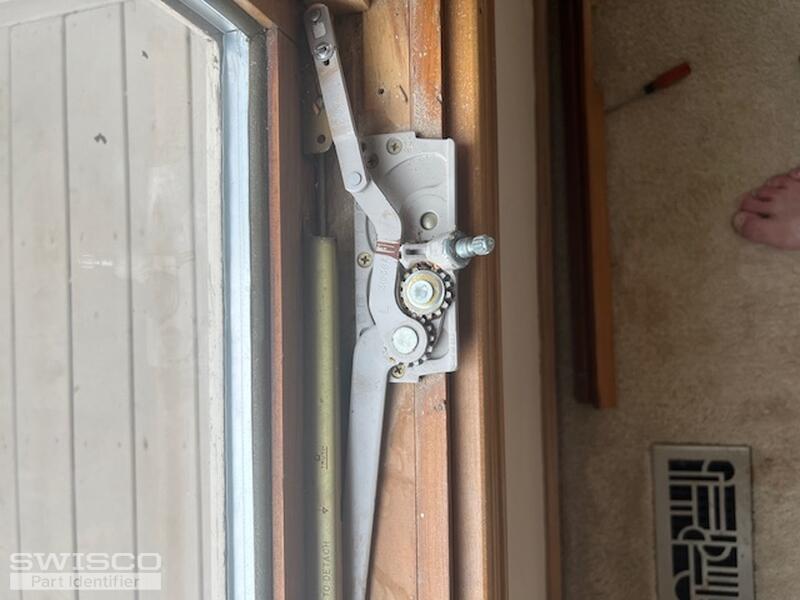

I need two each of the mechanisms pictured in 8027.jpg and the 8028.jpg and one each of the mechanisms pictured in 8030.jpg and 8032.jpg.
Please email prices, shipping, etc. I live in a Fishers, IN
Thank you,
Brett
casement window cranks
Contractor from Fishers, Indiana
Aug 10, 2024 11:58 am
4 user uploaded images
4 Replies
Casey from SWISCO
Aug 27, 2024 11:24 am
Hello,
Your photos resemble the 39-031 and 39-032 EntryGard operators. Review the dimensions below, paying close attention to the length of the shorter link arm. Note that both parts use the 39-107FK handle and cover kit. Pricing can be found directly on our product pages. You'll also be given multiple shipping options to choose from at checkout. Thanks for posting!
Dimensions for 39-031
Contractor from Fishers, Indiana
Aug 28, 2024 11:00 am

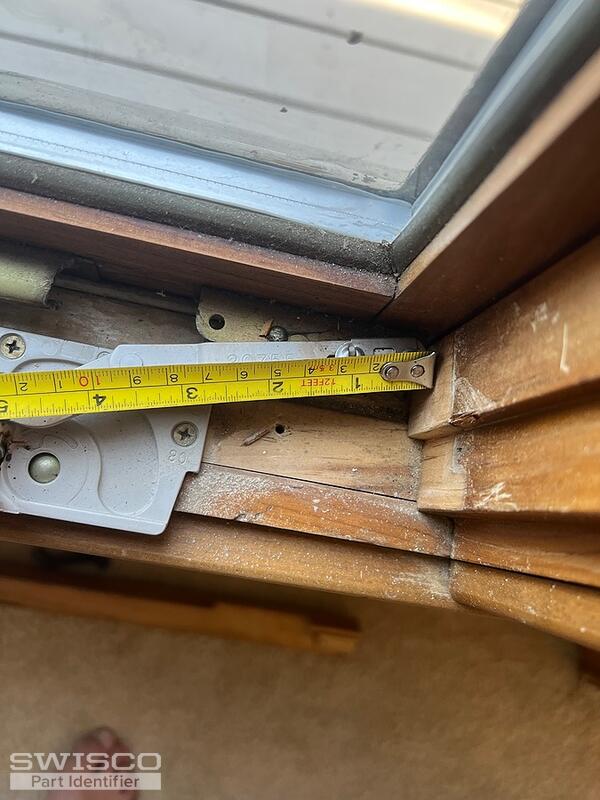

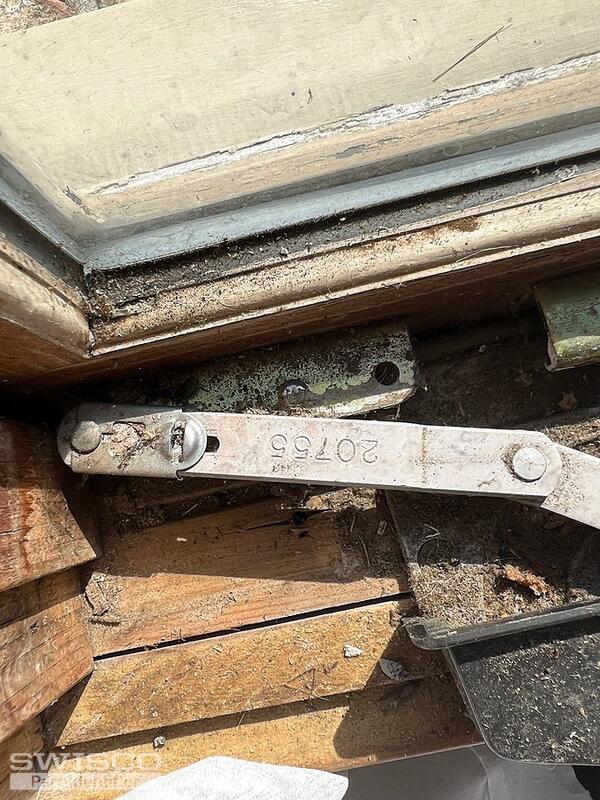

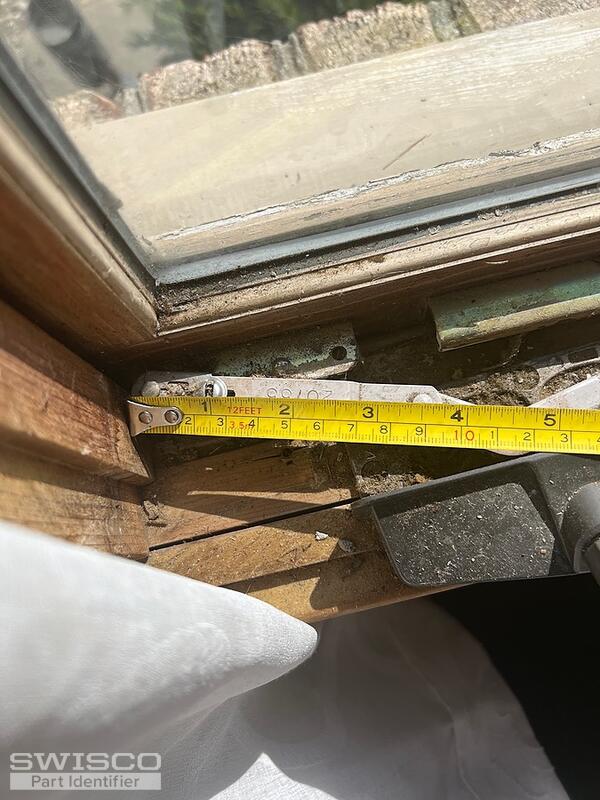

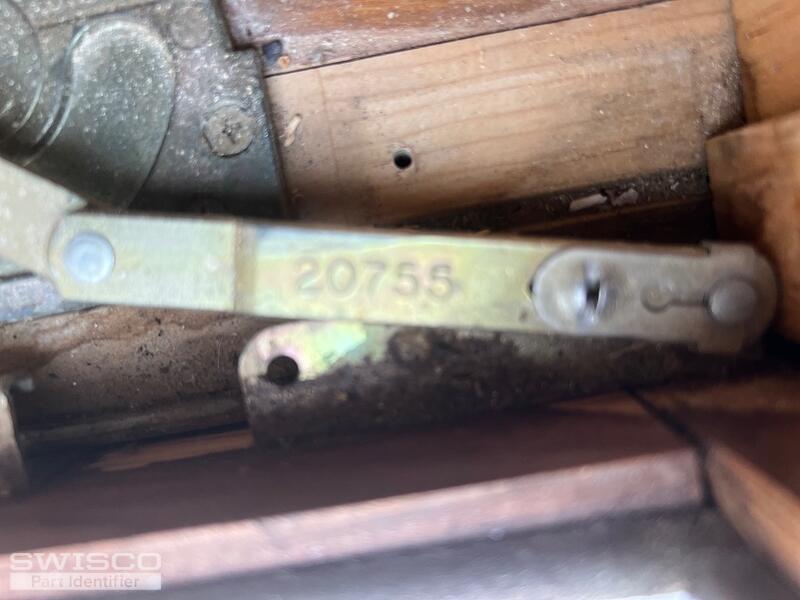

The long arms seem to be the correct length, but the short arms are not. My short arms are approximately 3 3/4" and are stamped 20755.
5 user uploaded images
