casement window hardware replacement.

Question

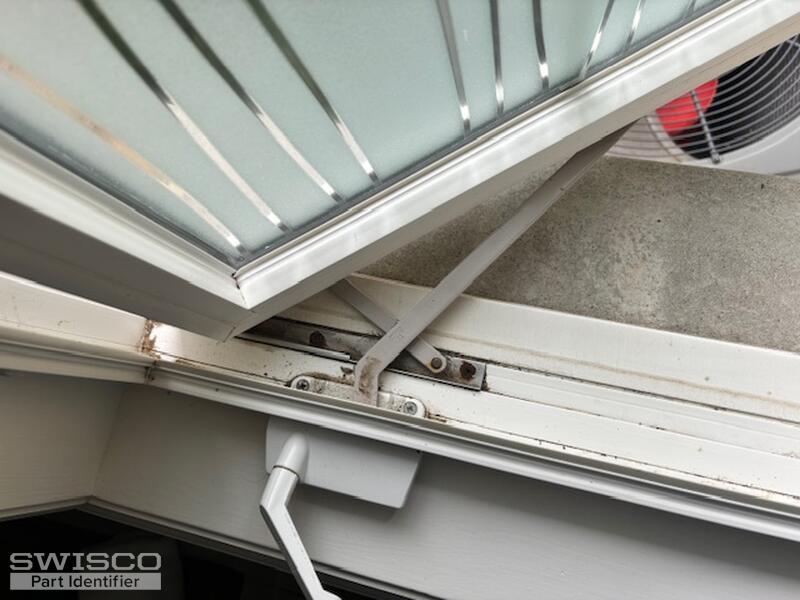

our vinyl windows are approx 30 years old.  the hardware on some of the windows is now rusted and needs replacing.  I will need the mechanical opener and slide rails.

Emily · Accepted Answer

Hi there!

This reminds me of an older version of the 39-014 and 39-028E operators. As for the hinge, start by taking a look at the 36-048. Review the specifications for our parts and see how they compare with your old hardware.

Please note that we always recommend replacing the top and bottom hinges at the same time.

Dimensions for 39-014

Dimensions for 39-028e

Detail of 36-048

Additional dimensions for 36-048
