casement window not the window crank

Home Owner from FL

Sep 18, 2023 5:59 pm

I am looking for a 5" pin to pin straight piece that guides the opening of the window. They are at the top and bottom of the windows. The p/n for the arm is 6492P. It seems to be riveted to the rail that screws to the bottom of the window and has a clip on the window crank side. I have Hurd Casement windows with Wright Cranks, p/n 07900. I also need 1 LH and 1 RH of the cranks. i think 39-387 and 39-388 matches the cranks.

6 Replies

Lauren from SWISCO

Sep 20, 2023 9:15 am

Hello, thank you for posting,

I believe you may be referring to the casement window hinges, but to further review, are you able to provide pictures of the part in question? Thank you!

Home Owner from FL

Sep 20, 2023 10:39 am

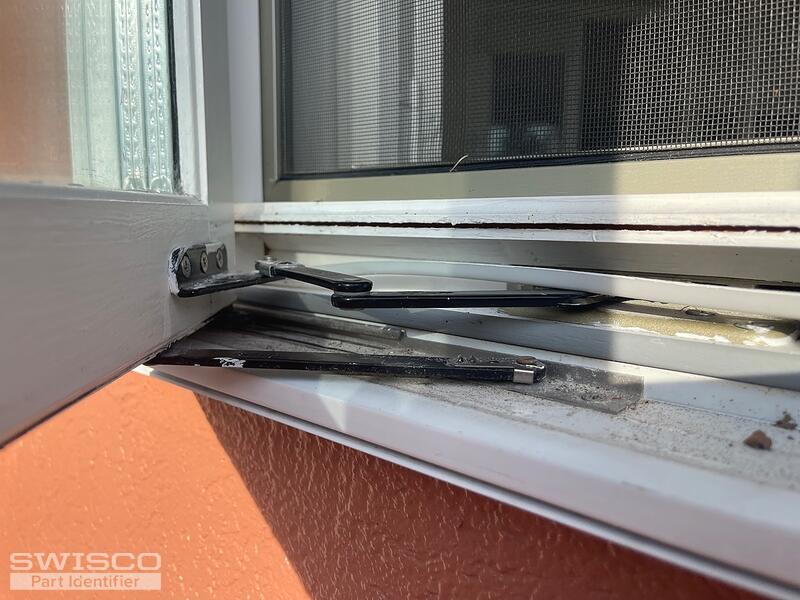

Here they are

4 user uploaded images

Lauren from SWISCO

Sep 21, 2023 10:52 am

Thank you,

I agree with your assessment of the 39-387 and 39-388 operators as long as the dimensions match up. For the hinges, take a look at the 36-048 2- bar hinge set. Compare the overall dimensions to confirm a good fit! Let us know if you have any additional questions.

Home Owner from FL

Sep 21, 2023 11:44 am

Thank you. The 2 bar hinge set has both bottom and top hinges, right?

Lauren from SWISCO

Sep 21, 2023 12:24 pm

Yes, it comes with the top and bottom. Both will need to be changed out at the same time.
